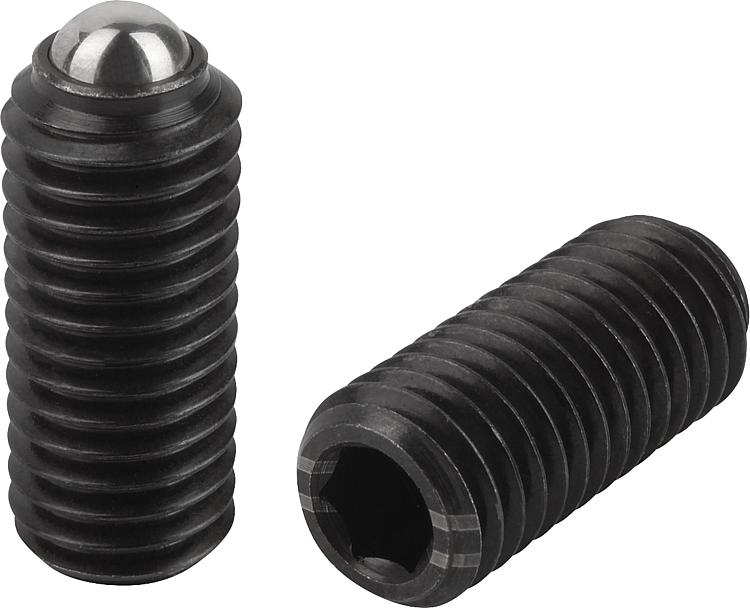

K0315_VFSpring plungers with hexagon socket and ball, steel, strong... |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Sleeve steel grade 5.8.
Ball steel.
Spring grade D steel wire.Version:Black oxidised. Ball hardened. DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Order No.
| D | D1 | H | L | S | Spring force
initial pressure
F1 approx. N | Spring force
final pressure
F2 approx. N | CAD | Acc. | Price | Order |
|---|
| K0315.203 | M3 | 1,5 | 0,4 | 9 | 1,5 | 5 | 7 | | | on request | | | K0315.204 | M4 | 2,5 | 0,8 | 10 | 2 | 12 | 22 | | | on request | | | K0315.205 | M5 | 3 | 0,9 | 14 | 2,5 | 19 | 30 | | | on request | | | K0315.206 | M6 | 3,5 | 1 | 15 | 3 | 28 | 40 | | | on request | | | K0315.208 | M8 | 5 | 1,5 | 18 | 4 | 47 | 73 | | | on request | | | K0315.210 | M10 | 6 | 2 | 23 | 5 | 66 | 100 | | | on request | | | K0315.212 | M12 | 8 | 2,5 | 26 | 6 | 66 | 120 | | | on request | | | K0315.216 | M16 | 10 | 3,5 | 33 | 8 | 90 | 180 | | | on request | | | K0315.220 | M20 | 12 | 4,5 | 43 | 10 | 115 | 240 | | | on request | | | K0315.224 | M24 | 15 | 5,5 | 48 | 12 | 130 | 270 | | | on request | |
