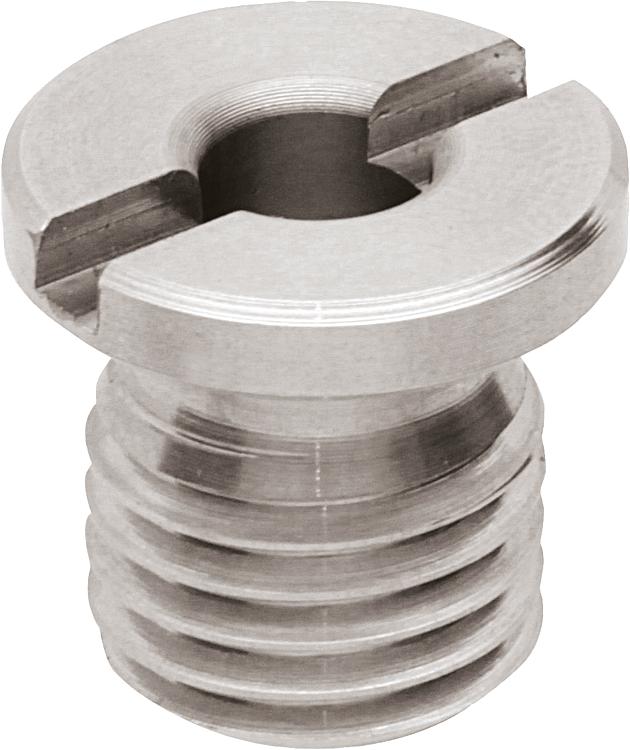

Item description/product images |
|
|

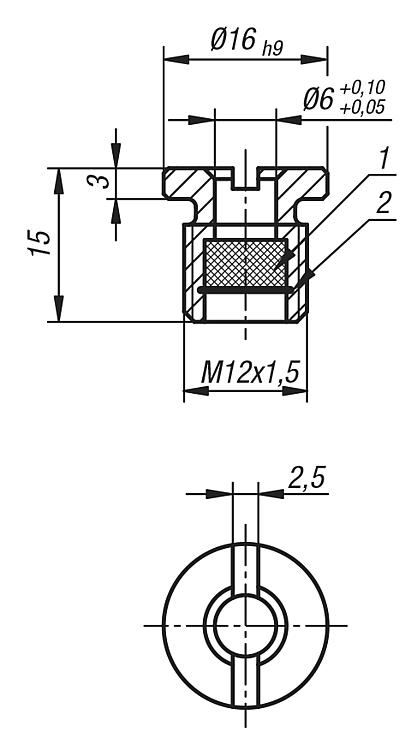

DescriptionMaterial:Housing stainless steel.
Magnet neodymium.Version:Housing bright.Note:A magnet in the bush attracts the pin (K1069) and holds it with the specified retaining force.

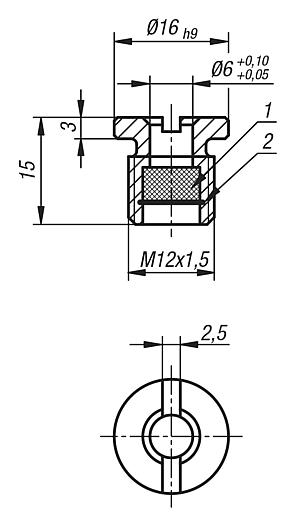

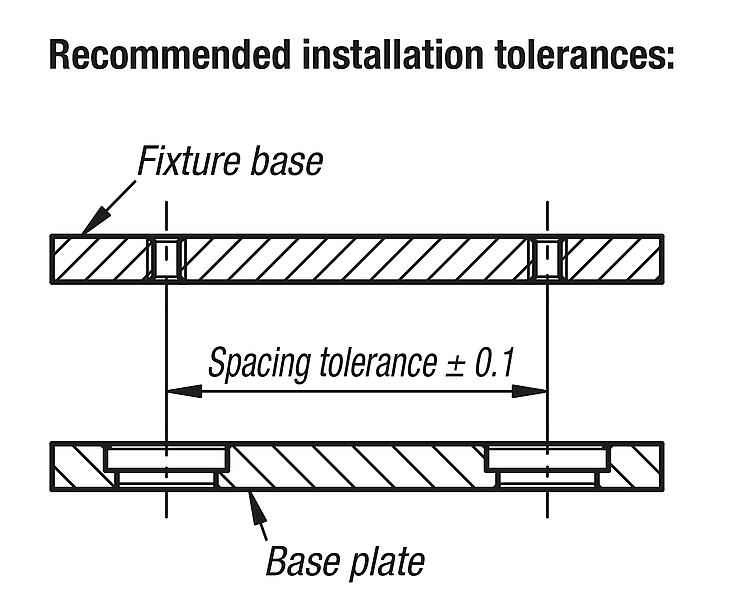

Repeat accuracy ± 0.25. The repeat accuracy can be increased with the aid of additional locating pins.

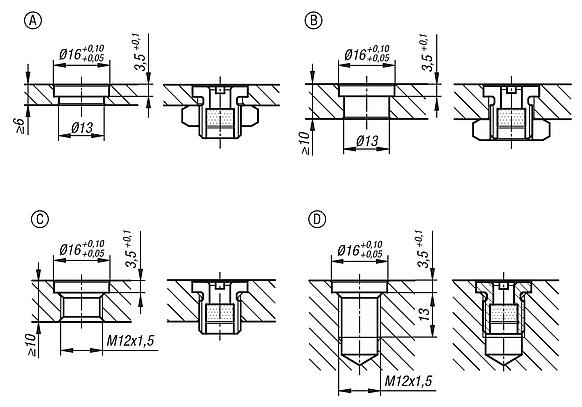

Installation dimensions for Form A:
min. plate thickness 6 mm.
Installation dimensions for Form B:
max. plate thickness 10 mm.
Installation dimensions for Form C:
plate thickness > 10 mm.
Installation dimensions for Form D:
blind hole.On request:Suitable nuts.Accessory:Pin K1069Drawing reference:Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | Clamping force
N | Shearing force
kN | Temperature
resistance
| CAD | Acc. | Price | Order |
|---|
| K1068.6 | 7 | 0,8 | ≤80 °C |  | | on request | |
