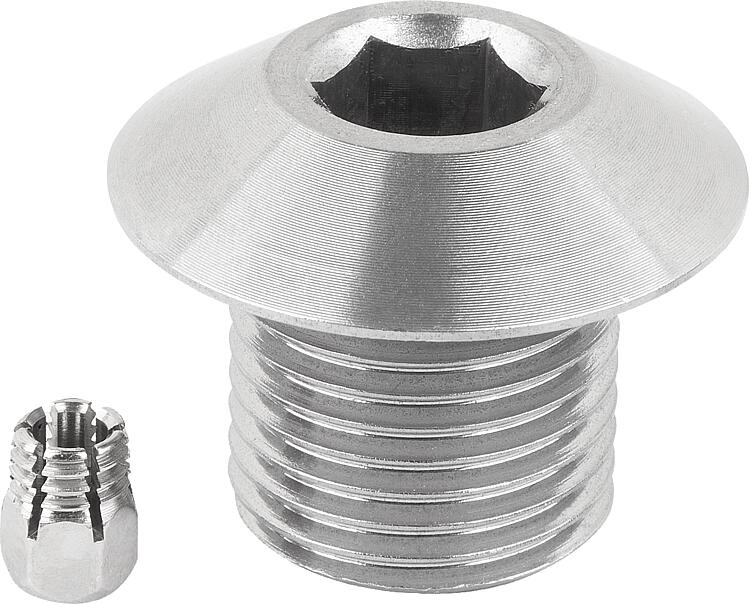

        Positioning bushes, steel or stainless steel for status sensor, Form C, with thread and approach taper

Item description/product images

DescriptionProduct description:Positioning bushes form a locating point for pin type operating and indexing elements and enable these to be securely and precisely engaged herein.

The positioning bushes for status sensor have a locknut for installing a Ø3 mm sensor into the bush.
The sensor enables electronic feedback as to whether a pin is located in the positioning bush or not.
When using several bushes, it can be determined in which one an operating or indexing element is located.Material:

Positioning bush steel or stainless steel 1.4034.
Locknut brass.

Version:Positioning bush:
Hardened and black oxidised steel.
Hardened, bright stainless steel.

Locknut nickel-plated.Note:Matched to mounting bracket K0638.
The locknut is supplied loose.
Max. tightening torque for the locknut: 1.2 Nm.Application:Positioning bushes in conjunction with a status sensor enable actuation-dependent process control. In addition, it can be determined whether the operating or indexing element is in the desired position.
For example, by the format adjustment on packaging machines.Assembly:The sensor is fastened into the bush using the locknut and then adjusted axially. The locknut is tightened to fixate the sensor in the final position.

The detailed procedure is described in the installation instructions.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K1840_C Positioning bushes, steel or stainless steel for status sensor, Form C, with thread and approach taper

545 kB

Mounting instructions - positioning or locating bushes with/for status sensor

56,8 kB

Drawings

Item selection/filter

Order No.	Form	Form definition	Main material	D	D1	D2	D3	H	H1	H2	H3	T	SW1	SW2	Price
K1840.304121	C	with thread and approach taper	steel	4	M12x1,5	19	3	16	12	10,5	4	11	4	5	on request
K1840.305121	C	with thread and approach taper	steel	5	M12x1,5	19	3	16	12	10,5	4	11	5	5	on request
K1840.306121	C	with thread and approach taper	steel	6	M12x1,5	19	3	16	12	10,5	4	11	6	5	on request
K1840.308161	C	with thread and approach taper	steel	8	M16x1,5	26	3	20	15	13,5	4	15,5	8	5	on request
K1840.310161	C	with thread and approach taper	steel	10	M16x1,5	26	3	20	15	13,5	4	15,5	10	5	on request
K1840.1304121	C	with thread and approach taper	stainless steel	4	M12x1,5	19	3	16	12	10,5	4	11	4	5	on request
K1840.1305121	C	with thread and approach taper	stainless steel	5	M12x1,5	19	3	16	12	10,5	4	11	5	5	on request
K1840.1306121	C	with thread and approach taper	stainless steel	6	M12x1,5	19	3	16	12	10,5	4	11	6	5	on request
K1840.1308161	C	with thread and approach taper	stainless steel	8	M16x1,5	26	3	20	15	13,5	4	15,5	8	5	on request
K1840.1310161	C	with thread and approach taper	stainless steel	10	M16x1,5	26	3	20	15	13,5	4	15,5	10	5	on request
