      - Snap locks, plastic with recessed grip, snap-in

Item description/product images

Show/filter all items

DescriptionMaterial:

Lock ABS.
Spring stainless steel 1.4310.

Version:Lock black.
Spring bright.Note:These snap locks are designed for flush installation in doors, hatches and covers.
Available in two different sizes for different door leaf thicknesses. Additional security with lockable variants. The locks on the lockable snap locks have a single key system, i.e. all locks can be opened with the same key.

Flammability rating: listed UL94-HB.

Form A: lockable
Form B: not lockableType of operation:Form A: By turning the key and then pushing the handle, the lock is moved to the open position and the door can be opened. When the door is pushed to, a spring automatically latches it shut. The cylinder lock provides additional security.

Form B: When the grip is pressed down, the latch retracts and the door can be opened.
When the door is pushed to, a spring automatically latches it shut.Application:- Automobile industry
- Medical technology
- Machine construction
- Equipment construction

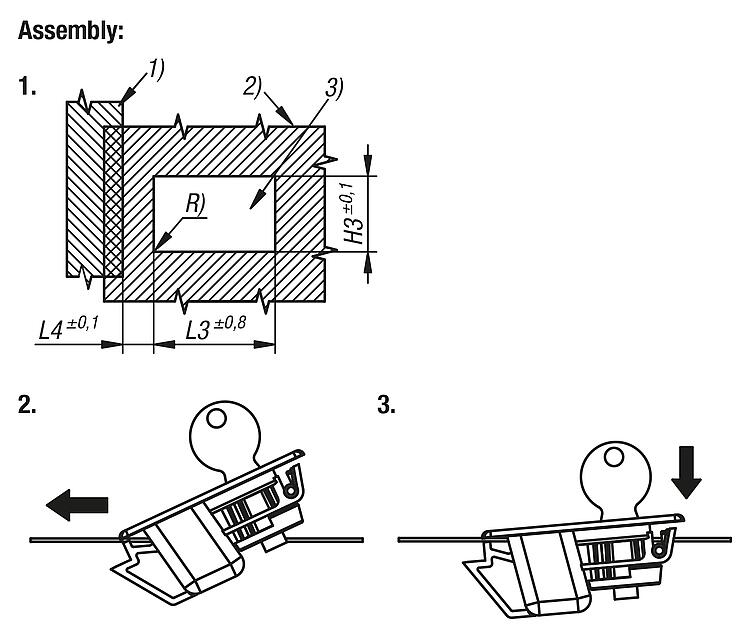

- Industrial control cabinetsAssembly:1. Produce a burr-free mounting cutout as shown in the drawing.
2. Insert the lock into the cutout from the front and push forwards.

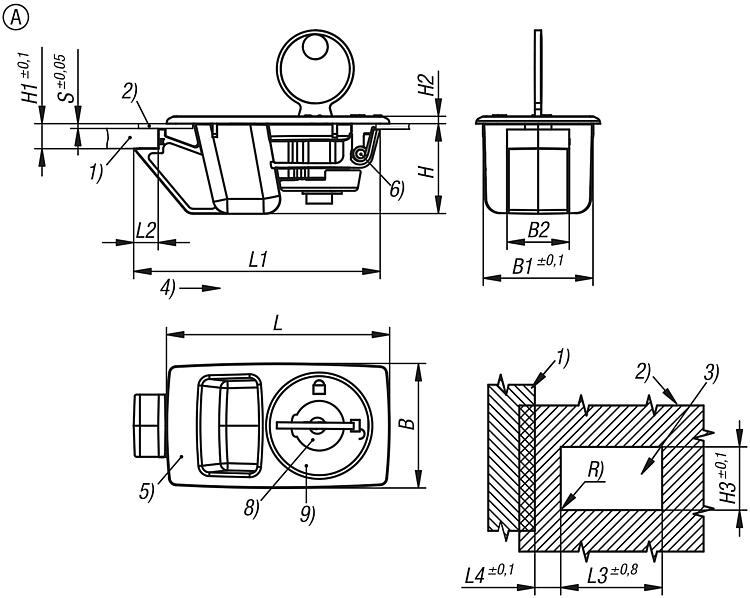

3. Press the lock down to clip in.Supplied withThe lockable snap locks are each supplied with 2 keys.Drawing reference:

1) Frame
2) Door leaf
3) Mounting cutout
4) Actuation direction
5) Lock
6) Spring
7) Cover cap (Form B)
8) Cylinder lock (Form A)
9) Display (Form A)

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K2011 Snap locks, plastic with recessed grip, snap-in

375 kB

Drawings (total overview)

Snap locks, plastic with recessed grip, snap-in, Form A, lockable

More information

Drawings

Snap locks, plastic with recessed grip, snap-in, Form A, lockable

Item selection/filter

Order No.	Form	Form definition	B	B1	B2	H	H1 = Total holding area	H2	H3	L	L1	L2	L3	L4	R	S = Door thickness in mm	Temperature range °C	CAD	Acc.	Price	Order
K2011.10926340	A	lockable	34	30,2	17	24,6	6,7	2	30,5	61	67,4	6,7	49	12,5	max. 0,25	0,9-1,2	-40 to 60			on request
K2011.11326340	A	lockable	34	30,2	17	24,6	6,7	2	30,5	61	67,4	6,7	49	12,5	max. 0,25	1,3-1,6	-40 to 60			on request

Snap locks, plastic with recessed grip, snap-in, Form B, not lockable

More information

Drawings

Snap locks, plastic with recessed grip, snap-in, Form B, not lockable

Item selection/filter

Order No.	Form	Form definition	B	B1	B2	H	H1 = Total holding area	H2	H3	L	L1	L2	L3	L4	R	S = Door thickness in mm	Temperature range °C	CAD	Acc.	Price	Order
K2011.00926340	B	not lockable	34	30,2	17	24,6	6,7	2	30,5	61	67,4	6,7	49	12,5	max. 0,25	0,9-1,2	-40 to 60			on request
K2011.01326340	B	not lockable	34	30,2	17	24,6	6,7	2	30,5	61	67,4	6,7	49	12,5	max. 0,25	1,3-1,6	-40 to 60			on request
