Spring plungers with detent ring
K0582

Spring plungers with detent ring

go back

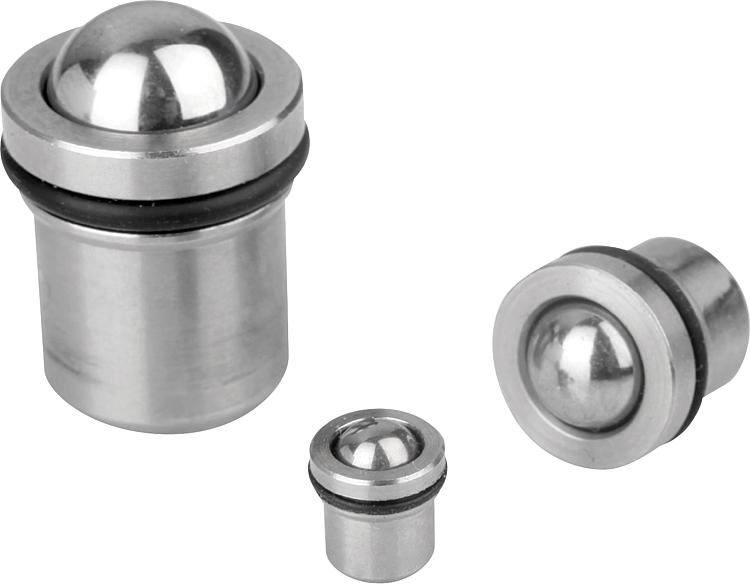

Item description/product images

DescriptionMaterial:Sleeve, spring and ball in stainless steel.
O-ring NBR.
Version:Sleeve bright.
Ball hardened, bright.
O-ring black.

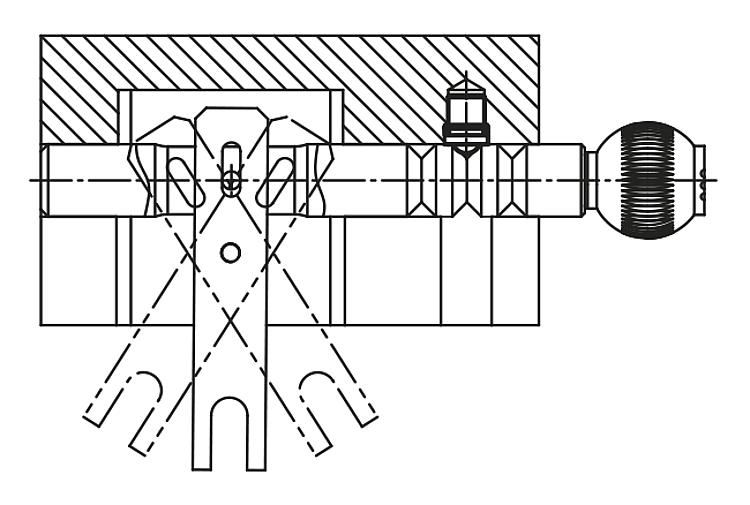

Note:These spring plungers with O-ring are suitable for overhead installation or for installing in difficult to access positions.

They can be pressed into the location hole by hand or using simple assembly tools. The O-ring holds the plunger in place and prevents it falling out. Other components can be easily installed without the need for further assembly aids.
Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet K0582 Spring plungers with detent ring 123 kB

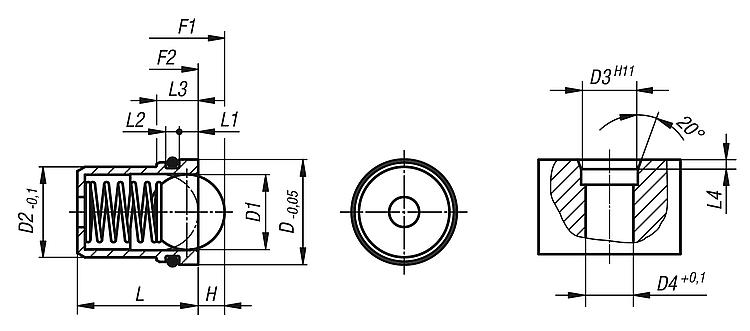

Drawings

Spring plungers with detent ring

Item selection/filter

Order No.

DD1D2D3D4HLL1L2L3L4Spring force
initial pressure
F1 approx. N
Spring force
final pressure
F2 approx. N
CADAcc.PriceOrder
K0582.054,953454,10,8510,72,30,737 on request
K0582.065,954565,11610,72,30,747 on request
K0582.087,955686,11,571,51,23,71612 on request
K0582.109,956,58108,11,8921,24,21,5612 on request
K0582.1211,958101210,12,713,52,51,85,321020 on request
K0582.1413,9510121412,13,5162,51,85,521525 on request
