Bullseye levels with bead-edged frame

Bullseye levels with bead-edged frame

go back

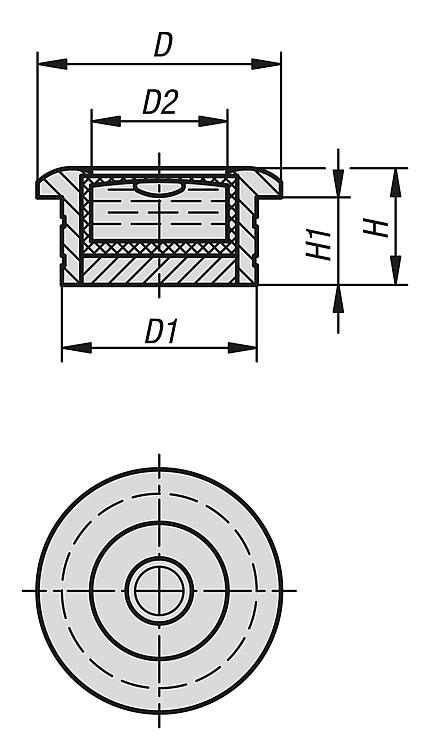

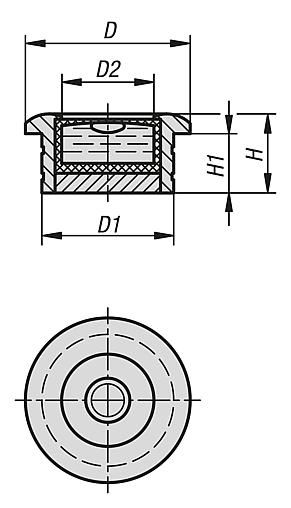

Item description/product images

DescriptionMaterial:Frame brass.
Bullseye level body polyamide.
Version:Nickel-plated and high-gloss polished.Note:Bubble levels are used as a type of zero indicator instrument for checking horizontal inclination in e.g. spirit levels, inclinometers, metrology instruments and machine constructions.
- Sensitivity in angular minutes for 2 mm bubble travel
- The bullseye level is calibrated to underside of the flange
- Bead edge with serrations for recessing
- Clear filling
- Black contrast ring
- White level base
Temperature range:-35 °C up to +55 °C.Special features:
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet K1152 Bullseye levels with bead-edged frame 184 kB


Bullseye levels with bead-edged frame

Item selection/filter

Order No.D

K1152.18103020181210830' on request
K1152.20123025201412930' on request
K1152.281330302820131030' on request
