Quarter-turn clamp locks, grip plastic or stainless steel
K1061

Quarter-turn clamp locks, grip plastic or stainless steel

go back

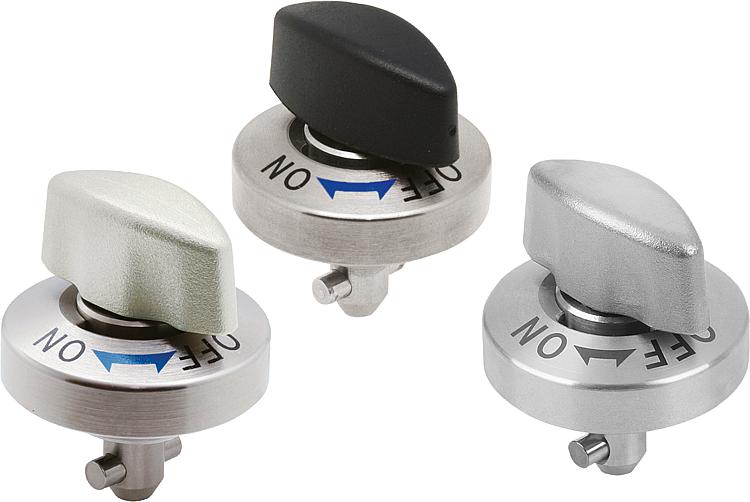

Item description/product images

DescriptionMaterial:Housing steel.
Pin stainless steel.
Knob stainless steel or thermoplastic PA (polyamide).
Version:Housing nickel-plated.
Pin bright.
Knob reinforced PA fibreglass, black.
Knob stainless steel, bright.
Note:M2 or M3 mounting screws are supplied.
Form A mounting option for plate thickness 6 or 12 mm.
Form B mounting option for plate thickness 12 to 20 mm.

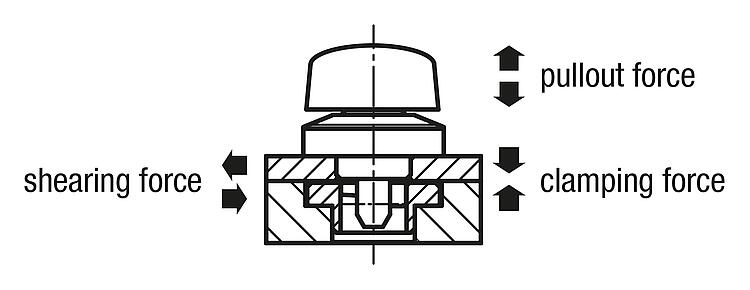

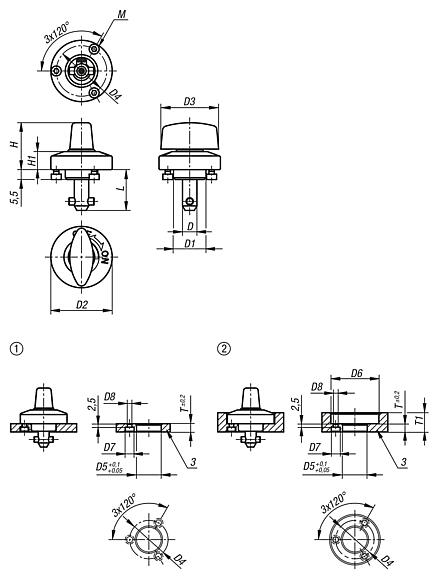

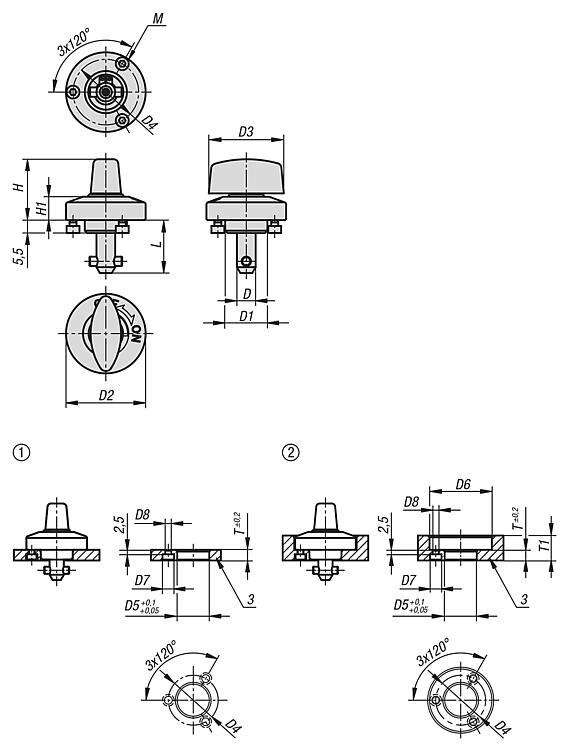

Accessory:Clamping plates K1062Drawing reference:
1) plate
Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet K1061 Quarter-turn clamp locks grip plastic or stainless steel 234 kB
 Technical information 229 kB

Drawings (total overview)

Quarter-turn clamp locks, grip plastic or stainless steel

Quarter-turn clamp locks, grip plastic

More information

Drawings

Quarter-turn clamp locks, grip plastic

Item selection/filter

Order No.Component
material
DLD1D2D3D4HH1MD5D6D7D8TT1Clamping force
N
Shearing force
kN
Pullout force
kN
Temp.
resistance
up to
CADAcc.PriceOrder
K1061.516Plastic515,514252021196,5M2x314264,42,466-10601,81,2130 °C on request
K1061.817Plastic817183432282610M3x418356,53,466-14903,22,6130 °C on request
K1061.823Plastic823183432282610M3x418356,53,41212-20903,22,6130 °C on request

Quarter-turn clamp locks
grip stainless steel

More information

Drawings

Quarter-turn clamp locks grip stainless steel

Item selection/filter

Order No.Component
material
DLD1D2D3D4HH1MD5D6D7D8TT1Clamping force
N
Shearing force
kN
Pullout force
kN
Temp.
resistance
up to
CADAcc.PriceOrder
K1061.5161Stainless steel515,514252021196,5M2x314264,42,466-10601,81,2200 °C on request
K1061.8171Stainless steel8171834322825,510M3x418356,53,466-14903,22,6200 °C on request
K1061.8231Stainless steel8231834322825,510M3x418356,53,41212-20903,22,6200 °C on request
