Quick-fit couplings with radial offset compensation and mounting flange
K0710

Quick-fit couplings with radial offset compensation and...

go back

Item description/product images

DescriptionMaterial:Coupling part and steel flange.
Nut (DIN 439), grade 8.8.
Version:Coupling part and flange tempered and phosphated.
Nut black oxidised.
Note:

Space saving quick-fit couplings with radial offset compensation suitable for multiple applications, e.g. as a link between a piston rod and a linear-movement unit. Assembly and disassembly of this simple, solid and two-part coupling is with a T-slot, a manual re-adjustment is not necessary. The quick-fit coupling can be linked to all commonly used pneumatic and hydraulic lifting cylinders via the connecting thread.

The quick-fit coupling does not transmit any torque.

Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet K0710 Quick-fit couplings with radial offset compensation and mounting flange 228 kB

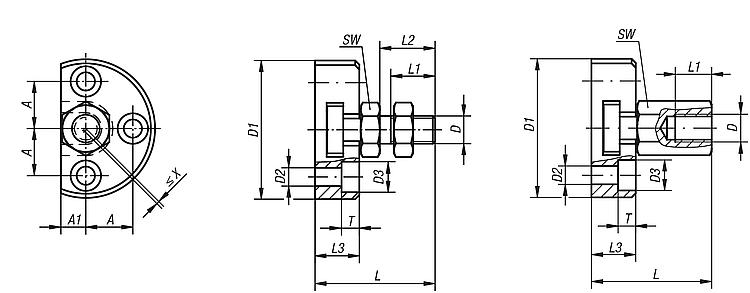

Drawings
