K0310_VF
Spring plungers with slot and ball, stainless steel, strong...
go back
Products
Operating parts | standard elements
Spring plungers, indexing plungers, ball lock pins
Spring plungers
Spring plungers with slot and ball, stainless steel

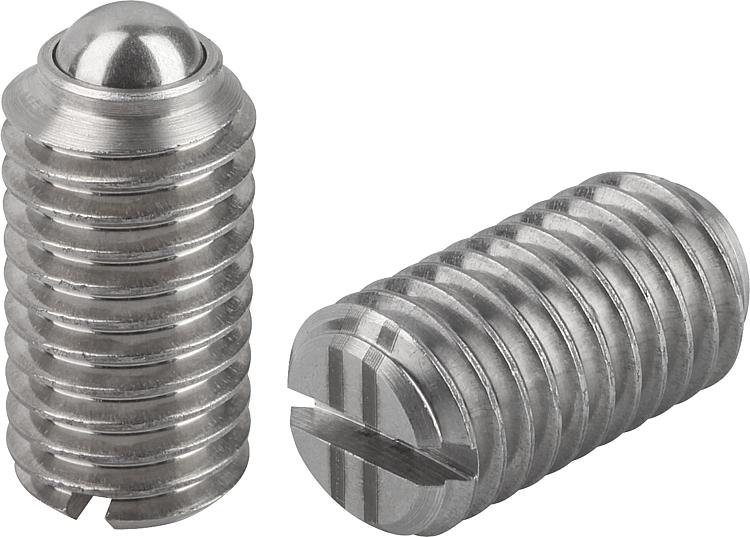

Spring plungers with slot and ball, stainless steel, strong spring force
Item description/product images
Description
Material:
Sleeve 1.4305.
Ball 1.4034.
Spring 1.4310.
Version:
Bright. Ball hardened.
Special features:
Download
Here is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
Datasheet K0310_VF Spring plungers with slot and ball, strong spring force
209 kB
Drawings
Item selection/filter
Order No.
D
D1
L
H
N
Spring force
initial pressure
F1 approx. N
Spring force
final pressure
F2 approx. N
CAD
Acc.
Price
Order
K0310.203
M3
1,5
7
0,4
0,4
5
7
0.00
€
K0310.204
M4
2,5
9
0,8
0,6
12
22
0.00
€
K0310.205
M5
3
12
0,9
0,8
19
30
0.00
€
K0310.206
M6
3,5
14
1
1
28
40
0.00
€
K0310.208
M8
5
16
1,5
1,2
47
73
0.00
€
K0310.210
M10
6
19
2
1,6
66
100
0.00
€
K0310.212
M12
8
22
2,5
2
66
120
0.00
€
K0310.216
M16
10
24
3,5
2,5
90
180
0.00
€
K0310.220
M20
12
30
4,5
2,5
115
240
0.00
€
Other items in this category
K0310_SF
Spring plungers with slot and ball, stainless steel, standard spring force
K0310_SFLA
Spring plungers with slot and ball, stainless steel, long version, standard spring force
Search
My
ACCOUNT
E-mail
Password
Forgotten password?
I'm new to this site
Shopping cart
Number of items:
0
Amount:
0.00
€
Display
Speed ordering
Go to order form
Availability
Here you can check item's availability.
Availability check
PRODUCT LINES
The KIPP product lines offer the perfect solution for every application area.
more...
Order No. changeover
Here you get more information to our part number restructuring
more...
Thrust pads
Pressure pads have clamping properties for locking and arresting assemblies. Locking bolts and ball locking pins allow a component to be locked and engaged. Partly with manual unlocking function. Ideal for assembly construction.
more...
Argentina
Australia
België
Bolivia
Bosna i Hercegovina
Brasil
Cameroun
Canada
Česká republika
Chile
中国
Colombia
Cuba
Danmark
Dem. Peop. Rep. of Korea
Deutschland
Ecuador
Eesti
España
France
香港
Hrvatska
India
Ireland
Ísland
Italia
日本
Latvija
Liechtenstein
Lietuvos
Luxemburg
Magyarország
Malta
México
Nederland
New Zealand
Norge
Österreich
Pakistan
Paraguay
Perú
Polska
Portugal
Principauté de Monaco
台灣
대한민국
România
Schweiz
Singapore
Slovenija
Slovensko
South Africa
Status Civitatis Vaticanæ
Suomi
Sverige
Türkiye
United Kingdom
United States of America
Uruguay
Venezuela
Việt Nam
Ελλάδα
Κύπρος
Беларусь
България
Македонија
Република Србија
Србија и Црна Гора
Україна
ישראל
الامارات العربية المتحدة
السعودية
ايران
مصر
ประเทศไทย
Deutsch
English
Sitemap
Print
Top
Copyright © 2025 HEINRICH KIPP WERK GmbH & Co. KG · All rights reserved.
Phone +49 (0) 74 54 / 793-0 · Fax +49 (0) 74 54 / 793-33
