K0326Spring plungers with hex socket and ball, stainless steel, with... |
go back |
|
|
DescriptionMaterial:Sleeve 1.4305.
Ball 1.4034.
Spring 1.4310.

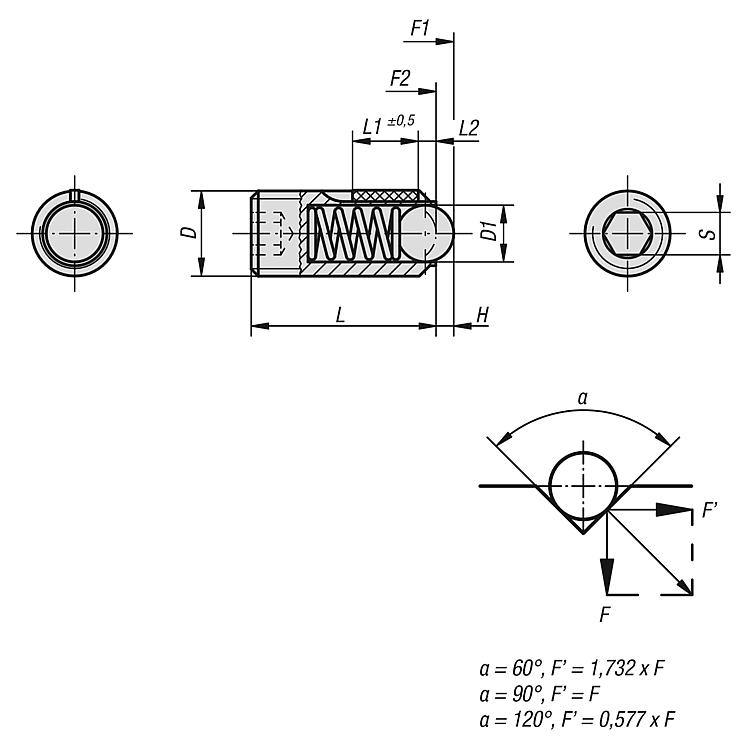

Thread lock nylon. Version:Bright. Ball hardened.Drawing reference:L2 = approx. 2x thread pitch DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Drawings (total overview) |
Spring plungers with hexagon socket and ball, stainless steel, standard spring force, with thread lock |
More information |
Order No.
| D | D1 | H | L | L1 | S | Spring force
initial pressure
F1 approx. N | Spring force
final pressure
F2 approx. N | Tightening
torque
approx. Nm | Loosening torque
approx. Nm | CAD | Acc. | Price | Order |
|---|
| K0326.03 | M3 | 1,5 | 0,4 | 9 | 4 | 1,5 | 1,5 | 3 | 0,1 | 0,07 | | | 0.00 € | | | K0326.04 | M4 | 2,5 | 0,8 | 10 | 5 | 2 | 4 | 10 | 0,18 | 0,12 | | | 0.00 € | | | K0326.05 | M5 | 3 | 0,9 | 14 | 6 | 2,5 | 6 | 11 | 0,12 | 0,08 | | | 0.00 € | | | K0326.06 | M6 | 3,5 | 1 | 15 | 7 | 3 | 9 | 13 | 0,44 | 0,21 | | | 0.00 € | | | K0326.08 | M8 | 5 | 1,5 | 18 | 8 | 4 | 15 | 30 | 1,1 | 0,38 | | | 0.00 € | | | K0326.10 | M10 | 6 | 2 | 23 | 9 | 5 | 20 | 35 | 1,3 | 0,6 | | | 0.00 € | | | K0326.12 | M12 | 8 | 2,5 | 26 | 10 | 6 | 30 | 55 | 2 | 1,3 | | | 0.00 € | | | K0326.16 | M16 | 10 | 3,5 | 33 | 14 | 8 | 65 | 125 | 3,9 | 3 | | | 0.00 € | |
|
Spring plungers with hex socket and ball, stainless steel, heavy spring force, with thread lock |
More information |
Order No.
| D | D1 | H | L | L1 | S | Spring force
initial pressure
F1 approx. N | Spring force
final pressure
F2 approx. N | Tightening
torque
approx. Nm | Loosening torque
approx. Nm | CAD | Acc. | Price | Order |
|---|
| K0326.203 | M3 | 1,5 | 0,4 | 9 | 4 | 1,5 | 5 | 7 | 0,1 | 0,07 |  | | 0.00 € | | | K0326.204 | M4 | 2,5 | 0,8 | 10 | 5 | 2 | 12 | 22 | 0,18 | 0,12 | | | 0.00 € | | | K0326.205 | M5 | 3 | 0,9 | 14 | 6 | 2,5 | 19 | 30 | 0,12 | 0,08 | | | 0.00 € | | | K0326.206 | M6 | 3,5 | 1 | 15 | 7 | 3 | 28 | 40 | 0,44 | 0,21 | | | 0.00 € | | | K0326.208 | M8 | 5 | 1,5 | 18 | 8 | 4 | 47 | 73 | 1,1 | 0,38 | | | 0.00 € | | | K0326.210 | M10 | 6 | 2 | 23 | 9 | 5 | 66 | 100 | 1,3 | 0,6 | | | 0.00 € | | | K0326.212 | M12 | 8 | 2,5 | 26 | 10 | 6 | 66 | 120 | 2 | 1,3 | | | 0.00 € | | | K0326.216 | M16 | 10 | 3,5 | 33 | 14 | 8 | 90 | 180 | 3,9 | 3 | | | 0.00 € | |
|
