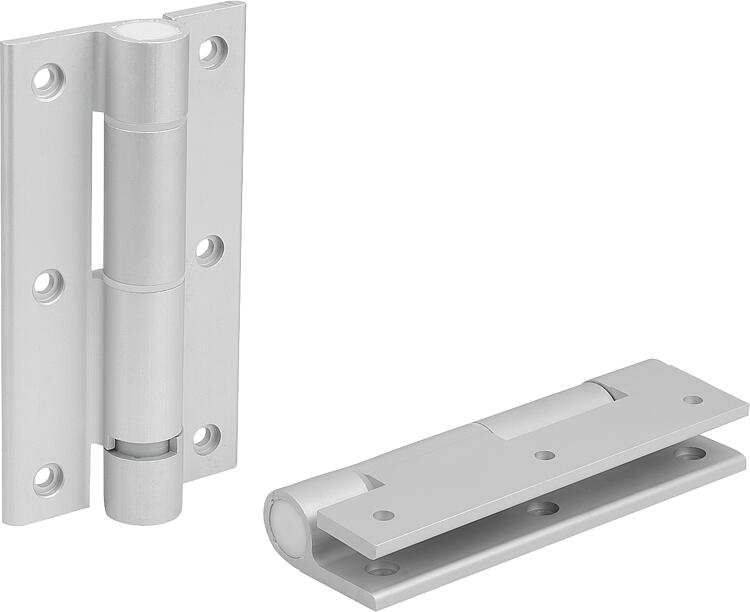

Spring hinges aluminium profile with damping

go back

Products
- Operating parts | standard elements
  - Hinges
    - Spring hinges aluminium profile with damping

Item description/product images

DescriptionMaterial:Aluminium 6082 T5.Version:Aluminium, transparent anodised.Note:These hinges have integrated damping. This enables doors and hatches to be gently opened (Form A) and closed (Form B). In addition, the hinges are equipped with a lift-assist mechanism that facilitates opening doors and hatches.
The hinges are suitable for horizontal and vertical applications.
The direction of the damper is indicated by the arrow in the drawing.
The opening angle is limited to 115° to avoid damaging the damping system.

A faster opening or closing of the doors or hatches must not be forced, as this can damage the damper.
Damping torque from 1.7 to 2.5 Nm.
The spring torque varies depending on the item.:
Opening spring torgue for K2330.8215000: M(180°) : 2.7 Nm / M(65°) : 3.69 Nm.
Opening spring torgue for K2330.8215001: M(180°) : 1.45 Nm / M(65°) : 2.29 Nm.
Closing spring torgue for K2330.8215010: M(0°) : 2.68 Nm / M(115°) : 3.65 Nm.
Closing sppring torgue for K2330.8215011: M(0°) : 1.45 Nm / M(115°): 2.28 Nm.Temperature range:from 0 °C to +40 °C.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K2330 Spring hinges aluminium profile with damping

136 kB

Drawings (total overview)

Spring hinges aluminium profile with damping, Form A

More information

Drawings

Item selection/filter

Order No.	Version 1	Version 2	Form	Form definition	A	A1	B	B1	D	D1	F1 N	F2 N	S	CAD	Acc.	Price	Order
K2330.8215000	spring open	horizontal use	A	soft opening	82,5	56,5	150	62	6,2	10,2	8000	16000	5,5			0.00 €
K2330.8215001	spring open	vertical use	A	soft opening	82,5	56,5	150	62	6,2	10,2	8000	16000	5,5			0.00 €

Spring hinges aluminium profile with damping, Form B

More information

Drawings

Item selection/filter

Order No.	Version 1	Version 2	Form	Form definition	A	A1	B	B1	D	D1	F1 N	F2 N	S	CAD	Acc.	Price	Order
K2330.8215010	spring closed	horizontal use	B	soft closing	82,5	56,5	150	62	6,2	10,2	8000	16000	5,5			0.00 €
K2330.8215011	spring closed	vertical use	B	soft closing	82,5	56,5	150	62	6,2	10,2	8000	16000	5,5			0.00 €
