K1142Block hinges with fastening nuts |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Steel.
Stainless steel 1.4305.
Stainless steel A4 1.4401. Version:Steel electro zinc-plated.
Stainless steel bright.Note:Block hinges with fastening nuts for overlapping or inset doors.

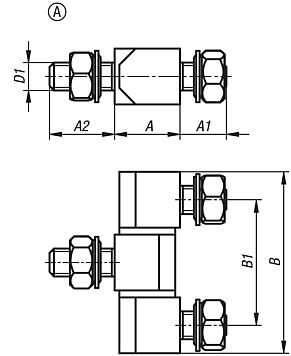

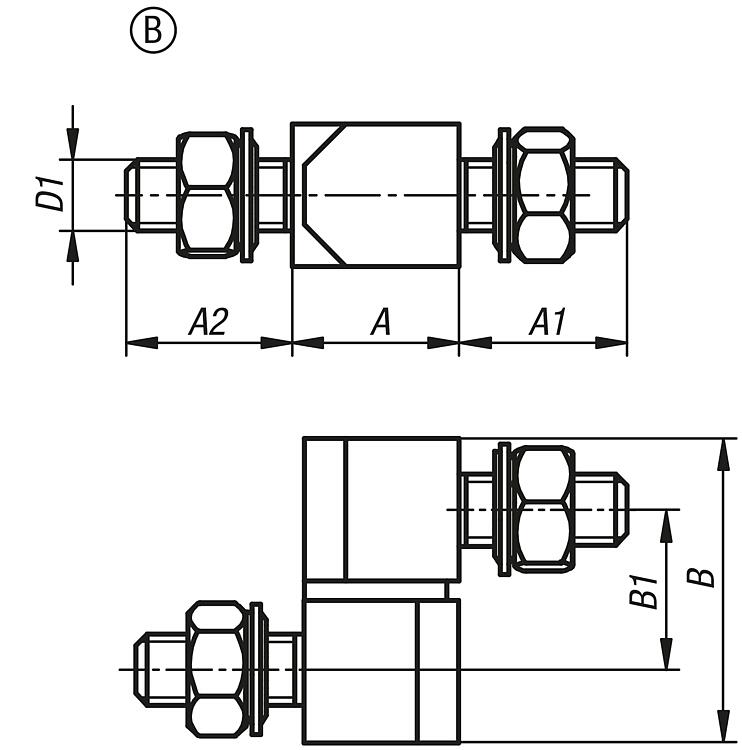

Mounted with nuts (M6 or M8) from inside. The 3-part versions are not detachable.
The hinge can be used left or right. The opening angle is 180°. Supplied unassembled.
Fastening nuts and washers are supplied. DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

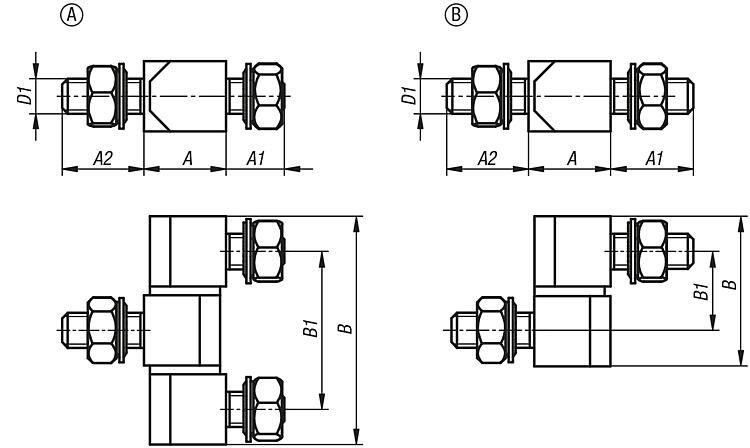

Drawings (total overview) |
