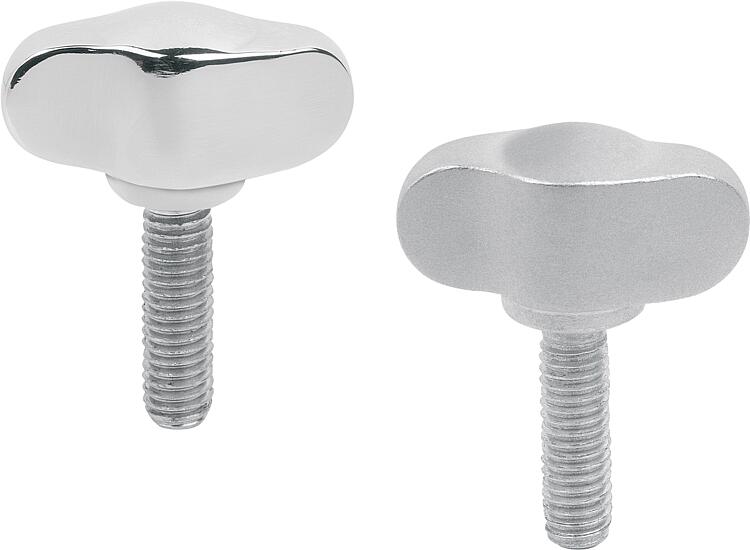

K2041_LWing grips "Miniwing", stainless steel, Form L, external thread |
go back |
|
Item description/product images |
|
|
DescriptionProduct description:The Miniwing wing grips is characterised by their ergonomic and compact design.
The materials used enable diverse applications including those with the highest demands on corrosion resistance.Material:Stainless steel 1.4308 or 1.4404. Version:Polished or blasted.Note:The M5 thread is compatible with Hygienic USIT® sealing and shim washers K1491.Accessory:Hygienic USIT® sealing and shim washer K1491 for the screw-on surface. Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | Form | Steel
code | Surface finish
body | A | B | D
| D2 | H | H1 | H2 | L | CAD | Acc. | Price | Order |
|---|
| K2041.6280412X8 | L | 1.4308 | polished | 28 | 13 | M4 | 11,8 | 15 | 2,25 | 13,25 | 8 |  | | 0.00 € | | | K2041.6280512X10 | L | 1.4308 | polished | 28 | 13 | M5 | 11,8 | 15 | 2,25 | 13,25 | 10 | | | 0.00 € | | | K2041.6280512X15 | L | 1.4308 | polished | 28 | 13 | M5 | 11,8 | 15 | 2,25 | 13,25 | 15 | | | 0.00 € | | | K2041.6280512X20 | L | 1.4308 | polished | 28 | 13 | M5 | 11,8 | 15 | 2,25 | 13,25 | 20 | | | 0.00 € | | | K2041.6280612X10 | L | 1.4308 | polished | 28 | 13 | M6 | 11,8 | 15 | 2,25 | 13,25 | 10 | | | 0.00 € | | | K2041.6280612X15 | L | 1.4308 | polished | 28 | 13 | M6 | 11,8 | 15 | 2,25 | 13,25 | 15 | | | 0.00 € | | | K2041.6280612X20 | L | 1.4308 | polished | 28 | 13 | M6 | 11,8 | 15 | 2,25 | 13,25 | 20 | | | 0.00 € | | | K2041.6280612X25 | L | 1.4308 | polished | 28 | 13 | M6 | 11,8 | 15 | 2,25 | 13,25 | 25 | | | 0.00 € | | | K2041.6280612X30 | L | 1.4308 | polished | 28 | 13 | M6 | 11,8 | 15 | 2,25 | 13,25 | 30 | | | 0.00 € | | | K2041.6280812X20 | L | 1.4308 | polished | 28 | 13 | M8 | 11,8 | 15 | 2,25 | 13,25 | 20 | | | 0.00 € | | | K2041.6280812X25 | L | 1.4308 | polished | 28 | 13 | M8 | 11,8 | 15 | 2,25 | 13,25 | 25 | | | 0.00 € | | | K2041.6280812X30 | L | 1.4308 | polished | 28 | 13 | M8 | 11,8 | 15 | 2,25 | 13,25 | 30 | | | 0.00 € | | | K2041.6280812X40 | L | 1.4308 | polished | 28 | 13 | M8 | 11,8 | 15 | 2,25 | 13,25 | 40 | | | 0.00 € | | | K2041.6280411X8 | L | 1.4308 | blasted | 28 | 13 | M4 | 11,8 | 15 | 2,25 | 13,25 | 8 | | | 0.00 € | | | K2041.6280511X10 | L | 1.4308 | blasted | 28 | 13 | M5 | 11,8 | 15 | 2,25 | 13,25 | 10 | | | 0.00 € | | | K2041.6280511X15 | L | 1.4308 | blasted | 28 | 13 | M5 | 11,8 | 15 | 2,25 | 13,25 | 15 | | | 0.00 € | | | K2041.6280511X20 | L | 1.4308 | blasted | 28 | 13 | M5 | 11,8 | 15 | 2,25 | 13,25 | 20 | | | 0.00 € | | | K2041.6280611X10 | L | 1.4308 | blasted | 28 | 13 | M6 | 11,8 | 15 | 2,25 | 13,25 | 10 | | | 0.00 € | | | K2041.6280611X15 | L | 1.4308 | blasted | 28 | 13 | M6 | 11,8 | 15 | 2,25 | 13,25 | 15 | | | 0.00 € | | | K2041.6280611X20 | L | 1.4308 | blasted | 28 | 13 | M6 | 11,8 | 15 | 2,25 | 13,25 | 20 | | | 0.00 € | | | K2041.6280611X25 | L | 1.4308 | blasted | 28 | 13 | M6 | 11,8 | 15 | 2,25 | 13,25 | 25 | | | 0.00 € | | | K2041.6280611X30 | L | 1.4308 | blasted | 28 | 13 | M6 | 11,8 | 15 | 2,25 | 13,25 | 30 | | | 0.00 € | | | K2041.6280811X20 | L | 1.4308 | blasted | 28 | 13 | M8 | 11,8 | 15 | 2,25 | 13,25 | 20 | | | 0.00 € | | | K2041.6280811X25 | L | 1.4308 | blasted | 28 | 13 | M8 | 11,8 | 15 | 2,25 | 13,25 | 25 | | | 0.00 € | | | K2041.6280811X30 | L | 1.4308 | blasted | 28 | 13 | M8 | 11,8 | 15 | 2,25 | 13,25 | 30 | | | 0.00 € | | | K2041.6280811X40 | L | 1.4308 | blasted | 28 | 13 | M8 | 11,8 | 15 | 2,25 | 13,25 | 40 | | | 0.00 € | | | K2041.6280422X8 | L | 1.4404 | polished | 28 | 13 | M4 | 11,8 | 15 | 2,25 | 13,25 | 8 | | | 0.00 € | | | K2041.6280522X10 | L | 1.4404 | polished | 28 | 13 | M5 | 11,8 | 15 | 2,25 | 13,25 | 10 | | | 0.00 € | | | K2041.6280522X15 | L | 1.4404 | polished | 28 | 13 | M5 | 11,8 | 15 | 2,25 | 13,25 | 15 | | | 0.00 € | | | K2041.6280522X20 | L | 1.4404 | polished | 28 | 13 | M5 | 11,8 | 15 | 2,25 | 13,25 | 20 | | | 0.00 € | | | K2041.6280622X10 | L | 1.4404 | polished | 28 | 13 | M6 | 11,8 | 15 | 2,25 | 13,25 | 10 | | | 0.00 € | | | K2041.6280622X15 | L | 1.4404 | polished | 28 | 13 | M6 | 11,8 | 15 | 2,25 | 13,25 | 15 | | | 0.00 € | | | K2041.6280622X20 | L | 1.4404 | polished | 28 | 13 | M6 | 11,8 | 15 | 2,25 | 13,25 | 20 | | | 0.00 € | | | K2041.6280622X25 | L | 1.4404 | polished | 28 | 13 | M6 | 11,8 | 15 | 2,25 | 13,25 | 25 | | | 0.00 € | | | K2041.6280622X30 | L | 1.4404 | polished | 28 | 13 | M6 | 11,8 | 15 | 2,25 | 13,25 | 30 | | | 0.00 € | | | K2041.6280822X20 | L | 1.4404 | polished | 28 | 13 | M8 | 11,8 | 15 | 2,25 | 13,25 | 20 | | | 0.00 € | | | K2041.6280822X25 | L | 1.4404 | polished | 28 | 13 | M8 | 11,8 | 15 | 2,25 | 13,25 | 25 | | | 0.00 € | | | K2041.6280822X30 | L | 1.4404 | polished | 28 | 13 | M8 | 11,8 | 15 | 2,25 | 13,25 | 30 | | | 0.00 € | | | K2041.6280822X40 | L | 1.4404 | polished | 28 | 13 | M8 | 11,8 | 15 | 2,25 | 13,25 | 40 | | | 0.00 € | | | K2041.6280421X8 | L | 1.4404 | blasted | 28 | 13 | M4 | 11,8 | 15 | 2,25 | 13,25 | 8 | | | 0.00 € | | | K2041.6280521X10 | L | 1.4404 | blasted | 28 | 13 | M5 | 11,8 | 15 | 2,25 | 13,25 | 10 | | | 0.00 € | | | K2041.6280521X15 | L | 1.4404 | blasted | 28 | 13 | M5 | 11,8 | 15 | 2,25 | 13,25 | 15 | | | 0.00 € | | | K2041.6280521X20 | L | 1.4404 | blasted | 28 | 13 | M5 | 11,8 | 15 | 2,25 | 13,25 | 20 | | | 0.00 € | | | K2041.6280621X10 | L | 1.4404 | blasted | 28 | 13 | M6 | 11,8 | 15 | 2,25 | 13,25 | 10 | | | 0.00 € | | | K2041.6280621X15 | L | 1.4404 | blasted | 28 | 13 | M6 | 11,8 | 15 | 2,25 | 13,25 | 15 | | | 0.00 € | | | K2041.6280621X20 | L | 1.4404 | blasted | 28 | 13 | M6 | 11,8 | 15 | 2,25 | 13,25 | 20 | | | 0.00 € | | | K2041.6280621X25 | L | 1.4404 | blasted | 28 | 13 | M6 | 11,8 | 15 | 2,25 | 13,25 | 25 | | | 0.00 € | | | K2041.6280621X30 | L | 1.4404 | blasted | 28 | 13 | M6 | 11,8 | 15 | 2,25 | 13,25 | 30 | | | 0.00 € | | | K2041.6280821X20 | L | 1.4404 | blasted | 28 | 13 | M8 | 11,8 | 15 | 2,25 | 13,25 | 20 | | | 0.00 € | | | K2041.6280821X25 | L | 1.4404 | blasted | 28 | 13 | M8 | 11,8 | 15 | 2,25 | 13,25 | 25 | | | 0.00 € | | | K2041.6280821X30 | L | 1.4404 | blasted | 28 | 13 | M8 | 11,8 | 15 | 2,25 | 13,25 | 30 | | | 0.00 € | | | K2041.6280821X40 | L | 1.4404 | blasted | 28 | 13 | M8 | 11,8 | 15 | 2,25 | 13,25 | 40 | | | 0.00 € | |
