K0150

Star grips stainless steel, similar to DIN 6336

Item description/product images

DescriptionMaterial:

Stainless steel 1.4308.
Grub screw stainless steel 1.4305.
Pin stainless steel 1.4310.

Version:Ground and polished or blasted.
Grub screw and pin bright.Drawing reference:

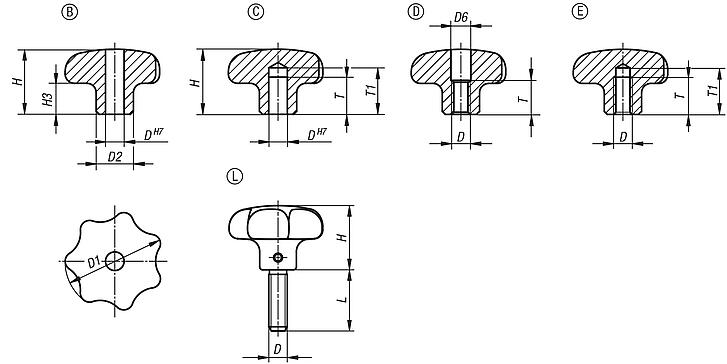

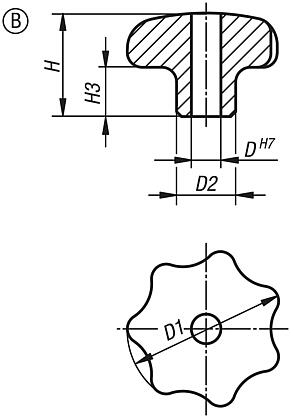

Form B: drilled through
Form C: blind hole

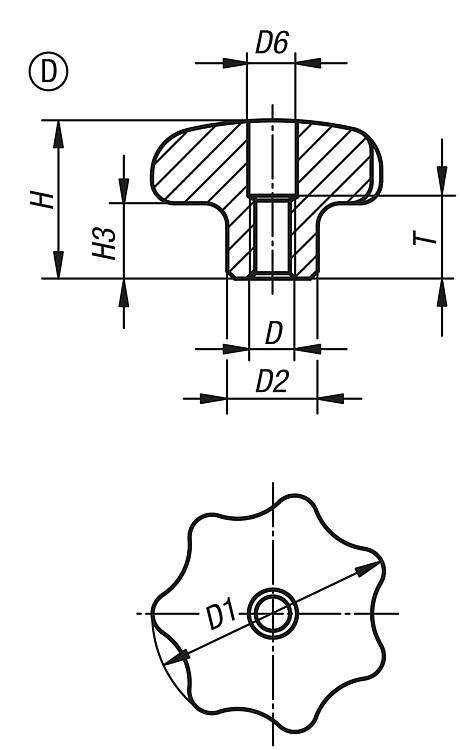

Form D: tapped and counterbored

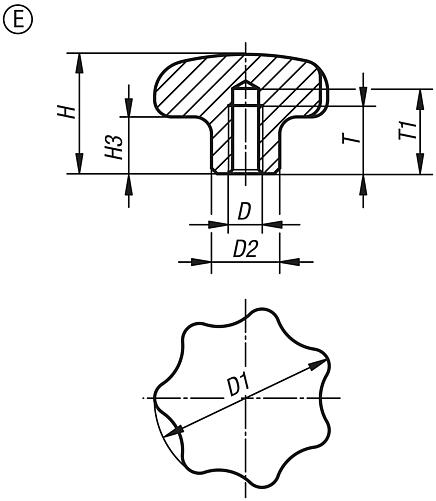

Form E: tapped blind hole

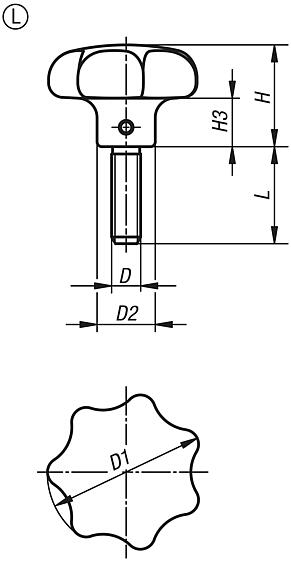

Form L: external thread

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Order No.	Form	Surface finish body	D	D1	D2	H	H3
K0150.232062	B	polished	6	32	12	21	10
K0150.240082	B	polished	8	40	14	26	13
K0150.250102	B	polished	10	50	18	34	17
K0150.263122	B	polished	12	63	20	42	21
K0150.232063	B	blasted	6	32	12	21	10
K0150.240083	B	blasted	8	40	14	26	13
K0150.250103	B	blasted	10	50	18	34	17
K0150.263123	B	blasted	12	63	20	42	21

Order No.	Form	Surface finish body	D	D1	D2	H	H3	T	T1
K0150.332062	C	polished	6	32	12	21	10	12	15
K0150.340082	C	polished	8	40	14	26	13	15	18
K0150.350102	C	polished	10	50	18	34	17	18	21
K0150.363122	C	polished	12	63	20	42	21	22	25
K0150.332063	C	blasted	6	32	12	21	10	12	15
K0150.340083	C	blasted	8	40	14	26	13	15	18
K0150.350103	C	blasted	10	50	18	34	17	18	21
K0150.363123	C	blasted	12	63	20	42	21	22	25

Order No.	Form	Surface finish body	D	D1	D2	D6	H	H3	T
K0150.432062	D	polished	M6	32	12	6,4	21	10	11
K0150.440082	D	polished	M8	40	14	8,4	26	13	14
K0150.450102	D	polished	M10	50	18	10,5	34	17	18
K0150.463122	D	polished	M12	63	20	13	42	21	22
K0150.432063	D	blasted	M6	32	12	6,4	21	10	11
K0150.440083	D	blasted	M8	40	14	8,4	26	13	14
K0150.450103	D	blasted	M10	50	18	10,5	34	17	18
K0150.463123	D	blasted	M12	63	20	13	42	21	22

Order No.	Form	Surface finish body	D	D1	D2	H	H3	T	T1
K0150.532062	E	polished	M6	32	12	21	10	12	15
K0150.540082	E	polished	M8	40	14	26	13	15	18
K0150.550102	E	polished	M10	50	18	34	17	18	21
K0150.563122	E	polished	M12	63	20	42	21	22	25
K0150.532063	E	blasted	M6	32	12	21	10	12	15
K0150.540083	E	blasted	M8	40	14	26	13	15	18
K0150.550103	E	blasted	M10	50	18	34	17	18	21
K0150.563123	E	blasted	M12	63	20	42	21	22	25

Order No.	Form	Surface finish body	D	D1	D2	H	H3	L
K0150.632063X15	L	blasted	M6	32	12	21	10	15
K0150.632063X20	L	blasted	M6	32	12	21	10	20
K0150.632063X25	L	blasted	M6	32	12	21	10	25
K0150.632063X30	L	blasted	M6	32	12	21	10	30
K0150.640083X20	L	blasted	M8	40	14	26	13	20
K0150.640083X25	L	blasted	M8	40	14	26	13	25
K0150.640083X30	L	blasted	M8	40	14	26	13	30
K0150.640083X40	L	blasted	M8	40	14	26	13	40
K0150.650103X25	L	blasted	M10	50	18	34	17	25
K0150.650103X30	L	blasted	M10	50	18	34	17	30
K0150.650103X40	L	blasted	M10	50	18	34	17	40
K0150.650103X50	L	blasted	M10	50	18	34	17	50
K0150.663123X30	L	blasted	M12	63	20	42	21	30
K0150.663123X40	L	blasted	M12	63	20	42	21	40
K0150.663123X50	L	blasted	M12	63	20	42	21	50
K0150.663123X60	L	blasted	M12	63	20	42	21	60
