K0374Lateral spring plungers, steel, with plastic, steel or stainless... |
go back |
|
|
DescriptionMaterial:Body mild steel.
Ball steel or stainless steel hardened or POM.
Spring stainless steel or plastic.Version:Body black oxidised.
Ball bright.Note:The lateral spring plunger must be pressed into the hole to at least depth L3. These plungers are for positioning and holding small parts in fixtures. If mechanical machining of the workpiece is to be carried out, other clamps may be necessary. When the fixture is not in use it should be ensured that plastic springs are not under stress.
Spring force refers to a mean value.Drawing reference:Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

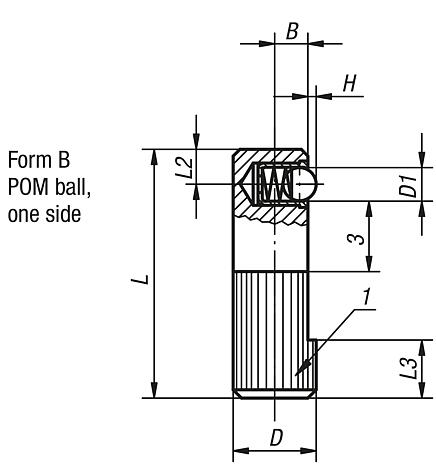

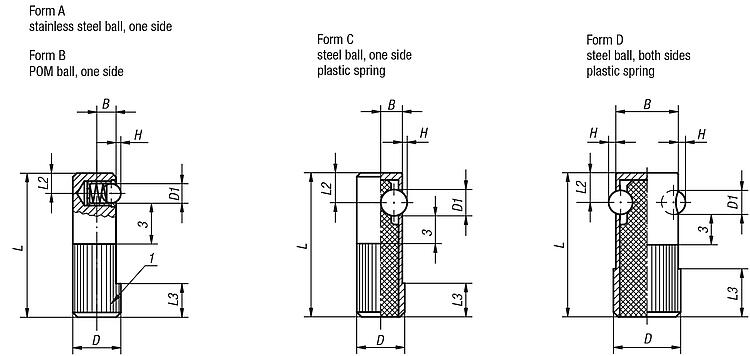

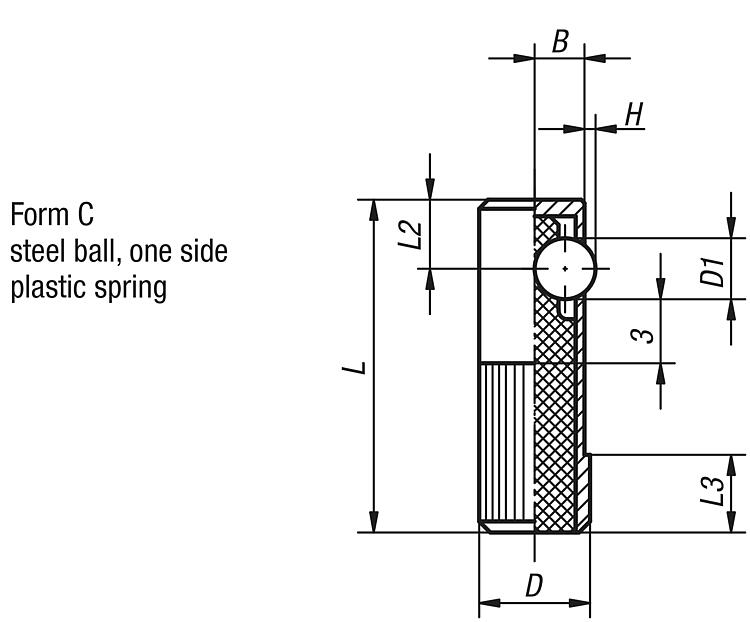

Drawings (total overview) |
| Order No. | Form | D | D1 | H | L | L2 | L3 | B | Receiving hole
H8 | Spring force
initial pressure
F1 approx. N | Spring force
final pressure
F2 approx. N | CAD | Acc. | Price | Order |
|---|
| K0374.008 | A | 8 | 3 | 0,7 | 25 | 3,6 | 6 | 3,2 | 8 | 2,5 | 6,5 |  | | 0.00 € | | | K0374.010 | A | 10 | 4 | 1,0 | 30 | 4,2 | 7 | 4 | 10 | 4,5 | 9 | | | 0.00 € | | | K0374.012 | A | 12 | 5 | 1,5 | 35 | 4,8 | 9 | 5 | 12 | 6,5 | 13 | | | 0.00 € | | | K0374.014 | A | 14 | 6,5 | 1,8 | 40 | 5,8 | 10 | 5,4 | 14 | 8 | 18 | | | 0.00 € | |
|
| Order No. | Form | D | D1 | H | L | L2 | L3 | B | Receiving hole
H8 | Spring force
initial pressure
F1 approx. N | Spring force
final pressure
F2 approx. N | CAD | Acc. | Price | Order |
|---|
| K0374.108 | B | 8 | 3 | 0,7 | 25 | 3,6 | 6 | 3,2 | 8 | 2,5 | 6,5 | | | 0.00 € | | | K0374.110 | B | 10 | 4 | 1,0 | 30 | 4,2 | 7 | 4 | 10 | 4,5 | 9 | | | 0.00 € | | | K0374.112 | B | 12 | 5 | 1,5 | 35 | 4,8 | 9 | 5 | 12 | 6,5 | 13 | | | 0.00 € | | | K0374.114 | B | 14 | 6,5 | 1,8 | 40 | 5,8 | 10 | 5,4 | 14 | 8 | 18 | | | 0.00 € | |
|
|
|
