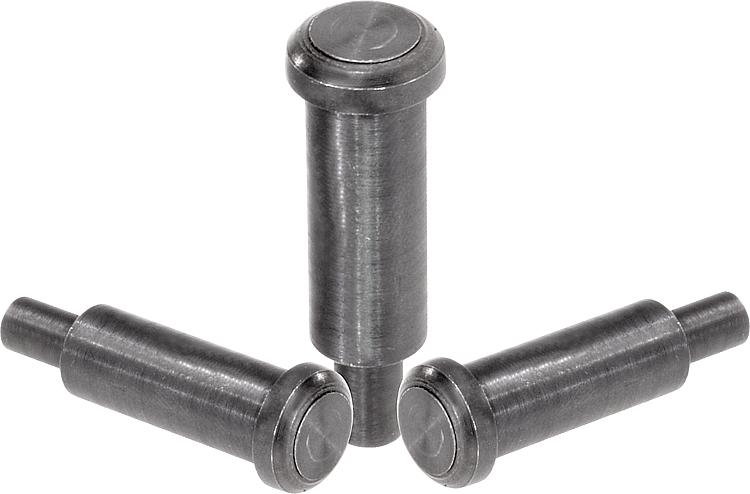

K0331Spring plungers with head and pressure pin, steel |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Steel.Version:Black oxidised.
Thrust pin hardened.Note:These spring plungers are chiefly used as ejectors and spring stops in machine construction. DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

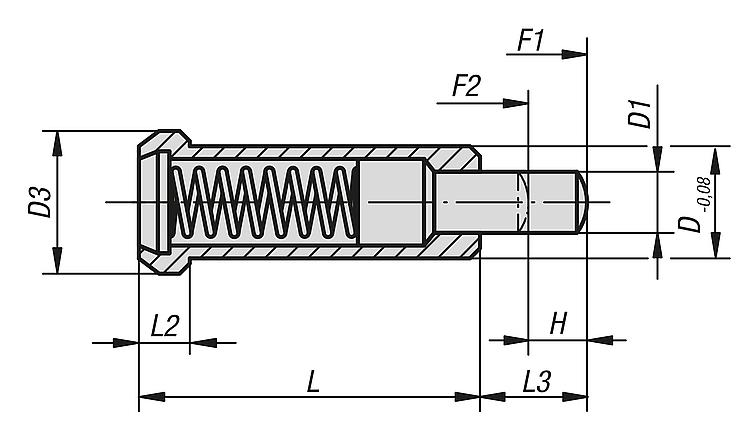

Order No.
| D | D1 | D3 | H | L | L2 | L3 | Spring force
initial pressure
F1 approx. N | Spring force
final pressure
F2 approx. N | CAD | Acc. | Price | Order |
|---|
| K0331.06 | 6 | 2,95 | 8 | 3,5 | 20 | 3,2 | 6 | 10 | 22 |  | | 0.00 € | | | K0331.08 | 8 | 3,95 | 10 | 4,5 | 24 | 3,2 | 8 | 30 | 90 | | | 0.00 € | | | K0331.10 | 10 | 5,95 | 13 | 5,5 | 30 | 4 | 10 | 42 | 110 | | | 0.00 € | | | K0331.12 | 12 | 7,95 | 16 | 6,5 | 36 | 5 | 12 | 50 | 130 | | | 0.00 € | |
