K1840Positioning bushes, steel or stainless steel for status sensor |
go back |
|
Item description/product images |
|
|
DescriptionProduct description:Positioning bushes form a locating point for pin type operating and indexing elements and enable these to be securely and precisely engaged herein.
The positioning bushes for status sensor have a locknut for installing a Ø3 mm sensor into the bush.
The sensor enables electronic feedback as to whether a pin is located in the positioning bush or not.
When using several bushes, it can be determined in which one an operating or indexing element is located.Material:Positioning bush steel or stainless steel 1.4034.
Locknut brass. Version:Positioning bush:
Hardened and black oxidised steel.
Hardened, bright stainless steel.
Locknut nickel-plated.Note:Matched to mounting bracket K0638.
The locknut is supplied loose.
Max. tightening torque for the locknut: 1.2 Nm.Application:Positioning bushes in conjunction with a status sensor enable actuation-dependent process control. In addition, it can be determined whether the operating or indexing element is in the desired position.
For example, by the format adjustment on packaging machines.Assembly:The sensor is fastened into the bush using the locknut and then adjusted axially. The locknut is tightened to fixate the sensor in the final position.
The detailed procedure is described in the installation instructions.Drawing reference:Form A: full thread
Form B: with thread and collar
Form C: with thread and approach taper
Form D: smooth DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Drawings (total overview) |
Positioning bushes, steel or stainless steel for status sensor, Form A, full thread |
More information |
| Order No. | Form | Form definition | Main
material | D
| D1 | D3 | H | H3 | T | T1 | SW1 | SW2 | CAD | Acc. | Price | Order |
|---|
| K1840.103101 | A | Full thread | steel | 3 | M10x1 | 3 | 12 | 4 | 7 | 4 | 3 | 5 |  | | 0.00 € | | | K1840.104101 | A | Full thread | steel | 4 | M10x1 | 3 | 12 | 4 | 7 | 4 | 4 | 5 | | | 0.00 € | | | K1840.105121 | A | Full thread | steel | 5 | M12x1,5 | 3 | 15 | 4 | 11 | 4 | 5 | 5 | | | 0.00 € | | | K1840.106121 | A | Full thread | steel | 6 | M12x1,5 | 3 | 15 | 4 | 11 | 4 | 6 | 5 | | | 0.00 € | | | K1840.108161 | A | Full thread | steel | 8 | M16x1,5 | 3 | 20 | 4 | 15,5 | 6 | 8 | 5 | | | 0.00 € | | | K1840.110161 | A | Full thread | steel | 10 | M16x1,5 | 3 | 20 | 4 | 15,5 | 6 | 10 | 5 | | | 0.00 € | | | K1840.112201 | A | Full thread | steel | 12 | M20x1,5 | 3 | 25 | 4 | 19 | 6 | 12 | 5 | | | 0.00 € | | | K1840.116241 | A | Full thread | steel | 16 | M24x2 | 3 | 32 | 4 | 25 | 8 | 16 | 5 | | | 0.00 € | | | K1840.1103101 | A | Full thread | stainless steel | 3 | M10x1 | 3 | 12 | 4 | 7 | 4 | 3 | 5 | | | 0.00 € | | | K1840.1104101 | A | Full thread | stainless steel | 4 | M10x1 | 3 | 12 | 4 | 7 | 4 | 4 | 5 | | | 0.00 € | | | K1840.1105121 | A | Full thread | stainless steel | 5 | M12x1,5 | 3 | 15 | 4 | 11 | 4 | 5 | 5 | | | 0.00 € | | | K1840.1106121 | A | Full thread | stainless steel | 6 | M12x1,5 | 3 | 15 | 4 | 11 | 4 | 6 | 5 | | | 0.00 € | | | K1840.1108161 | A | Full thread | stainless steel | 8 | M16x1,5 | 3 | 20 | 4 | 15,5 | 6 | 8 | 5 | | | 0.00 € | | | K1840.1110161 | A | Full thread | stainless steel | 10 | M16x1,5 | 3 | 20 | 4 | 15,5 | 6 | 10 | 5 | | | 0.00 € | | | K1840.1112201 | A | Full thread | stainless steel | 12 | M20x1,5 | 3 | 25 | 4 | 19 | 6 | 12 | 5 | | | 0.00 € | | | K1840.1116241 | A | Full thread | stainless steel | 16 | M24x2 | 3 | 32 | 4 | 25 | 8 | 16 | 5 | | | 0.00 € | |
|
Positioning bushes, steel or stainless steel for status sensor, Form B, with thread and collar |
More information |
| Order No. | Form | Form definition | Main
material | D
| D1 | D3 | H | H1 | H2 | H3 | T | SW1 | SW2 | CAD | Acc. | Price | Order |
|---|
| K1840.203101 | B | with thread and collar | steel | 3 | M10x1 | 3 | 15 | 12 | 10,5 | 4 | 7 | 11 | 5 | | | 0.00 € | | | K1840.204101 | B | with thread and collar | steel | 4 | M10x1 | 3 | 15 | 12 | 10,5 | 4 | 7 | 11 | 5 | | | 0.00 € | | | K1840.205121 | B | with thread and collar | steel | 5 | M12x1,5 | 3 | 15 | 12 | 10,5 | 4 | 11 | 13 | 5 | | | 0.00 € | | | K1840.206121 | B | with thread and collar | steel | 6 | M12x1,5 | 3 | 15 | 12 | 10,5 | 4 | 11 | 13 | 5 | | | 0.00 € | | | K1840.208161 | B | with thread and collar | steel | 8 | M16x1,5 | 3 | 20 | 15 | 13,5 | 4 | 15,5 | 17 | 5 | | | 0.00 € | | | K1840.210161 | B | with thread and collar | steel | 10 | M16x1,5 | 3 | 20 | 15 | 13,5 | 4 | 15,5 | 17 | 5 | | | 0.00 € | | | K1840.212201 | B | with thread and collar | steel | 12 | M20x1,5 | 3 | 25 | 20 | 18,5 | 4 | 19 | 22 | 5 | | | 0.00 € | | | K1840.216241 | B | with thread and collar | steel | 16 | M24x2 | 3 | 32 | 27 | 25,5 | 4 | 25 | 27 | 5 | | | 0.00 € | | | K1840.1203101 | B | with thread and collar | stainless steel | 3 | M10x1 | 3 | 15 | 12 | 10,5 | 4 | 7 | 11 | 5 | | | 0.00 € | | | K1840.1204101 | B | with thread and collar | stainless steel | 4 | M10x1 | 3 | 15 | 12 | 10,5 | 4 | 7 | 11 | 5 | | | 0.00 € | | | K1840.1205121 | B | with thread and collar | stainless steel | 5 | M12x1,5 | 3 | 15 | 12 | 10,5 | 4 | 11 | 13 | 5 | | | 0.00 € | | | K1840.1206121 | B | with thread and collar | stainless steel | 6 | M12x1,5 | 3 | 15 | 12 | 10,5 | 4 | 11 | 13 | 5 | | | 0.00 € | | | K1840.1208161 | B | with thread and collar | stainless steel | 8 | M16x1,5 | 3 | 20 | 15 | 13,5 | 4 | 15,5 | 17 | 5 | | | 0.00 € | | | K1840.1210161 | B | with thread and collar | stainless steel | 10 | M16x1,5 | 3 | 20 | 15 | 13,5 | 4 | 15,5 | 17 | 5 | | | 0.00 € | | | K1840.1212201 | B | with thread and collar | stainless steel | 12 | M20x1,5 | 3 | 25 | 20 | 18,5 | 4 | 19 | 22 | 5 | | | 0.00 € | | | K1840.1216241 | B | with thread and collar | stainless steel | 16 | M24x2 | 3 | 32 | 27 | 25,5 | 4 | 25 | 27 | 5 | | | 0.00 € | |
|
Positioning bushes, steel or stainless steel for status sensor, Form C, with thread and approach taper |
More information |
| Order No. | Form | Form definition | Main
material | D
| D1 | D2 | D3 | H | H1 | H2 | H3 | T | SW1 | SW2 | CAD | Acc. | Price | Order |
|---|
| K1840.304121 | C | with thread and approach taper | steel | 4 | M12x1,5 | 19 | 3 | 16 | 12 | 10,5 | 4 | 11 | 4 | 5 | | | 0.00 € | | | K1840.305121 | C | with thread and approach taper | steel | 5 | M12x1,5 | 19 | 3 | 16 | 12 | 10,5 | 4 | 11 | 5 | 5 | | | 0.00 € | | | K1840.306121 | C | with thread and approach taper | steel | 6 | M12x1,5 | 19 | 3 | 16 | 12 | 10,5 | 4 | 11 | 6 | 5 | | | 0.00 € | | | K1840.308161 | C | with thread and approach taper | steel | 8 | M16x1,5 | 26 | 3 | 20 | 15 | 13,5 | 4 | 15,5 | 8 | 5 | | | 0.00 € | | | K1840.310161 | C | with thread and approach taper | steel | 10 | M16x1,5 | 26 | 3 | 20 | 15 | 13,5 | 4 | 15,5 | 10 | 5 | | | 0.00 € | | | K1840.1304121 | C | with thread and approach taper | stainless steel | 4 | M12x1,5 | 19 | 3 | 16 | 12 | 10,5 | 4 | 11 | 4 | 5 | | | 0.00 € | | | K1840.1305121 | C | with thread and approach taper | stainless steel | 5 | M12x1,5 | 19 | 3 | 16 | 12 | 10,5 | 4 | 11 | 5 | 5 | | | 0.00 € | | | K1840.1306121 | C | with thread and approach taper | stainless steel | 6 | M12x1,5 | 19 | 3 | 16 | 12 | 10,5 | 4 | 11 | 6 | 5 | | | 0.00 € | | | K1840.1308161 | C | with thread and approach taper | stainless steel | 8 | M16x1,5 | 26 | 3 | 20 | 15 | 13,5 | 4 | 15,5 | 8 | 5 | | | 0.00 € | | | K1840.1310161 | C | with thread and approach taper | stainless steel | 10 | M16x1,5 | 26 | 3 | 20 | 15 | 13,5 | 4 | 15,5 | 10 | 5 | | | 0.00 € | |
|

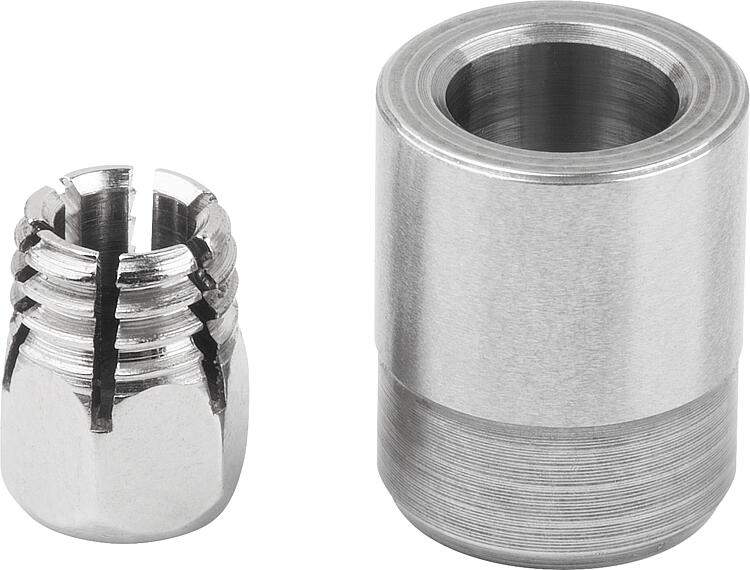

Positioning bushes, steel or stainless steel for status sensor, Form D, smooth |
More information |
| Order No. | Form | Form definition | Main
material | D
| D1 | D3 | H | H1 | H3 | T | SW2 | CAD | Acc. | Price | Order |
|---|
| K1840.403089 | D | smooth | steel | 3 | 8 | 3 | 10 | 6 | 4 | 5 | 5 | | | 0.00 € | | | K1840.404089 | D | smooth | steel | 4 | 8 | 3 | 10 | 6 | 4 | 5 | 5 | | | 0.00 € | | | K1840.405089 | D | smooth | steel | 5 | 8 | 3 | 10 | 6 | 4 | 6 | 5 | | | 0.00 € | | | K1840.406109 | D | smooth | steel | 6 | 10 | 3 | 11 | 7 | 4 | 7 | 5 | | | 0.00 € | | | K1840.408139 | D | smooth | steel | 8 | 13,5 | 3 | 14 | 9,5 | 4 | 9,5 | 5 | | | 0.00 € | | | K1840.410179 | D | smooth | steel | 10 | 17 | 3 | 16 | 11,5 | 4 | 11,5 | 5 | | | 0.00 € | | | K1840.1403089 | D | smooth | stainless steel | 3 | 8 | 3 | 10 | 6 | 4 | 5 | 5 | | | 0.00 € | | | K1840.1404089 | D | smooth | stainless steel | 4 | 8 | 3 | 10 | 6 | 4 | 5 | 5 | | | 0.00 € | | | K1840.1405089 | D | smooth | stainless steel | 5 | 8 | 3 | 10 | 6 | 4 | 6 | 5 | | | 0.00 € | | | K1840.1406109 | D | smooth | stainless steel | 6 | 10 | 3 | 11 | 7 | 4 | 7 | 5 | | | 0.00 € | | | K1840.1408139 | D | smooth | stainless steel | 8 | 13,5 | 3 | 14 | 9,5 | 4 | 9,5 | 5 | | | 0.00 € | | | K1840.1410179 | D | smooth | stainless steel | 10 | 17 | 3 | 16 | 11,5 | 4 | 11,5 | 5 | | | 0.00 € | |
|
