Tube clamps, swivel half aluminium, with sunken teeth

go back

Products
- Operating parts | standard elements
  - Tube connectors, profile connectors
    - tube clamps
      - Tube clamps, swivel half aluminium, with sunken teeth

Item description/product images

DescriptionMaterial:Cast aluminium.
Screws and nuts steel.Version:Vibratory ground.
Screws and nuts electro zinc-plated.Note:Swivel half clamps with sunken teeth can be combined with swivel half clamps with raised teeth (K0485) to make a complete swivel clamp.

Max. torque when tightening the lockscrew:
M6: 10 Nm.
M8: 25 Nm.
M10: 50 Nm.On request:Clamping levers for tightening.Accessory:- Hex nut DIN 985
- Hex head bolt DIN 933

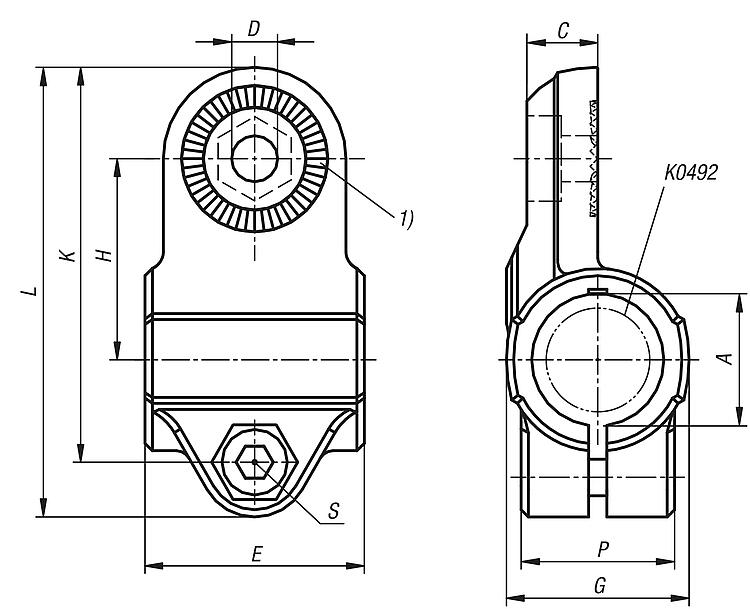

- Cap screw DIN 6912Drawing reference:

1) 15° toothing

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K0486 Tube clamps, swivel half aluminium, with sunken teeth

328 kB

Drawings

Item selection/filter

Order No.	A	C	D	E	G	H	K	L	P	S	F kN	Mb (Nm)	Mv (Nm)
K0486.512	12,1	10,5	7,5	30	26	27	56	64,5	21	M6	2,7	38	15
K0486.514	14,1	10,5	7,5	30	26	27	56	64,5	21	M6	2,7	38	15
K0486.516	16,1	10,5	7,5	30	26	27	56	64,5	21	M6	2,7	38	15
K0486.518	18,1	10,5	7,5	30	26	27	56	64,5	21	M6	2,7	38	15
K0486.520	20	16	9	40	40	43	85	93	33	M8	6	133	85
K0486.525	25,1	16	9	40	40	43	85	93	33	M8	6	133	85
K0486.530	30,1	16	9	40	40	43	85	93	33	M8	6	133	85
K0486.540	40,2	22	11	56	56	60	116	128	48	M10	5,8	264	138
