K1916Thrust pads with retaining pin |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Steel.Version:Case-hardened and black oxidised.Note:The pin is used to hold the pad on screw K0390.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Order No.

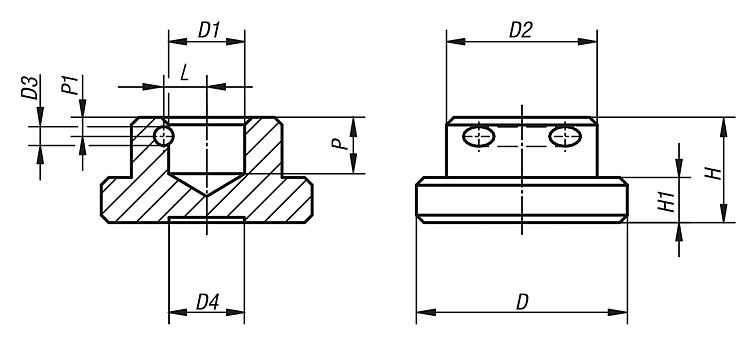

| D | D1 | D2 | D3 | D4 | H | H1 | L | P | P1 | CAD | Acc. | Price | Order |
|---|
| K1916.06 | 12 | 4,6 | 10 | 2 | 5 | 7 | 2,5 | 3 | 4 | 1,6 |  | | 0.00 € | | | K1916.08 | 16 | 6,1 | 12 | 2 | 7 | 9 | 4 | 3,5 | 5 | 2 | | | 0.00 € | | | K1916.10 | 20 | 8,1 | 15 | 2 | 8 | 11 | 5 | 4,6 | 7 | 2,7 | | | 0.00 € | | | K1916.12 | 25 | 8,1 | 18 | 2 | 10 | 13 | 6 | 4,6 | 7 | 2,7 | | | 0.00 € | | | K1916.14 | 28 | 10,1 | 20 | 2,5 | 10 | 14 | 6 | 5,7 | 7,5 | 2,5 | | | 0.00 € | | | K1916.16 | 32 | 12,1 | 22 | 2,5 | 14 | 15 | 7 | 6,7 | 7,5 | 2,5 | | | 0.00 € | | | K1916.20 | 40 | 15,6 | 28 | 2,5 | 18 | 16 | 9 | 8,3 | 8 | 3 | | | 0.00 € | |
