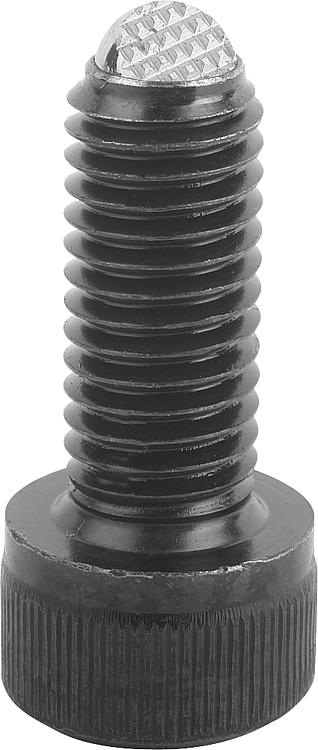

K0380_FBall-end thrust screws with head Form F, with flattened and... |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Screw carbon steel.
Ball ball-bearing steel.Version:Screw grade min. 10.9, black.
Ball hardened, bright. DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | Form | D | D1 | D3 | L | L1 | L2 | Ball-Ø | SW | Load rating
max. kN
(static load only) | CAD | Acc. | Price | Order |
|---|
| K0380.30820 | F | M8 | 4,5 | 13 | 20 | 3,5 | 8 | 5,5 | 6 | 15 |  | | 0.00 € | | | K0380.30835 | F | M8 | 4,5 | 13 | 35 | 3,5 | 8 | 5,5 | 6 | 15 | | | 0.00 € | | | K0380.30850 | F | M8 | 4,5 | 13 | 50 | 22 | 8 | 5,5 | 6 | 15 | | | 0.00 € | | | K0380.31025 | F | M10 | 6 | 16 | 25 | 4,5 | 10 | 7 | 8 | 20 | | | 0.00 € | | | K0380.31040 | F | M10 | 6 | 16 | 40 | 4,5 | 10 | 7 | 8 | 20 | | | 0.00 € | | | K0380.31060 | F | M10 | 6 | 16 | 60 | 28 | 10 | 7 | 8 | 20 | | | 0.00 € | | | K0380.31230 | F | M12 | 7,2 | 18 | 30 | 5 | 12 | 8,5 | 10 | 30 | | | 0.00 € | | | K0380.31250 | F | M12 | 7,2 | 18 | 50 | 5 | 12 | 8,5 | 10 | 30 | | | 0.00 € | | | K0380.31280 | F | M12 | 7,2 | 18 | 80 | 44 | 12 | 8,5 | 10 | 30 | | | 0.00 € | | | K0380.31640 | F | M16 | 10,7 | 24 | 40 | 6 | 16 | 12 | 14 | 60 | | | 0.00 € | | | K0380.31660 | F | M16 | 10,7 | 24 | 60 | 6 | 16 | 12 | 14 | 60 | | | 0.00 € | | | K0380.31680 | F | M16 | 10,7 | 24 | 80 | 36 | 16 | 12 | 14 | 60 | | | 0.00 € | | | K0380.32050 | F | M20 | 13,5 | 30 | 50 | 7,5 | 20 | 15 | 17 | 90 | | | 0.00 € | | | K0380.32080 | F | M20 | 13,5 | 30 | 80 | 28 | 20 | 15 | 17 | 90 | | | 0.00 € | | | K0380.320100 | F | M20 | 13,5 | 30 | 100 | 48 | 20 | 15 | 17 | 90 | | | 0.00 € | | | K0380.32460 | F | M24 | 15,8 | 36 | 60 | 9 | 24 | 18 | 19 | 120 | | | 0.00 € | | | K0380.32490 | F | M24 | 15,8 | 36 | 90 | 30 | 24 | 18 | 19 | 120 | | | 0.00 € | | | K0380.324120 | F | M24 | 15,8 | 36 | 120 | 60 | 24 | 18 | 19 | 120 | | | 0.00 € | |
