DescriptionMaterial:Body high carbon steel.Version:Body tempered and black oxidised. Contact faces case-hardened.Note:Rest pads are for supporting machined and unmachined parts. They can also be used as stops and thrust pads in fixtures and toolmaking. Studs or grub screws can be screwed and glued into the tapped hole D to make a support with external thread.Drawing reference:

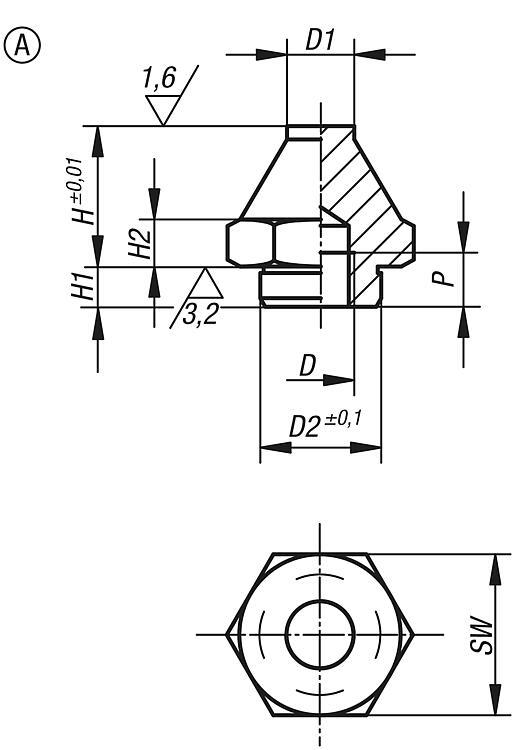

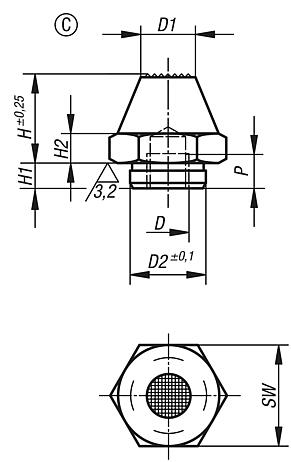

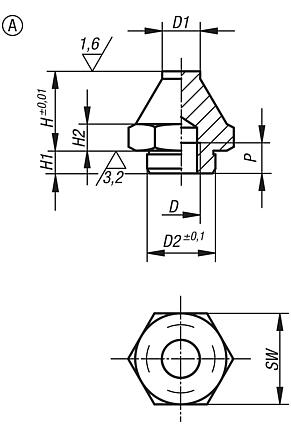

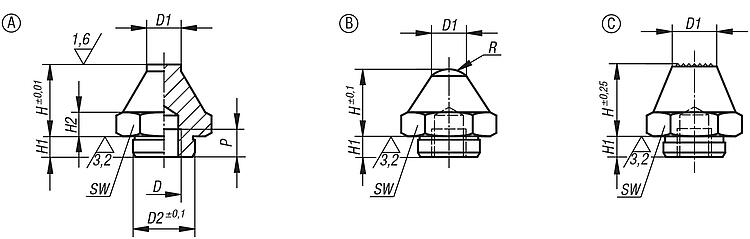

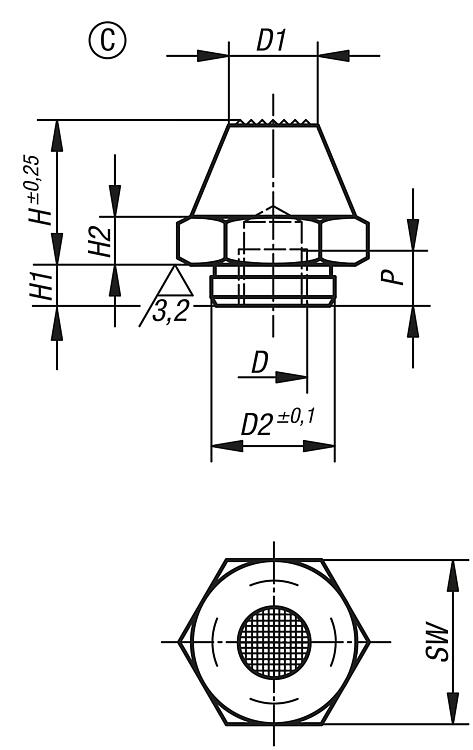

Form A: flat face Form B: ball end Form C: diamond grip
DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
