K0226Tubular handles, stainless steel with plastic grip legs |
go back |
|
|
DescriptionMaterial:Legs glass-bead reinforced thermoplastic.
Grip stainless steel 1.4301.
Inserts stainless steel 1.4305. Version:Legs fine structured, black.
Grip fine ground.
Inserts fine turned.Note:Locking webs allow a precision fit of the tube on the plastic leg boss.
Splash-proof with O-ring seals.
Different fastening inserts allow mounting from the front, rear or with each other.
Handles with through hole inserts (Form A) are supplied with stainless steel fasteners.

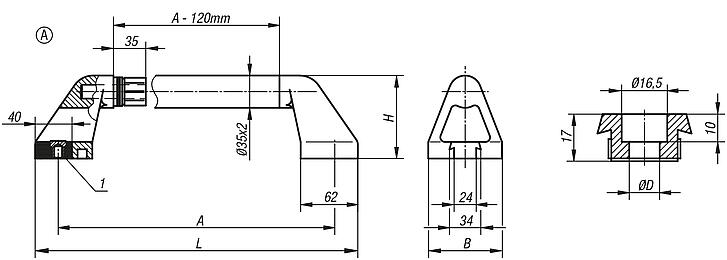

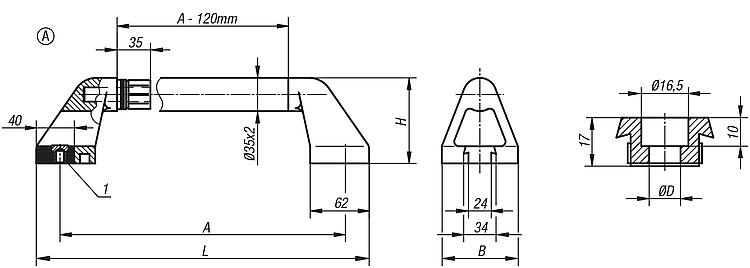

Handles with tapped inserts (Form B) are supplied without fasteners.Drawing reference:Form A: screw head insert
Form B: threaded insert
1) Screw head insert (A) or threaded insert (B). DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Drawings (total overview) |
Other items in this category |
|
| Availability Here you can check item's availability. |
|
Order No. changeover Here you get more information to our part number restructuringmore... |
|
