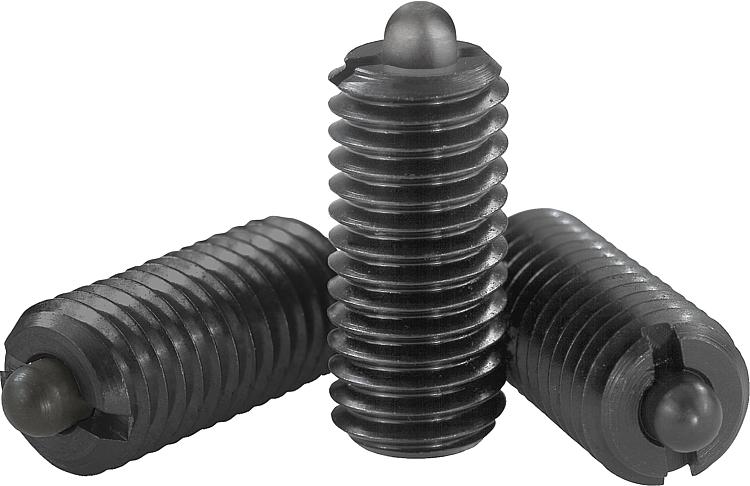

K0317Spring plungers with hexagon socket and thrust pin, steel |
go back |
|
|
DescriptionMaterial:Sleeve steel grade 5.8.
Thrust pin steel.
Spring steel wire grade D.Version:Black oxidised.
Thrust pin hardened.Drawing reference: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

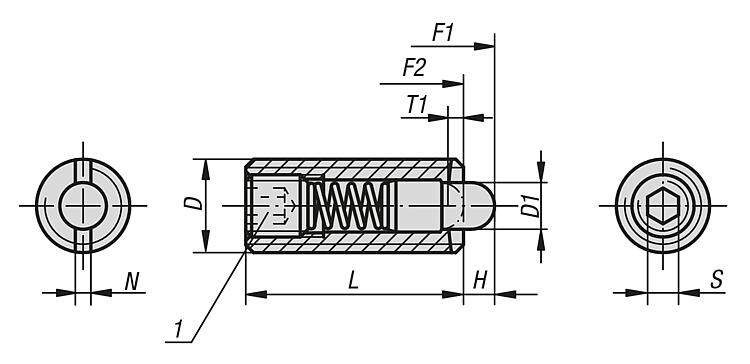

Drawings (total overview) |
Spring plungers with hexagon socket and thrust pin, steel, standard spring force |
More information |
Order No.
| D | D1 | H | L | T1 | N | S | Spring force
initial pressure
F1 approx. N | Spring force
final pressure
F2 approx. N | Order No.
Assembly key | CAD | Acc. | Price | Order |
|---|
| K0317.03 | M3 | 1 | 1,5 | 10 | 1 | 0,4 | 0,7 | 0,5 | 3 | K0317.903 |  |  | 0.00 € | | | K0317.04 | M4 | 1,5 | 1,5 | 15 | 0,6 | 0,6 | 1,3 | 5 | 16 | K0317.904 | | | 0.00 € | | | K0317.05 | M5 | 2,4 | 2,3 | 18 | 0,8 | 0,8 | 1,5 | 6 | 20 | K0317.905 | | | 0.00 € | | | K0317.06 | M6 | 2,7 | 2,5 | 20 | 1 | 1 | 2 | 7 | 20 | K0317.906 | | | 0.00 € | | | K0317.08 | M8 | 3,5 | 3 | 22 | 1,4 | 1,2 | 2,5 | 9 | 35 | K0317.908 | | | 0.00 € | | | K0317.10 | M10 | 4 | 3 | 22 | 1,4 | 1,6 | 3 | 9 | 35 | K0317.910 | | | 0.00 € | | | K0317.12 | M12 | 6 | 4 | 28 | 2 | 2 | 4 | 12 | 55 | K0317.912 | | | 0.00 € | | | K0317.16 | M16 | 7,5 | 5 | 32 | 2,5 | 2,5 | 5 | 45 | 100 | K0317.916 | | | 0.00 € | | | K0317.20 | M20 | 10 | 7 | 40 | 3 | 2,5 | 6 | 60 | 120 | - | | | 0.00 € | | | K0317.24 | M24 | 12 | 10 | 52 | 3 | 2,5 | 8 | 80 | 160 | - | | | 0.00 € | |
|
Spring plungers with hexagon socket and thrust pin, steel, light spring force |
More information |
Order No.
| D | D1 | H | L | T1 | N | S | Spring force
initial pressure
F1 approx. N | Spring force
final pressure
F2 approx. N | Order No.
Assembly key | CAD | Acc. | Price | Order |
|---|
| K0317.104 | M4 | 1,5 | 1,5 | 15 | 0,6 | 0,6 | 1,3 | 2 | 7 | K0317.904 | | | 0.00 € | | | K0317.105 | M5 | 2,4 | 2,3 | 18 | 0,8 | 0,8 | 1,5 | 3 | 10 | K0317.905 | | | 0.00 € | | | K0317.106 | M6 | 2,7 | 2,5 | 20 | 1 | 1 | 2 | 3 | 9 | K0317.906 | | | 0.00 € | | | K0317.108 | M8 | 3,5 | 3 | 22 | 1,4 | 1,2 | 2,5 | 4 | 16 | K0317.908 | | | 0.00 € | | | K0317.110 | M10 | 4 | 3 | 22 | 1,4 | 1,6 | 3 | 4 | 16 | K0317.910 | | | 0.00 € | | | K0317.112 | M12 | 6 | 4 | 28 | 2 | 2 | 4 | 5 | 27 | K0317.912 | | | 0.00 € | | | K0317.116 | M16 | 7,5 | 5 | 32 | 2,5 | 2,5 | 5 | 20 | 45 | K0317.916 | | | 0.00 € | |
|
Spring plungers with hexagon socket and thrust pin, steel, strong spring force |
More information |
Order No.
| D | D1 | H | L | T1 | N | S | Spring force
initial pressure
F1 approx. N | Spring force
final pressure
F2 approx. N | Order No.
Assembly key | CAD | Acc. | Price | Order |
|---|
| K0317.205 | M5 | 2,4 | 2,3 | 18 | 0,8 | 0,8 | 1,5 | 11 | 29 | K0317.905 | | | 0.00 € | | | K0317.206 | M6 | 2,7 | 2,5 | 20 | 1 | 1 | 2 | 14 | 37 | K0317.906 | | | 0.00 € | | | K0317.208 | M8 | 3,5 | 3 | 22 | 1,4 | 1,2 | 2,5 | 22 | 65 | K0317.908 | | | 0.00 € | | | K0317.210 | M10 | 4 | 3 | 22 | 1,4 | 1,6 | 3 | 19 | 70 | K0317.910 | | | 0.00 € | | | K0317.212 | M12 | 6 | 4 | 28 | 2 | 2 | 4 | 25 | 85 | K0317.912 | | | 0.00 € | | | K0317.216 | M16 | 7,5 | 5 | 32 | 2,5 | 2,5 | 5 | 60 | 150 | K0317.916 | | | 0.00 € | | | K0317.220 | M20 | 10 | 7 | 40 | 3 | 2,5 | 6 | 75 | 190 | - | | | 0.00 € | | | K0317.224 | M24 | 12 | 10 | 52 | 3 | 2,5 | 8 | 95 | 240 | - | | | 0.00 € | |
|
