Locking pins, steel with folding latch

go back

Products
- Operating parts | standard elements
  - Spring plungers, indexing plungers, ball lock pins
    - Locking pins
      - Locking pins, steel with folding latch

Item description/product images

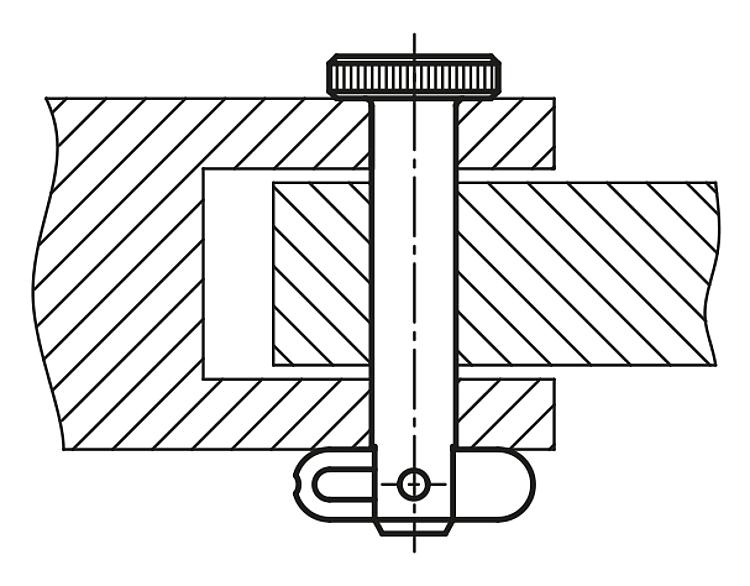

DescriptionMaterial:Steel electro zinc-plated.Note:Locking pins with folding latch are not only used for fast and easy fixing but also for permanent joining of movable parts and workpieces.
The wide folding latch lets you secure the parts to be joined over a large cross section. It can also work under pressure in the axial direction.
Indexing slots in the folding latch allow definite “Closed” and “Open” positions.Drawing reference:

1) locking slot

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

K0776_Datasheet_32729_Locking_pins_steel_with_folding_latch--en

229 kB

Drawings

Overview of items (compressed)

Item selection/filter

Order No.	B	B1	D	D1	Receiving hole H11	H	L	L1	L2	L5	Shearing force double shear max.kN	Extraction force F N
K0776.05010	11,2	1,25	10	5	5	2,5	10	4,1	21,4	14,1	8	60
K0776.05015	11,2	1,25	10	5	5	2,5	15	4,1	26,4	19,1	8	60
K0776.05020	11,2	1,25	10	5	5	2,5	20	4,1	31,4	24,1	8	60
K0776.05025	11,2	1,25	10	5	5	2,5	25	4,1	36,4	29,1	8	60
K0776.05030	11,2	1,25	10	5	5	2,5	30	4,1	41,4	34,1	8	60
K0776.05035	11,2	1,25	10	5	5	2,5	35	4,1	46,4	39,1	8	60
K0776.05040	11,2	1,25	10	5	5	2,5	40	4,1	51,4	44,1	8	60
K0776.05050	11,2	1,25	10	5	5	2,5	50	4,1	61,4	54,1	8	60
K0776.05060	11,2	1,25	10	5	5	2,5	60	4,1	71,4	64,1	8	60
K0776.06010	16,9	2	12	6	6	3	10	6	27	16	12	190
K0776.06020	16,9	2	12	6	6	3	20	6	37	26	12	190
K0776.06025	16,9	2	12	6	6	3	25	6	45	31	12	190
K0776.06030	16,9	2	12	6	6	3	30	6	47	36	12	190
K0776.06035	16,9	2	12	6	6	3	35	6	52	41	12	190
K0776.06040	16,9	2	12	6	6	3	40	6	60	46	12	190
K0776.06050	16,9	2	12	6	6	3	50	6	70	56	12	190
K0776.06060	16,9	2	12	6	6	3	60	6	77	66	12	190
K0776.06070	16,9	2	12	6	6	3	70	6	87	76	12	190
K0776.06080	16,9	2	12	6	6	3	80	6	97	86	12	190
K0776.08020	16,9	2	16	8	8	4	20	6	37	26	21	190
K0776.08025	16,9	2	16	8	8	4	25	6	46	31	21	190
K0776.08030	16,9	2	16	8	8	4	30	6	47	36	21	190
K0776.08035	16,9	2	16	8	8	4	35	6	52	41	21	190
K0776.08040	16,9	2	16	8	8	4	40	6	61	46	21	190
K0776.08050	16,9	2	16	8	8	4	50	6	71	56	21	190
K0776.08060	16,9	2	16	8	8	4	60	6	77	66	21	190
K0776.08070	16,9	2	16	8	8	4	70	6	87	76	21	190
K0776.08080	16,9	2	16	8	8	4	80	6	97	86	21	190
K0776.08090	16,9	2	16	8	8	4	90	6	107	96	21	190
K0776.08100	16,9	2	16	8	8	4	100	6	117	106	21	190
K0776.10020	25,4	3	20	10	10	5	20	9	45,4	29	33	300
K0776.10025	25,4	3	20	10	10	5	25	9	50,4	34	33	300
K0776.10030	25,4	3	20	10	10	5	30	9	55,4	39	33	300
K0776.10035	25,4	3	20	10	10	5	35	9	60,4	44	33	300
K0776.10040	25,4	3	20	10	10	5	40	9	65,4	49	33	300
K0776.10050	25,4	3	20	10	10	5	50	9	75,4	59	33	300
K0776.10060	25,4	3	20	10	10	5	60	9	85,4	69	33	300
K0776.10070	25,4	3	20	10	10	5	70	9	95,4	79	33	300
K0776.10080	25,4	3	20	10	10	5	80	9	105,4	89	33	300
K0776.10090	25,4	3	20	10	10	5	90	9	115,4	99	33	300
K0776.10100	25,4	3	20	10	10	5	100	9	125,4	109	33	300
K0776.12030	25,4	3	24	12	12	6	30	9	55,4	39	48	300
K0776.12035	25,4	3	24	12	12	6	35	9	60,4	44	48	300
K0776.12040	25,4	3	24	12	12	6	40	9	65,4	49	48	300
K0776.12050	25,4	3	24	12	12	6	50	9	75,4	59	48	300
K0776.12060	25,4	3	24	12	12	6	60	9	85,4	69	48	300
K0776.12070	25,4	3	24	12	12	6	70	9	95,4	79	48	300
K0776.12080	25,4	3	24	12	12	6	80	9	105,4	89	48	300
K0776.12090	25,4	3	24	12	12	6	90	9	115,4	99	48	300
K0776.12100	25,4	3	24	12	12	6	100	9	125,4	109	48	300
K0776.12110	25,4	3	24	12	12	6	110	9	135,4	119	48	300
K0776.12120	25,4	3	24	12	12	6	120	9	145,4	129	48	300
