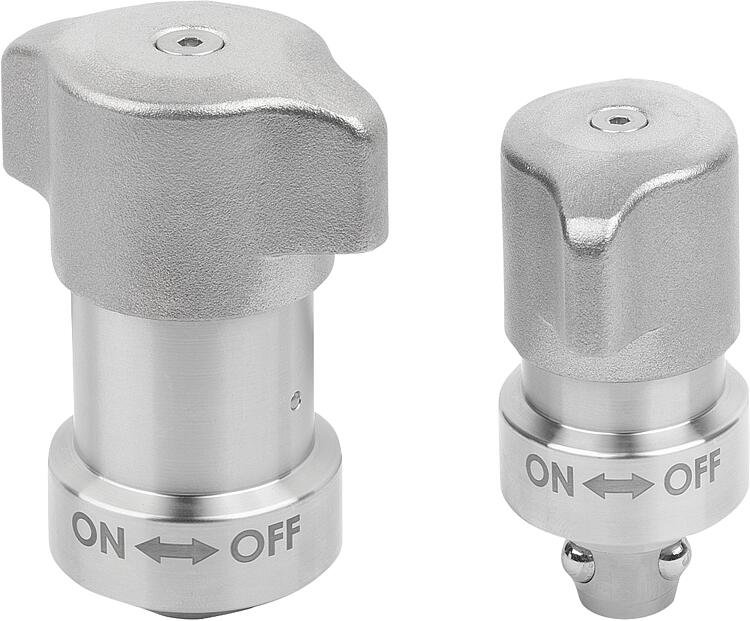

DescriptionMaterial:Housing stainless steel 1.4305.
Pin steel.
Twist knob stainless steel 1.4301.
Version:Stainless steel bright.
Steel nickel-plated.Note:M2 or M3 stainless steel fastening screws are included.
Mounting option 1 for plate thickness 6 mm.
Mounting option 2 for plate thickness >6 to 20 mm.
A gap of more than 0.1 mm appears between the plates if the retaining force is exceeded.
Type of operation:Check that the twist knob is in the "OFF" position and that the pin is retracted.
Place the ball lock pin over the receiving bush or insert it. Press the twist knob down and turn it to the "ON" position. When fully clamped, an audible click will be heard.Accessory:Locating bush, steel, for ball lock pin K2259.Drawing reference:1) Mounting option 1
2) Mounting option 2
3) Plate
