K0549Magnets shallow pot with thread hard ferrite |
go back |
|
|
DescriptionMaterial:Housing, steel.
Magnetic core hard ferrite.Version:Housing, electro zinc-plated.Note:Shallow pot magnets, shielded system.
Hairline cracks in the magnetic material are unavoidable for technical reasons in D=80, D=100 and D=125 versions. They do not impair the attracting function of the magnets in any way.Temperature range:max. 200°C.Drawing reference: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Drawings (total overview) |
| Order No. | Form | D
| D2 | L | H | H1 | Magnetic
force N
| CAD | Acc. | Price | Order |
|---|
| K0549.21 | A | 10 ±0,15 | M3 | 7 | 4,5 | 11,5 | 4 |  | | 0.00 € | | | K0549.22 | A | 13 ±0,15 | M3 | 7 | 4,5 | 11,5 | 10 | | | 0.00 € | | | K0549.23 | A | 16 ±0,15 | M3 | 7 | 4,5 | 11,5 | 18 | | | 0.00 € | | | K0549.24 | A | 20 ±0,15 | M3 | 7 | 6 | 13 | 30 | | | 0.00 € | | | K0549.25 | A | 25 ±0,15 | M4 | 8 | 7 | 15 | 40 | | | 0.00 € | | | K0549.26 | A | 32 ±0,20 | M4 | 8 | 7 | 15 | 80 | | | 0.00 € | |
|

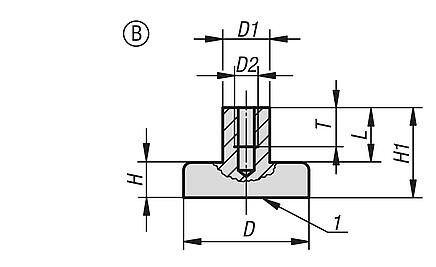

| Order No. | Form | D
| D1 | D2 | L | H | H1 | T | Magnetic
force N
| CAD | Acc. | Price | Order |
|---|
| K0549.01 | B | 10 ±0,15 | 6 | M3 | 7 | 4,5 | 11,5 | 5 | 4 | | | 0.00 € | | | K0549.02 | B | 13 ±0,15 | 6 | M3 | 7 | 4,5 | 11,5 | 5 | 10 | | | 0.00 € | | | K0549.03 | B | 16 ±0,15 | 6 | M3 | 7 | 4,5 | 11,5 | 5 | 18 | | | 0.00 € | | | K0549.04 | B | 20 ±0,15 | 6 | M3 | 7 | 6 | 13 | 5 | 30 | | | 0.00 € | | | K0549.05 | B | 25 ±0,15 | 8 | M4 | 8 | 7 | 15 | 6 | 40 | | | 0.00 € | | | K0549.06 | B | 32 ±0,20 | 8 | M4 | 8 | 7 | 15 | 6 | 80 | | | 0.00 € | | | K0549.07 | B | 40 ±0,20 | 10 | M5 | 10 | 8 | 18 | 8 | 125 | | | 0.00 € | | | K0549.08 | B | 50 ±0,20 | 12 | M6 | 12 | 10 | 22 | 10 | 220 | | | 0.00 € | | | K0549.09 | B | 63 ±0,20 | 15 | M8 | 16 | 14 | 30 | 14 | 350 | | | 0.00 € | | | K0549.10 | B | 80 ±0,25 | 20 | M10 | 16 | 18 | 34 | 14 | 600 | | | 0.00 € | | | K0549.11 | B | 99 ±0,25 | 22 | M12 | 20 | 22 | 42 | 17 | 900 | | | 0.00 € | | | K0549.12 | B | 125 ±0,25 | 25 | M14 | 24 | 26 | 50 | 20 | 1300 | | | 0.00 € | |
|
