Item description/product images |
|
|
DescriptionMaterial:Spring steelVersion:Electro zinc-plated.Note:SL retainers prevent axial movement on shafts, axles and bolts with a groove or slot. The curvature provides a high degree of tension for a tight fit and compensates for tolerances. The SL retainers offer a high level of security against unintentional loosening.
Assembly and disassembly is possible both with and without assembly tools.Accessory:Pin with groove for circlip suitable for clevises K1454.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Order No.

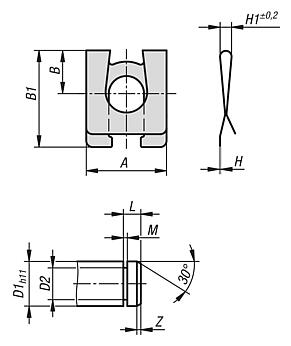

| A | B | B1 | D1 | D2 | H | H1 | L | M | Z | CAD | Acc. | Price | Order |
|---|
| K2232.0407 | 7 | 4,1 | 8,6 | 4 | 3,2 | 0,3 | 1,9 | 2 | 0,64 | 0,5 |  | | 0.00 € | | | K2232.0509 | 9 | 5 | 10,9 | 5 | 4 | 0,4 | 2,25 | 2,5 | 0,74 | 0,5 | | | 0.00 € | | | K2232.0611 | 11 | 6,2 | 13,9 | 6 | 5 | 0,4 | 3,1 | 3 | 0,74 | 1 | | | 0.00 € | | | K2232.0814 | 14 | 8,6 | 18 | 8 | 6 | 0,45 | 3,5 | 3,5 | 0,94 | 0,5 | | | 0.00 € | | | K2232.1018 | 18 | 10 | 22 | 10 | 8 | 0,5 | 3,6 | 4,5 | 1,05 | 1 | | | 0.00 € | | | K2232.1222 | 22 | 11,8 | 25,9 | 12 | 9 | 0,5 | 4,8 | 5,5 | 1,15 | 1 | | | 0.00 € | | | K2232.1425 | 25,1 | 13,5 | 30,2 | 14 | 10 | 0,6 | 4,8 | 5,5 | 1,25 | 1,25 | | | 0.00 € | | | K2232.1628 | 28 | 16,2 | 34 | 16 | 12 | 0,6 | 4,8 | 6 | 1,35 | 1,5 | | | 0.00 € | |
