Compression latches, zinc with adjustable tongue height

go back

Products
- Operating parts | standard elements
  - Quarter-turn locks, edge protection profiles
    - Compression latches, zinc with adjustable tongue height

Item description/product images

DescriptionMaterial:Housing and actuator die-cast zinc.
Flat seal rubber.Version:Housing and actuator chrome-plated.
Wing-handle version powder-coated.Note:Compression latches are primarily used for doors and housings that require a high pressure on the seal. Right or left deployment. The locking direction is always clockwise.

Vibration-proof, water and dust tight according to IP65.

Please order the desired tongue type separately. Every tongue can be combined with every housing.

*Dimension A results from the combination of the quarter turn lock and the tongue and is specified with the matching tongues.Function:Turning the actuator 90° brings the tongue into the closed position. Turning the actuator another 90° draws the tongue into the frame increasing the pressure. The compression gap is 6 mm. The fastening nut is an earthing nut with teeth one side. The offset tongue can be installed positive or negative.Accessory:Key K0535.

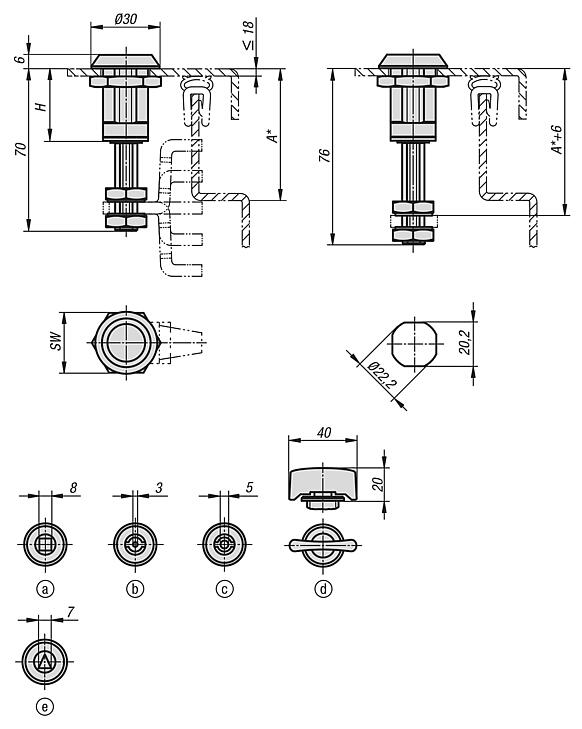

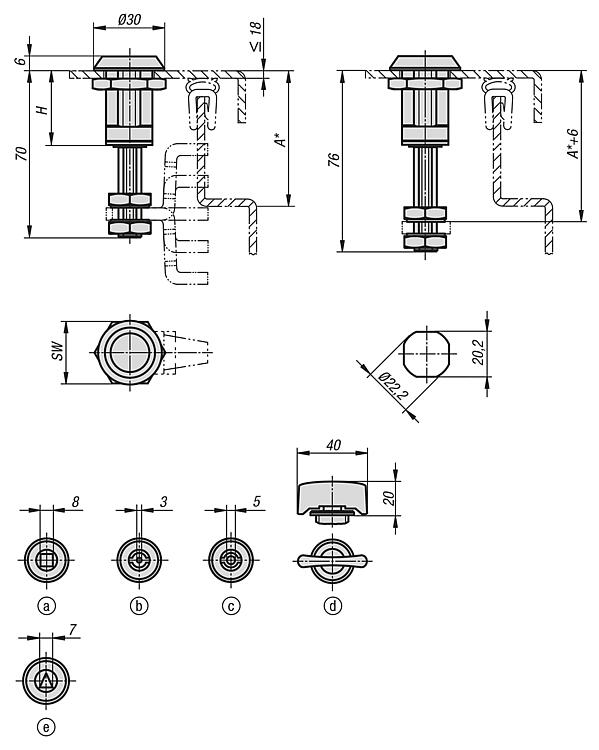

Tongues for steel compression latch with adjustable tongue gap K0532.Drawing reference:

Actuation:
a) square 8 mm
b) double lug 3 mm
c) double lug 5 mm
d) T-grip
e) triangle 7 mm

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K0531 Compression latches, zinc with adjustable tongue height

236 kB

Drawings

Item selection/filter

Order No.	Actuation	SW	H	Price
K0531.18321	square 8 mm	27	32	on request
K0531.30322	wing grip	27	32	on request
K0531.43321	double lug 3 mm	27	32	on request
K0531.45321	double lug 5 mm	27	32	on request
K0531.87321	Triangle 7 mm	27	32	on request
