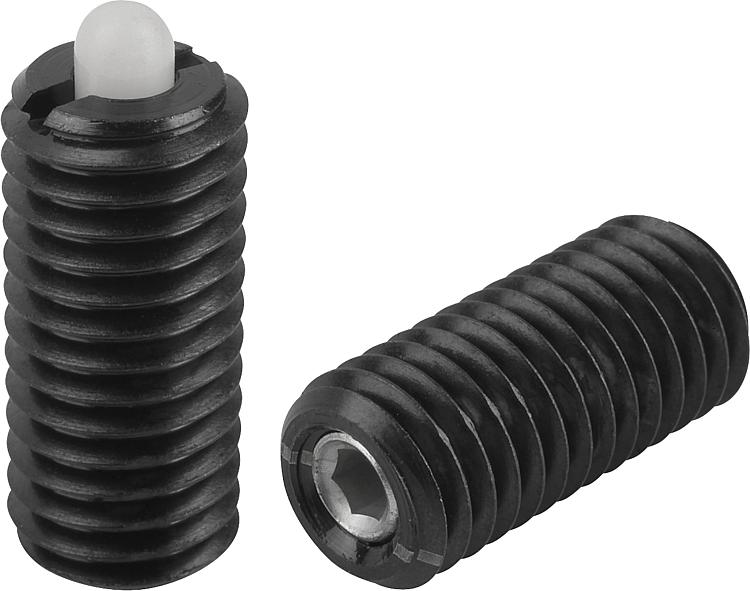

K0318_LFSpring plungers with hexagon socket and POM thrust pin, light... |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Sleeve steel grade 5.8.
Thrust pin POM.
Spring grade D steel wire.Version:Black oxidised.Drawing reference: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Order No.
| D | D1 | H | L | T1 | N | S | Spring force
initial pressure
F1 approx. N | Spring force
final pressure
F2 approx. N | Order No.
Assembly key | CAD | Acc. | Price | Order |
|---|
| K0318.104 | M4 | 1,5 | 1,5 | 15 | 0,6 | 0,6 | 1,3 | 2 | 7 | K0317.904 | |  | 0.00 € | | | K0318.105 | M5 | 2,4 | 2,3 | 18 | 0,8 | 0,8 | 1,5 | 3 | 10 | K0317.905 | | | 0.00 € | | | K0318.106 | M6 | 2,7 | 2,5 | 20 | 1 | 1 | 2 | 3 | 9 | K0317.906 | | | 0.00 € | | | K0318.108 | M8 | 3,5 | 3 | 22 | 1,4 | 1,2 | 2,5 | 4 | 16 | K0317.908 | | | 0.00 € | | | K0318.110 | M10 | 4 | 3 | 22 | 1,4 | 1,6 | 3 | 4 | 16 | K0317.910 | | | 0.00 € | | | K0318.112 | M12 | 6 | 4 | 28 | 2 | 2 | 4 | 5 | 27 | K0317.912 |  | | 0.00 € | | | K0318.116 | M16 | 7,5 | 5 | 32 | 2,5 | 2,5 | 5 | 20 | 45 | K0317.916 | | | 0.00 € | |
