K1192Claw clamp for workpiece stabiliser |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Steel.Version:Claw clamps black oxidised.
Clamping ball bright.Note:The clamping unit is used for connecting to the workpiece. The clamping ball can be attached to several points on the claw clamp. This enables flexible adjustment of the claw clamp.
The clamping balls can be exchanged between the two system sizes.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

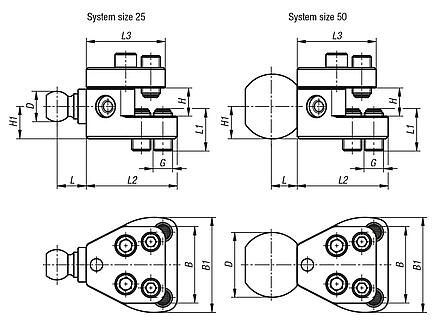

| Order No. | Size | B | B1 | D
| G | H
clamping range
| H1 | L | L1 | L2 | L3 | CAD | Acc. | Price | Order |
|---|
| K1192.258076 | 25 | 64 | 79 | 25,4 | M16 | 0-45 | 27 | 25 | 25 | 76 | 66 |  | | on request | | | K1192.508076 | 50 | 64 | 79 | 50 | M16 | 0-45 | 27 | 20 | 25 | 76 | 66 | | | on request | |
