K0047

Latches adjustable fastening holes covered

go back

Item description/product images

DescriptionMaterial:

Steel or stainless steel 1.4301.

Version:Steel trivalent blue passivated.
Stainless steel bright.
Note:Adjustable latches are secure locking systems for industrial applications. By exceeding the dead centre they resist vibration.

After the hook is engaged with the catch plate, the parts to be locked can be drawn together by up to 5 mm by pushing the lever down.
To compensate for tolerances or to create enough tension, the hook length can be adjusted using the M5 threaded spindle.

The latches can be screwed down or riveted.

Any catch plate can be combined with any latch.

Order required catch plate version separately.

The retaining force F1 applies to the latch, not the catch plate.
Accessory:Catch plate K0046.Drawing reference:

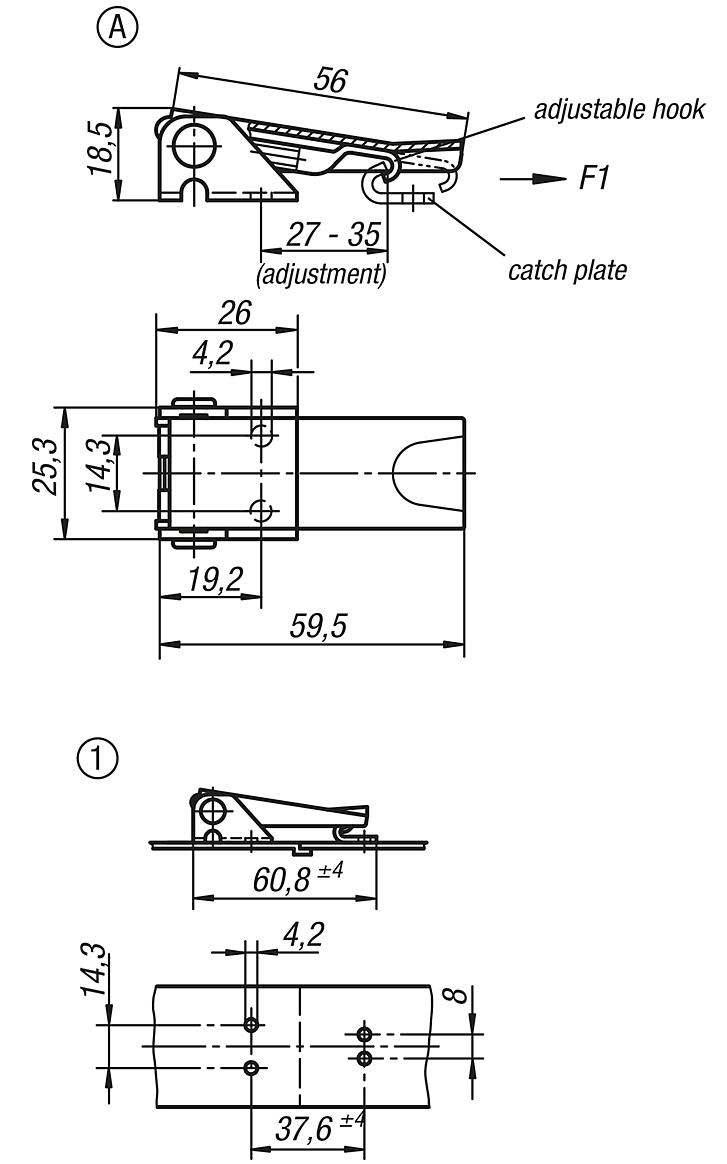

Form A standard
Form B with safety catch
Form C with padlock bracket

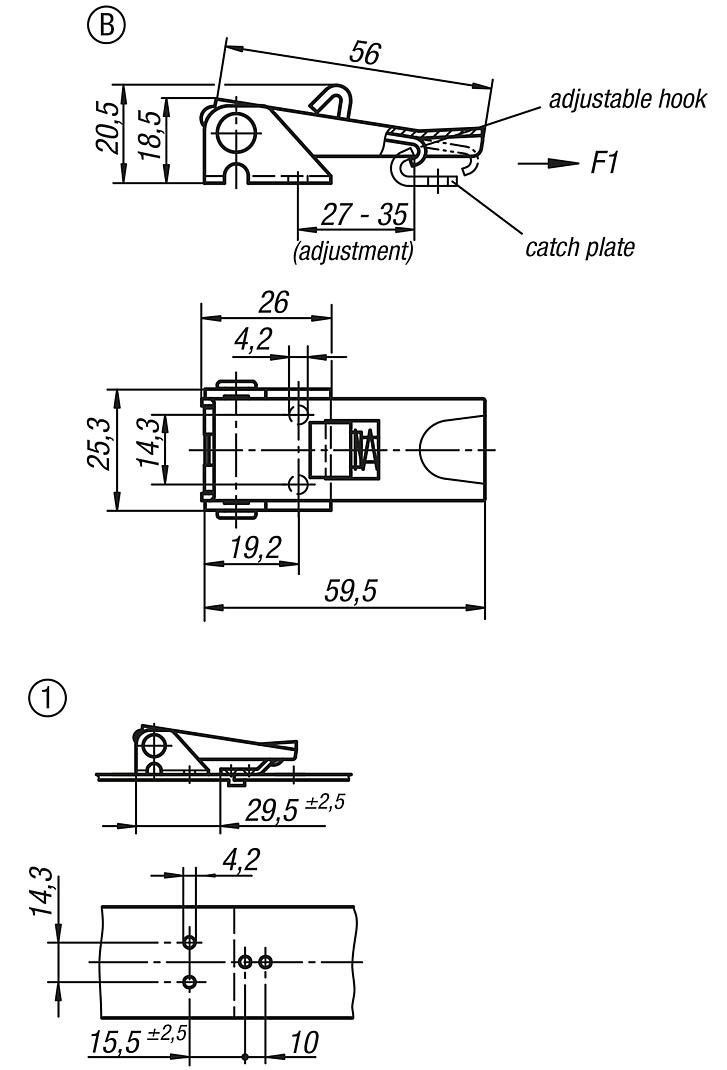

1) Hole arrangements for assembly with catch plate
Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet K0047 Latches adjustablefastening holes covered 177 kB

Drawings (total overview)

Latches adjustablefastening holes covered

Latches adjustable, fastening holes covered, Form A

More information

Drawings

Latches adjustable, fastening holes covered, Form A

Item selection/filter

Order No.Main
material
FormRetaining
force
F1 N
CADAcc.PriceOrder
K0047.14206010.002A1000 on request
K0047.142060222012-25061A1000 on request

Latches adjustable, fastening holes covered, Form B

More information

Drawings

Latches adjustable, fastening holes covered, Form B

Item selection/filter

Order No.Main
material
FormRetaining
force
F1 N
CADAcc.PriceOrder
K0047.24206010.002B1000 on request
K0047.242060222012-25061B1000 on request

Latches adjustable, fastening holes covered, Form C

More information

Drawings

Latches adjustable, fastening holes covered, Form C

Item selection/filter

Order No.Main
material
FormRetaining
force
F1 N
CADAcc.PriceOrder
K0047.34206010.002C1000 on request
K0047.342060222012-25061C1000 on request
