K1720Telescopic slides, steel for side mounting, full extension,... |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Slides steel.
Ball cages steel.
Balls, steel.Version:Slides electro zinc-plated.
Ball cages, electro zinc-plated.
Balls hardened.Note for ordering:Sold individually.Note:By telescopic slides with full extension, the travel is roughly equal to the installed length, which ensures greater comfort and accessibility. The dynamic load capacity of the telescopic slides indicates the maximum load rating of a vertically mounted slide pair when the entire extension length is used. The load capacities specified refer to the maximum value for 10,000 cycles.
The load capacity is ca. 70% lower by horizontal mounting.
The head height of the fastening screws should not exceed 4,8 mm otherwise there is a risk of collision with other parts of the slide.
These telescopic slides cannot be ordered as a pair.
If single sided latching is desired, a combination with K1719 is possible.Temperature range:-20 °C - +70 °C.Advantages:Suitable for flat mounting
For heavy duty use

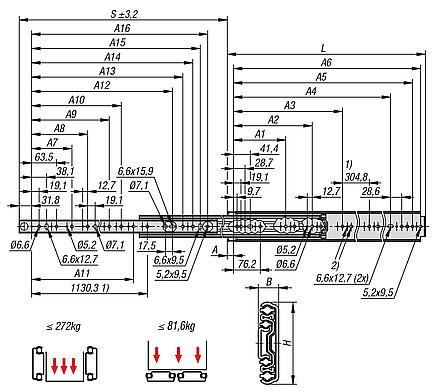

Light runningAccessory:Steel telescopic slides K1719.Note:The maximum load rating refers to a pair of telescopic slides.Drawing reference:1) Mounting hole by K1720.1524 provided
2) Cut-out for carriage bolt DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Order No.
| Assembly | Product type | Loading
per pair
kg | Packaging type | CAD | Acc. | Price | Order |
|---|
| K1720.0254 | side mounting | standard | 272 | packaged individually |  | | 0.00 € | | | K1720.0305 | side mounting | standard | 272 | packaged individually | | | 0.00 € | | | K1720.0356 | side mounting | standard | 272 | packaged individually | | | 0.00 € | | | K1720.0406 | side mounting | standard | 272 | packaged individually | | | 0.00 € | | | K1720.0457 | side mounting | standard | 272 | packaged individually | | | 0.00 € | | | K1720.0508 | side mounting | standard | 272 | packaged individually | | | 0.00 € | | | K1720.0559 | side mounting | standard | 272 | packaged individually | | | 0.00 € | | | K1720.0610 | side mounting | standard | 267 | packaged individually | | | 0.00 € | | | K1720.0660 | side mounting | standard | 264 | packaged individually | | | 0.00 € | | | K1720.0711 | side mounting | standard | 261 | packaged individually | | | 0.00 € | | | K1720.0762 | side mounting | standard | 258 | packaged individually | | | 0.00 € | | | K1720.0813 | side mounting | standard | 256 | packaged individually | | | 0.00 € | | | K1720.0864 | side mounting | standard | 253 | packaged individually | | | 0.00 € | | | K1720.0914 | side mounting | standard | 248 | packaged individually | | | 0.00 € | | | K1720.1016 | side mounting | standard | 237 | packaged individually | | | 0.00 € | | | K1720.1067 | side mounting | standard | 228 | packaged individually | | | 0.00 € | | | K1720.1118 | side mounting | standard | 218 | packaged individually | | | 0.00 € | | | K1720.1220 | side mounting | standard | 204 | packaged individually | | | 0.00 € | | | K1720.1372 | side mounting | standard | 196 | packaged individually | | | 0.00 € | | | K1720.1524 | side mounting | standard | 182 | packaged individually | | | 0.00 € | |
| Order No. | A
| A1 | A2 | A3 | A4 | A5 | A6 | A7 | A8 | A9 | A10 | A11 | A12 | A13 | A14 | A15 | A16 | B | H | Travel
S | L | CAD | Acc. | Price | Order |
|---|
| K1720.0254 | 12,7 | - | - | - | 152,4 | 209,6 | 228,6 | - | - | - | - | - | - | 103,1 | 128,5 | 147,6 | 166,6 | 19,1 | 76,2 | 254 | 254 | | | 0.00 € | | | K1720.0305 | 12,7 | - | - | - | 203,2 | 260,4 | 279,4 | - | - | - | - | - | - | 153,9 | 179,3 | 198,4 | 217,4 | 19,1 | 76,2 | 304,8 | 304,8 | | | 0.00 € | | | K1720.0356 | 12,7 | - | - | - | 254 | 311,2 | 330,2 | - | - | - | - | - | - | 204,7 | 230,1 | 249,2 | 268,2 | 19,1 | 76,2 | 355,6 | 355,6 | | | 0.00 € | | | K1720.0406 | 12,7 | - | - | - | 304,8 | 362 | 381 | 127 | - | - | - | - | - | 255,5 | 280,9 | 300 | 319 | 19,1 | 76,2 | 406,4 | 406,4 | | | 0.00 € | | | K1720.0457 | 12,7 | - | - | - | 355,6 | 412,8 | 431,8 | 127 | - | - | - | - | 246,1 | 306,3 | 331,7 | 350,8 | 369,8 | 19,1 | 76,2 | 457,2 | 457,2 | | | 0.00 € | | | K1720.0508 | 12,7 | - | - | - | 406,4 | 463,6 | 482,6 | 127 | 190,5 | - | - | - | 296,9 | 357,1 | 382,5 | 401,6 | 420,6 | 19,1 | 76,2 | 508 | 508 | | | 0.00 € | | | K1720.0559 | 12,7 | - | - | - | 457,2 | 514,4 | 533,4 | 127 | 190,5 | - | - | - | 347,7 | 407,9 | 433,3 | 452,4 | 471,4 | 19,1 | 76,2 | 558,8 | 558,8 | | | 0.00 € | | | K1720.0610 | 12,7 | - | - | - | 508 | 565,2 | 584,2 | 127 | 190,5 | - | - | - | 398,5 | 458,7 | 484,1 | 503,2 | 522,2 | 19,1 | 76,2 | 609,6 | 609,6 | | | 0.00 € | | | K1720.0660 | 12,7 | - | - | - | 558,8 | 616 | 635 | 127 | 190,5 | - | - | - | 449,3 | 509,5 | 534,9 | 554 | 573 | 19,1 | 76,2 | 660,4 | 660,4 | | | 0.00 € | | | K1720.0711 | 12,7 | - | - | - | 609,6 | 666,8 | 685,8 | 127 | 190,5 | - | - | - | 500,1 | 560,3 | 585,7 | 604,8 | 623,8 | 19,1 | 76,2 | 711,2 | 711,2 | | | 0.00 € | | | K1720.0762 | 12,7 | 235 | - | 501,7 | 660,4 | 717,6 | 736,6 | 127 | 190,5 | 368,3 | - | - | 550,9 | 611,1 | 636,5 | 655,6 | 674,6 | 19,1 | 76,2 | 762 | 762 | | | 0.00 € | | | K1720.0813 | 12,7 | 235 | 393,7 | 552,5 | 711,2 | 768,4 | 787,4 | 127 | 190,5 | 368,3 | - | - | 601,7 | 661,9 | 687,3 | 706,4 | 725,4 | 19,1 | 76,2 | 812,8 | 812,8 | | | 0.00 € | | | K1720.0864 | 12,7 | 235 | 419,1 | 603,3 | 762 | 819,2 | 838,2 | 127 | 190,5 | 368,3 | 469,9 | - | 652,5 | 712,7 | 738,1 | 757,2 | 776,2 | 19,1 | 76,2 | 863,6 | 863,6 | | | 0.00 € | | | K1720.0914 | 12,7 | 235 | 444,5 | 654,1 | 812,8 | 870 | 889 | 127 | 190,5 | 368,3 | 520,7 | - | 703,3 | 763,5 | 788,9 | 808 | 827 | 19,1 | 76,2 | 914,4 | 914,4 | | | 0.00 € | | | K1720.1016 | 12,7 | 235 | 546,1 | 755,7 | 914,4 | 971,6 | 990,6 | 127 | 190,5 | 368,3 | 520,7 | - | 804,9 | 865,1 | 890,5 | 909,6 | 928,6 | 19,1 | 76,2 | 1016 | 1016 | | | 0.00 € | | | K1720.1067 | 12,7 | 235 | 546,1 | 806,5 | 965,2 | 1022,4 | 1041,4 | 127 | 190,5 | 368,3 | 520,7 | - | 855,7 | 915,9 | 941,3 | 960,4 | 979,4 | 19,1 | 76,2 | 1066,8 | 1066,8 | | | 0.00 € | | | K1720.1118 | 12,7 | 235 | 546,1 | 857,3 | 1016 | 1073,2 | 1092,2 | 127 | 190,5 | 368,3 | 520,7 | - | 906,5 | 966,7 | 992,1 | 1011,2 | 1030,2 | 19,1 | 76,2 | 1117,6 | 1117,6 | | | 0.00 € | | | K1720.1220 | 12,7 | 235 | 596,9 | 958,9 | 1117,6 | 1174,8 | 1193,8 | 127 | 190,5 | 368,3 | 520,7 | 825,5 | 1008,1 | 1068,3 | 1093,7 | 1112,8 | 1131,8 | 19,1 | 76,2 | 1219,2 | 1219,2 | | | 0.00 € | | | K1720.1372 | 12,7 | 235 | 596,9 | 958,9 | 1270 | 1327,2 | 1346,2 | 127 | 190,5 | 368,3 | 520,7 | 825,5 | 1160,5 | 1220,8 | 1246,2 | 1265,2 | 1284,2 | 19,1 | 76,2 | 1371,6 | 1371,6 | | | 0.00 € | | | K1720.1524 | 12,7 | 235 | 596,9 | 958,9 | 1422,4 | 1479,6 | 1498,6 | 127 | 190,5 | 368,3 | 520,7 | 825,5 | 1312,9 | 1373,1 | 1398,5 | 1417,6 | 1436,6 | 19,1 | 76,2 | 1524 | 1524 | | | 0.00 € | |
