K1164Self-aligning pads self-righting |
go back |
|
|
DescriptionMaterial:Form C and F:
Ball steel, ball seat high-carbon steel.
Form G and J:
Ball high-carbon steel, ball seat steel.Version:Form C and F:
Ball hardened and black oxidised, ball seat phosphated.
Form G and J:

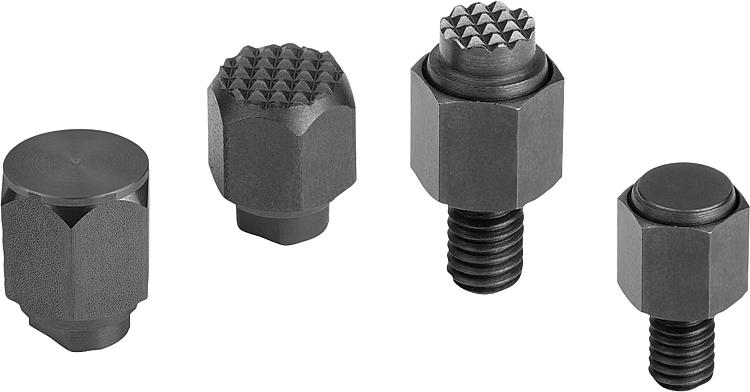

Ball phosphated, ball seat hardened and black oxidised.Note:The self-aligning pads serve as stops, rests and thrust pads in fixture construction.
The seating face returns to the start position when the load is removed.

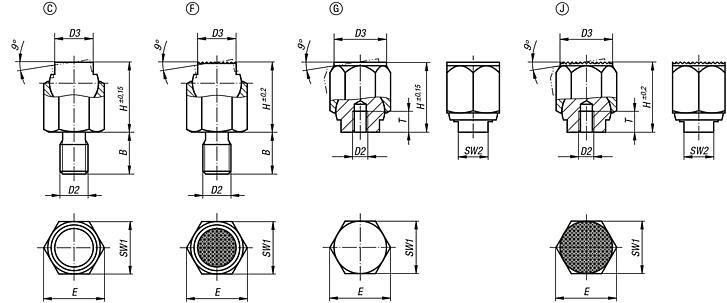

Ball secured against rotation.Drawing reference:Form C: external thread, flattened ball, smooth
Form F: external thread, flattened ball, diamond grip
Form G: press fit, flattened ball, smooth

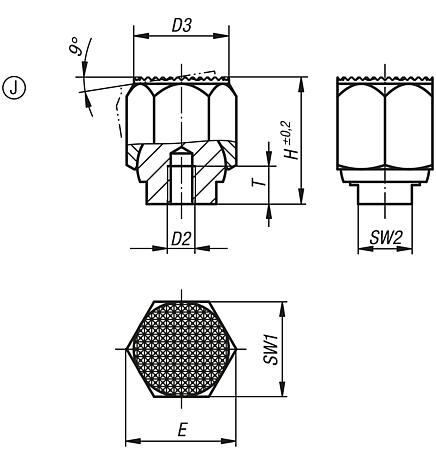

Form J: press fit, flattened ball, diamond grip DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Drawings (total overview) |

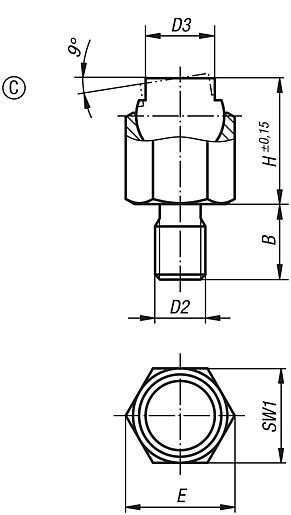

Self-aligning pads, self-righting, Form C, with external thread, flattened ball, smooth |
More information |
| Order No. | Form | B | D2 | D3 | H | E | SW1 | Ball-Ø | Load rating
max. kN
(static load only) | CAD | Acc. | Price | Order |
|---|
| K1164.106 | C | 9 | M6 | 7 | 13 | 11,5 | 10 | 9 | 8 |  | | 0.00 € | | | K1164.108 | C | 12 | M8 | 9,5 | 18 | 15 | 13 | 12 | 16 | | | 0.00 € | | | K1164.110 | C | 15 | M10 | 14 | 25 | 21,9 | 19 | 17 | 32 | | | 0.00 € | | | K1164.112 | C | 18 | M12 | 20 | 36 | 31,2 | 27 | 25 | 64 | | | 0.00 € | | | K1164.116 | C | 24 | M16 | 22 | 40 | 34,6 | 30 | 28 | 90 | | | 0.00 € | |
|
Self-aligning pads, self-righting, Form F, with external thread, flattened ball, with diamond grip |
More information |
| Order No. | Form | B | D2 | D3 | H | E | SW1 | Ball-Ø | Load rating
max. kN
(static load only) | CAD | Acc. | Price | Order |
|---|
| K1164.306 | F | 9 | M6 | 7 | 13 | 11,5 | 10 | 9 | 8 | | | 0.00 € | | | K1164.308 | F | 12 | M8 | 9,5 | 18 | 15 | 13 | 12 | 16 | | | 0.00 € | | | K1164.310 | F | 15 | M10 | 14 | 25 | 21,9 | 19 | 17 | 32 | | | 0.00 € | | | K1164.312 | F | 18 | M12 | 20 | 36 | 31,2 | 27 | 25 | 64 | | | 0.00 € | | | K1164.316 | F | 24 | M16 | 22 | 40 | 34,6 | 30 | 28 | 90 | | | 0.00 € | |
|
|
|
