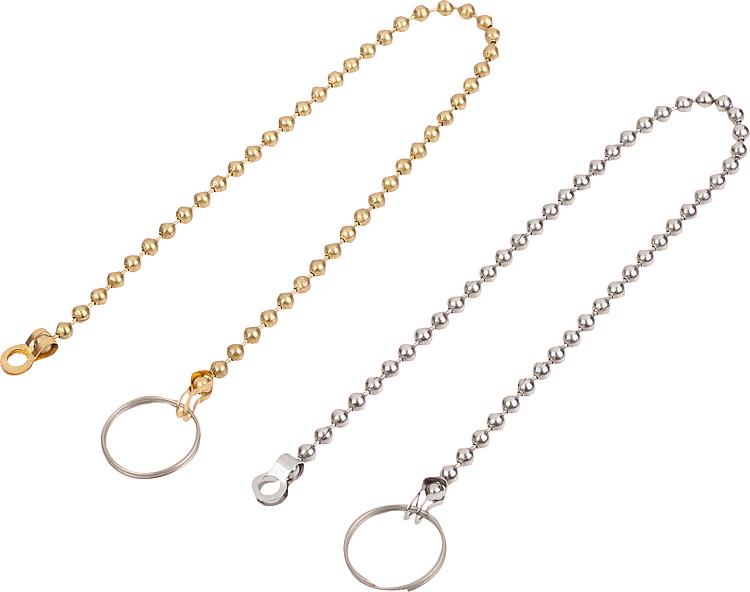

K1125_BBall chains, Form B, with key ring |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Chain stainless steel.
Key ring stainless steel.Note:If no length is specified 1000 mm will be supplied.Drawing reference:Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | Form | Version 1 | Main
material | L | D | D1 | CAD | Acc. | Price | Order |
|---|
| K1125.015X160 | B | with key ring | brass | 160 | 15 | 1 |  | | 0.00 € | | | K1125.019X160 | B | with key ring | brass | 160 | 19 | 1 | | | 0.00 € | | | K1125.023X160 | B | with key ring | brass | 160 | 23 | 1,2 | | | 0.00 € | | | K1125.028X160 | B | with key ring | brass | 160 | 28 | 1,7 | | | 0.00 € | | | K1125.015X320 | B | with key ring | brass | 320 | 15 | 1 | | | 0.00 € | | | K1125.019X320 | B | with key ring | brass | 320 | 19 | 1 | | | 0.00 € | | | K1125.023X320 | B | with key ring | brass | 320 | 23 | 1,2 | | | 0.00 € | | | K1125.028X320 | B | with key ring | brass | 320 | 28 | 1,7 | | | 0.00 € | | | K1125.015X500 | B | with key ring | brass | 500 | 15 | 1 | | | 0.00 € | | | K1125.019X500 | B | with key ring | brass | 500 | 19 | 1 | | | 0.00 € | | | K1125.023X500 | B | with key ring | brass | 500 | 23 | 1,2 | | | 0.00 € | | | K1125.028X500 | B | with key ring | brass | 500 | 28 | 1,7 | | | 0.00 € | | | K1125.015X1000 | B | with key ring | brass | 1000 | 15 | 1 | | | 0.00 € | | | K1125.019X1000 | B | with key ring | brass | 1000 | 19 | 1 | | | 0.00 € | | | K1125.023X1000 | B | with key ring | brass | 1000 | 23 | 1,2 | | | 0.00 € | | | K1125.028X1000 | B | with key ring | brass | 1000 | 28 | 1,7 | | | 0.00 € | | | K1125.115X160 | B | with key ring | stainless steel | 160 | 15 | 1 | | | 0.00 € | | | K1125.119X160 | B | with key ring | stainless steel | 160 | 19 | 1 | | | 0.00 € | | | K1125.123X160 | B | with key ring | stainless steel | 160 | 23 | 1,2 | | | 0.00 € | | | K1125.128X160 | B | with key ring | stainless steel | 160 | 28 | 1,7 | | | 0.00 € | | | K1125.115X320 | B | with key ring | stainless steel | 320 | 15 | 1 | | | 0.00 € | | | K1125.119X320 | B | with key ring | stainless steel | 320 | 19 | 1 | | | 0.00 € | | | K1125.123X320 | B | with key ring | stainless steel | 320 | 23 | 1,2 | | | 0.00 € | | | K1125.128X320 | B | with key ring | stainless steel | 320 | 28 | 1,7 | | | 0.00 € | | | K1125.115X500 | B | with key ring | stainless steel | 500 | 15 | 1 | | | 0.00 € | | | K1125.119X500 | B | with key ring | stainless steel | 500 | 19 | 1 | | | 0.00 € | | | K1125.123X500 | B | with key ring | stainless steel | 500 | 23 | 1,2 | | | 0.00 € | | | K1125.128X500 | B | with key ring | stainless steel | 500 | 28 | 1,7 | | | 0.00 € | | | K1125.115X1000 | B | with key ring | stainless steel | 1000 | 15 | 1 | | | 0.00 € | | | K1125.119X1000 | B | with key ring | stainless steel | 1000 | 19 | 1 | | | 0.00 € | | | K1125.123X1000 | B | with key ring | stainless steel | 1000 | 23 | 1,2 | | | 0.00 € | | | K1125.128X1000 | B | with key ring | stainless steel | 1000 | 28 | 1,7 | | | 0.00 € | |
