K0359Precision indexing plungers, steel with plastic spherical knob... |
go back |
|
|
DescriptionMaterial:Steel.
Grip ball thermoplastic.Version:Hardened and ground.
Grip ball black grey.Note:The indexing plungers with bushes are a perfect combination for rapid positioning and fixating. The precise design of both the indexing plunger and the bush guarantees high repeat accuracy when assembling two elements.

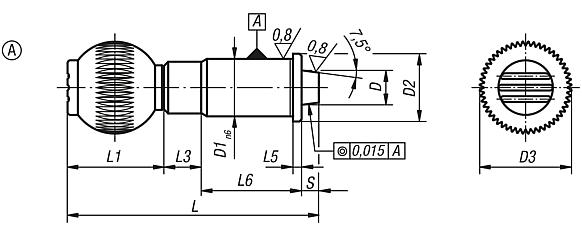

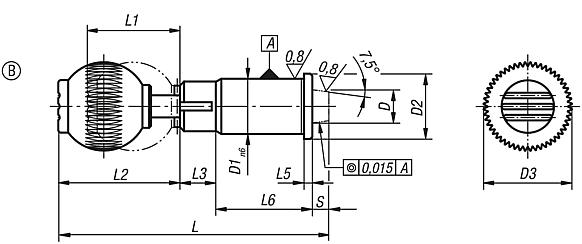

For technical information see assembly and installation instructions.Drawing reference:Form A: standard
Form B: lockable DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

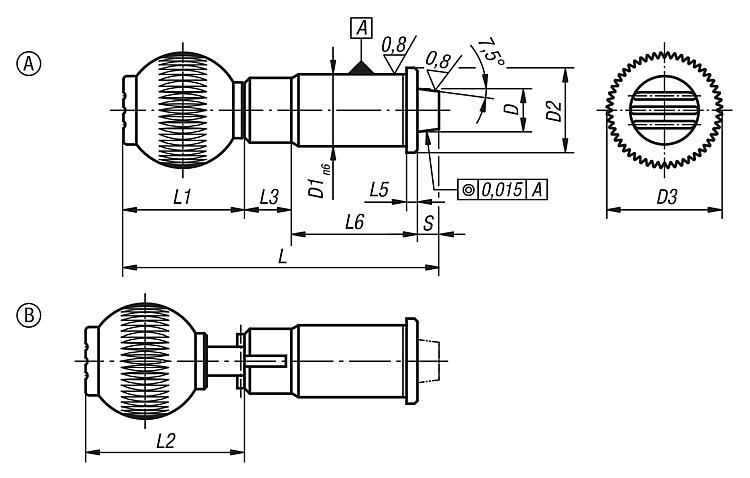

Drawings (total overview) |
|
Precision indexing plungers, steel with plastic spherical knob, tapered indexing pin and locking slot |
More information |
| Order No. | Form | Version 2 | D | D1 | D2 | D3 | L | L1 | L2 | L3 | L5 | L6 | Travel
S | Spring force
initial pressure
F1 approx. N | Spring force
final pressure
F2 approx. N | female thread grip ball | CAD | Acc. | Price | Order |
|---|
| K0359.110 | B | lockable | 10 | 16 | 19 | 25 | 75 | 25 | 30,5 | 13 | 2,5 | 31 | 6 | 19 | 29 | M6 |  | | 0.00 € | | | K0359.112 | B | lockable | 12 | 20 | 23 | 32 | 87 | 33 | 40,5 | 13 | 3 | 35 | 6 | 22 | 35 | M8 | | | 0.00 € | | | K0359.116 | B | lockable | 16 | 25 | 28 | 40 | 102,5 | 41,5 | 49 | 13 | 3 | 42 | 6 | 30 | 50 | M10 | | | 0.00 € | | | K0359.120 | B | lockable | 20 | 30 | 33 | 40 | 110,5 | 41,5 | 49 | 13 | 3 | 50 | 6 | 46 | 63 | M10 | | | 0.00 € | | | K0359.125 | B | lockable | 25 | 38 | 42 | 50 | 130 | 51 | 58,5 | 13 | 3 | 60 | 6 | 39 | 73 | M10 | | | 0.00 € | |
|
