K1674Cam-action indexing plungers with stop |
go back |
|
|
DescriptionProduct description:Cam-action indexing plunger are used where any change in locking position due to lateral forces should be prevented. Turning the grip through 180° retracts the indexing pin, enabling a change in the indexed position. The notch ensures that the grip remains in this position and the indexing pin remains retracted.
A stop at 180° prevents the lever rotating further and the indexing pin from extending again.
The rotation direction is defined by selecting a left or right stop side.Material:Grip 1.0503.
Threaded sleeve and indexing pin free-cutting steel.
Spring 1.4310.
Grip cap thermoplastic PA.Version:Threaded sleeve and grip black oxidised.
Indexing pin hardened, ground and black oxidised.
Spring bright.
Grip cap in various colours:
- black grey RAL 7021
- pure orange RAL 2004
- colza yellow RAL 1021
- traffic red RAL 3020
- signal green RAL 6032
- traffic blue RAL 5017
- light grey RAL 7035Advantages:Turning the grip through 180° retracts the pin.
Optionally available with coloured plastic grip caps.
180° stop with rotation in one direction.On request:Special versions.
Accessory:Mounting bracket K0638.
Positioning bushes K1290, K1839, K1840.
Drawing reference:Form A: without grip cap or locknut
Form B: without grip cap, with locknut
Form C: with grip cap, without locknut
Form D: with grip cap and locknut
1) Stop left
2) Stop right DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Drawings (total overview) |

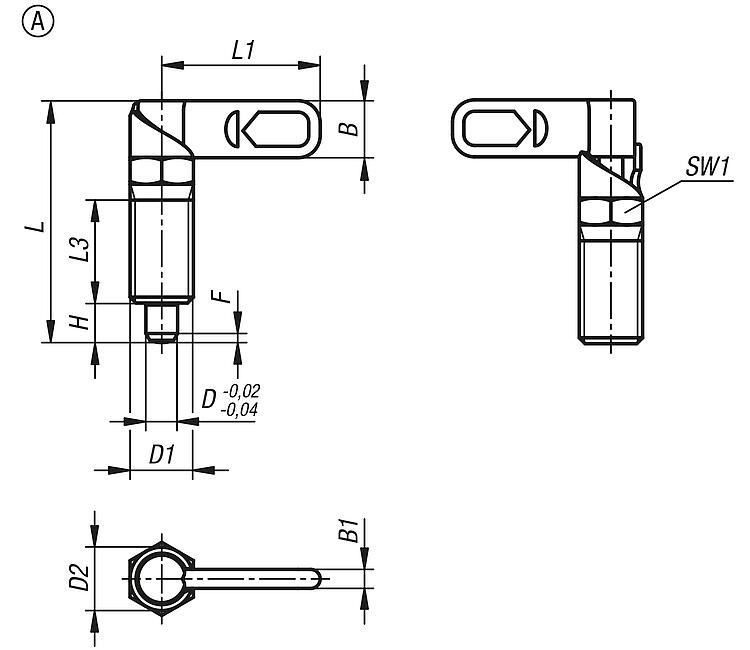

Cam-action indexing plungers with stop, Form A, without grip cap or nut |
More information |
| Order No. | Form | Version 2 | D | D1 | D2 | L | L1 | L3 | B | B1 | H | SW1 | Fx30° | Spring force
initial pressure
F1 approx. N | Spring force
final pressure
F2 approx. N | CAD | Acc. | Price | Order |
|---|
| K1674.1040410 | A | left | 4 | M10 | 10 | 38,5 | 25 | 15 | 9 | 3 | 6 | 10 | 1 | 8 | 14 |  | | 0.00 € | | | K1674.1040510 | A | left | 5 | M10 | 10 | 38,5 | 25 | 15 | 9 | 3 | 6 | 10 | 1,3 | 8 | 14 | | | 0.00 € | | | K1674.1040610 | A | left | 6 | M10 | 10 | 38,5 | 25 | 15 | 9 | 3 | 6 | 10 | 1,8 | 8 | 14 | | | 0.00 € | | | K1674.1040512 | A | left | 5 | M12 | 12 | 47,4 | 30 | 19 | 10,8 | 3,6 | 8 | 12 | 1,3 | 5 | 15 | | | 0.00 € | | | K1674.1040612 | A | left | 6 | M12 | 12 | 47,4 | 30 | 19 | 10,8 | 3,6 | 8 | 12 | 1,8 | 5 | 15 | | | 0.00 € | | | K1674.1040812 | A | left | 8 | M12 | 12 | 47,4 | 30 | 19 | 10,8 | 3,6 | 8 | 12 | 2,3 | 5 | 15 | | | 0.00 € | | | K1674.1040616 | A | left | 6 | M16 | 16 | 61,2 | 40 | 26 | 14,4 | 4,8 | 10 | 16 | 1,8 | 15 | 35 | | | 0.00 € | | | K1674.1040816 | A | left | 8 | M16 | 16 | 61,2 | 40 | 26 | 14,4 | 4,8 | 10 | 16 | 2,3 | 15 | 35 | | | 0.00 € | | | K1674.1041016 | A | left | 10 | M16 | 16 | 61,2 | 40 | 26 | 14,4 | 4,8 | 10 | 16 | 2,8 | 15 | 35 | | | 0.00 € | | | K1674.10408201 | A | left | 8 | M20x1,5 | 20 | 71 | 50 | 30 | 18 | 6 | 12 | 20 | 2,3 | 20 | 60 | | | 0.00 € | | | K1674.10410201 | A | left | 10 | M20x1,5 | 20 | 71 | 50 | 30 | 18 | 6 | 12 | 20 | 2,8 | 20 | 60 | | | 0.00 € | | | K1674.10412201 | A | left | 12 | M20x1,5 | 20 | 71 | 50 | 30 | 18 | 6 | 12 | 20 | 3 | 20 | 60 | | | 0.00 € | | | K1674.2040410 | A | right | 4 | M10 | 10 | 38,5 | 25 | 15 | 9 | 3 | 6 | 10 | 1 | 8 | 14 | | | 0.00 € | | | K1674.2040510 | A | right | 5 | M10 | 10 | 38,5 | 25 | 15 | 9 | 3 | 6 | 10 | 1,3 | 8 | 14 | | | 0.00 € | | | K1674.2040610 | A | right | 6 | M10 | 10 | 38,5 | 25 | 15 | 9 | 3 | 6 | 10 | 1,8 | 8 | 14 | | | 0.00 € | | | K1674.2040512 | A | right | 5 | M12 | 12 | 47,4 | 30 | 19 | 10,8 | 3,6 | 8 | 12 | 1,3 | 5 | 15 | | | 0.00 € | | | K1674.2040612 | A | right | 6 | M12 | 12 | 47,4 | 30 | 19 | 10,8 | 3,6 | 8 | 12 | 1,8 | 5 | 15 | | | 0.00 € | | | K1674.2040812 | A | right | 8 | M12 | 12 | 47,4 | 30 | 19 | 10,8 | 3,6 | 8 | 12 | 2,3 | 5 | 15 | | | 0.00 € | | | K1674.2040616 | A | right | 6 | M16 | 16 | 61,2 | 40 | 26 | 14,4 | 4,8 | 10 | 16 | 1,8 | 15 | 35 | | | 0.00 € | | | K1674.2040816 | A | right | 8 | M16 | 16 | 61,2 | 40 | 26 | 14,4 | 4,8 | 10 | 16 | 2,3 | 15 | 35 | | | 0.00 € | | | K1674.2041016 | A | right | 10 | M16 | 16 | 61,2 | 40 | 26 | 14,4 | 4,8 | 10 | 16 | 2,8 | 15 | 35 | | | 0.00 € | | | K1674.20408201 | A | right | 8 | M20x1,5 | 20 | 71 | 50 | 30 | 18 | 6 | 12 | 20 | 2,3 | 20 | 60 | | | 0.00 € | | | K1674.20410201 | A | right | 10 | M20x1,5 | 20 | 71 | 50 | 30 | 18 | 6 | 12 | 20 | 2,8 | 20 | 60 | | | 0.00 € | | | K1674.20412201 | A | right | 12 | M20x1,5 | 20 | 71 | 50 | 30 | 18 | 6 | 12 | 20 | 3 | 20 | 60 | | | 0.00 € | |
|

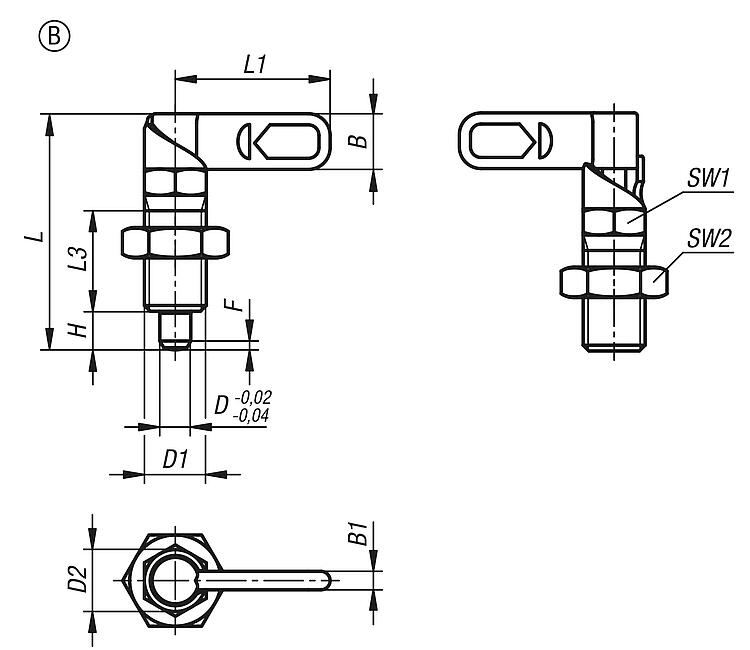

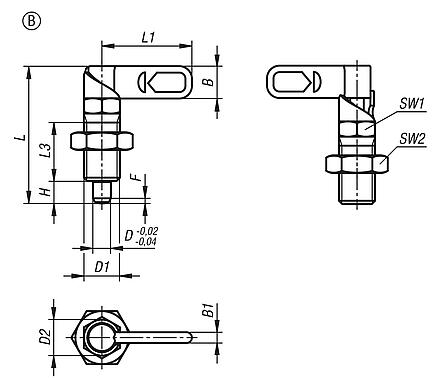

Cam-action indexing plungers with stop, Form B, without grip cap, with nut |
More information |
| Order No. | Form | Version 2 | D | D1 | D2 | L | L1 | L3 | B | B1 | H | SW1 | SW2 | Fx30° | Spring force
initial pressure
F1 approx. N | Spring force
final pressure
F2 approx. N | CAD | Acc. | Price | Order |
|---|
| K1674.1050410 | B | left | 4 | M10 | 10 | 38,5 | 25 | 15 | 9 | 3 | 6 | 10 | 17 | 1 | 8 | 14 | | | 0.00 € | | | K1674.1050510 | B | left | 5 | M10 | 10 | 38,5 | 25 | 15 | 9 | 3 | 6 | 10 | 17 | 1,3 | 8 | 14 | | | 0.00 € | | | K1674.1050610 | B | left | 6 | M10 | 10 | 38,5 | 25 | 15 | 9 | 3 | 6 | 10 | 17 | 1,8 | 8 | 14 | | | 0.00 € | | | K1674.1050512 | B | left | 5 | M12 | 12 | 47,4 | 30 | 19 | 10,8 | 3,6 | 8 | 12 | 19 | 1,3 | 5 | 15 | | | 0.00 € | | | K1674.1050612 | B | left | 6 | M12 | 12 | 47,4 | 30 | 19 | 10,8 | 3,6 | 8 | 12 | 19 | 1,8 | 5 | 15 | | | 0.00 € | | | K1674.1050812 | B | left | 8 | M12 | 12 | 47,4 | 30 | 19 | 10,8 | 3,6 | 8 | 12 | 19 | 2,3 | 5 | 15 | | | 0.00 € | | | K1674.1050616 | B | left | 6 | M16 | 16 | 61,2 | 40 | 26 | 14,4 | 4,8 | 10 | 16 | 24 | 1,8 | 15 | 35 | | | 0.00 € | | | K1674.1050816 | B | left | 8 | M16 | 16 | 61,2 | 40 | 26 | 14,4 | 4,8 | 10 | 16 | 24 | 2,3 | 15 | 35 | | | 0.00 € | | | K1674.1051016 | B | left | 10 | M16 | 16 | 61,2 | 40 | 26 | 14,4 | 4,8 | 10 | 16 | 24 | 2,8 | 15 | 35 | | | 0.00 € | | | K1674.10508201 | B | left | 8 | M20x1,5 | 20 | 71 | 50 | 30 | 18 | 6 | 12 | 20 | 30 | 2,3 | 20 | 60 | | | 0.00 € | | | K1674.10510201 | B | left | 10 | M20x1,5 | 20 | 71 | 50 | 30 | 18 | 6 | 12 | 20 | 30 | 2,8 | 20 | 60 | | | 0.00 € | | | K1674.10512201 | B | left | 12 | M20x1,5 | 20 | 71 | 50 | 30 | 18 | 6 | 12 | 20 | 30 | 3 | 20 | 60 | | | 0.00 € | | | K1674.2050410 | B | right | 4 | M10 | 10 | 38,5 | 25 | 15 | 9 | 3 | 6 | 10 | 17 | 1 | 8 | 14 | | | 0.00 € | | | K1674.2050510 | B | right | 5 | M10 | 10 | 38,5 | 25 | 15 | 9 | 3 | 6 | 10 | 17 | 1,3 | 8 | 14 | | | 0.00 € | | | K1674.2050610 | B | right | 6 | M10 | 10 | 38,5 | 25 | 15 | 9 | 3 | 6 | 10 | 17 | 1,8 | 8 | 14 | | | 0.00 € | | | K1674.2050512 | B | right | 5 | M12 | 12 | 47,4 | 30 | 19 | 10,8 | 3,6 | 8 | 12 | 19 | 1,3 | 5 | 15 | | | 0.00 € | | | K1674.2050612 | B | right | 6 | M12 | 12 | 47,4 | 30 | 19 | 10,8 | 3,6 | 8 | 12 | 19 | 1,8 | 5 | 15 | | | 0.00 € | | | K1674.2050812 | B | right | 8 | M12 | 12 | 47,4 | 30 | 19 | 10,8 | 3,6 | 8 | 12 | 19 | 2,3 | 5 | 15 | | | 0.00 € | | | K1674.2050616 | B | right | 6 | M16 | 16 | 61,2 | 40 | 26 | 14,4 | 4,8 | 10 | 16 | 24 | 1,8 | 15 | 35 | | | 0.00 € | | | K1674.2050816 | B | right | 8 | M16 | 16 | 61,2 | 40 | 26 | 14,4 | 4,8 | 10 | 16 | 24 | 2,3 | 15 | 35 | | | 0.00 € | | | K1674.2051016 | B | right | 10 | M16 | 16 | 61,2 | 40 | 26 | 14,4 | 4,8 | 10 | 16 | 24 | 2,8 | 15 | 35 | | | 0.00 € | | | K1674.20508201 | B | right | 8 | M20x1,5 | 20 | 71 | 50 | 30 | 18 | 6 | 12 | 20 | 30 | 2,3 | 20 | 60 | | | 0.00 € | | | K1674.20510201 | B | right | 10 | M20x1,5 | 20 | 71 | 50 | 30 | 18 | 6 | 12 | 20 | 30 | 2,8 | 20 | 60 | | | 0.00 € | | | K1674.20512201 | B | right | 12 | M20x1,5 | 20 | 71 | 50 | 30 | 18 | 6 | 12 | 20 | 30 | 3 | 20 | 60 | | | 0.00 € | |
|

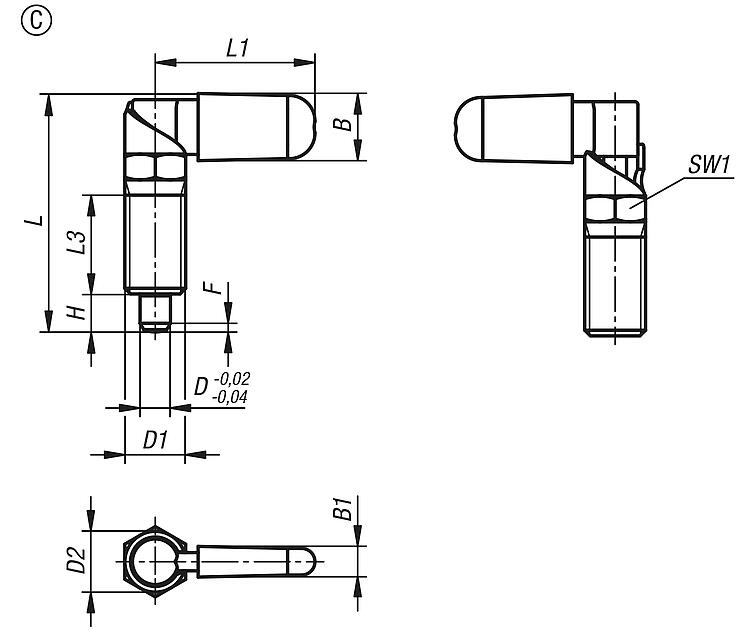

Cam-action indexing plungers with stop, Form C, with grip cap, without nut |
More information |
| Order No. | Form | Version 2 | Component
colour | D | D1 | D2 | L | L1 | L3 | B | B1 | H | SW1 | Fx30° | Spring force
initial pressure
F1 approx. N | Spring force
final pressure
F2 approx. N | CAD | Acc. | Price | Order |
|---|
| K1674.1060410 | C | left | black grey RAL 7021 | 4 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 1 | 8 | 14 | | | 0.00 € | | | K1674.1060510 | C | left | black grey RAL 7021 | 5 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 1,3 | 8 | 14 | | | 0.00 € | | | K1674.1060610 | C | left | black grey RAL 7021 | 6 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 1,8 | 8 | 14 | | | 0.00 € | | | K1674.1060512 | C | left | black grey RAL 7021 | 5 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 1,3 | 5 | 15 | | | 0.00 € | | | K1674.1060612 | C | left | black grey RAL 7021 | 6 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 1,8 | 5 | 15 | | | 0.00 € | | | K1674.1060812 | C | left | black grey RAL 7021 | 8 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 2,3 | 5 | 15 | | | 0.00 € | | | K1674.1060616 | C | left | black grey RAL 7021 | 6 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 1,8 | 15 | 35 | | | 0.00 € | | | K1674.1060816 | C | left | black grey RAL 7021 | 8 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 2,3 | 15 | 35 | | | 0.00 € | | | K1674.1061016 | C | left | black grey RAL 7021 | 10 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 2,8 | 15 | 35 | | | 0.00 € | | | K1674.10608201 | C | left | black grey RAL 7021 | 8 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 2,3 | 20 | 60 | | | 0.00 € | | | K1674.10610201 | C | left | black grey RAL 7021 | 10 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 2,8 | 20 | 60 | | | 0.00 € | | | K1674.10612201 | C | left | black grey RAL 7021 | 12 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 3 | 20 | 60 | | | 0.00 € | | | K1674.10604102 | C | left | orange RAL 2004 | 4 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 1 | 8 | 14 | | | 0.00 € | | | K1674.10605102 | C | left | orange RAL 2004 | 5 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 1,3 | 8 | 14 | | | 0.00 € | | | K1674.10606102 | C | left | orange RAL 2004 | 6 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 1,8 | 8 | 14 | | | 0.00 € | | | K1674.10605122 | C | left | orange RAL 2004 | 5 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 1,3 | 5 | 15 | | | 0.00 € | | | K1674.10606122 | C | left | orange RAL 2004 | 6 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 1,8 | 5 | 15 | | | 0.00 € | | | K1674.10608122 | C | left | orange RAL 2004 | 8 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 2,3 | 5 | 15 | | | 0.00 € | | | K1674.10606162 | C | left | orange RAL 2004 | 6 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 1,8 | 15 | 35 | | | 0.00 € | | | K1674.10608162 | C | left | orange RAL 2004 | 8 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 2,3 | 15 | 35 | | | 0.00 € | | | K1674.10610162 | C | left | orange RAL 2004 | 10 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 2,8 | 15 | 35 | | | 0.00 € | | | K1674.106082012 | C | left | orange RAL 2004 | 8 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 2,3 | 20 | 60 | | | 0.00 € | | | K1674.106102012 | C | left | orange RAL 2004 | 10 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 2,8 | 20 | 60 | | | 0.00 € | | | K1674.106122012 | C | left | orange RAL 2004 | 12 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 3 | 20 | 60 | | | 0.00 € | | | K1674.106041016 | C | left | colza yellow RAL 1021 | 4 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 1 | 8 | 14 | | | 0.00 € | | | K1674.106051016 | C | left | colza yellow RAL 1021 | 5 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 1,3 | 8 | 14 | | | 0.00 € | | | K1674.106061016 | C | left | colza yellow RAL 1021 | 6 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 1,8 | 8 | 14 | | | 0.00 € | | | K1674.106051216 | C | left | colza yellow RAL 1021 | 5 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 1,3 | 5 | 15 | | | 0.00 € | | | K1674.106061216 | C | left | colza yellow RAL 1021 | 6 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 1,8 | 5 | 15 | | | 0.00 € | | | K1674.106081216 | C | left | colza yellow RAL 1021 | 8 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 2,3 | 5 | 15 | | | 0.00 € | | | K1674.106061616 | C | left | colza yellow RAL 1021 | 6 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 1,8 | 15 | 35 | | | 0.00 € | | | K1674.106081616 | C | left | colza yellow RAL 1021 | 8 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 2,3 | 15 | 35 | | | 0.00 € | | | K1674.106101616 | C | left | colza yellow RAL 1021 | 10 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 2,8 | 15 | 35 | | | 0.00 € | | | K1674.1060820116 | C | left | colza yellow RAL 1021 | 8 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 2,3 | 20 | 60 | | | 0.00 € | | | K1674.1061020116 | C | left | colza yellow RAL 1021 | 10 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 2,8 | 20 | 60 | | | 0.00 € | | | K1674.1061220116 | C | left | colza yellow RAL 1021 | 12 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 3 | 20 | 60 | | | 0.00 € | | | K1674.106041084 | C | left | traffic red RAL 3020 | 4 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 1 | 8 | 14 | | | 0.00 € | | | K1674.106051084 | C | left | traffic red RAL 3020 | 5 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 1,3 | 8 | 14 | | | 0.00 € | | | K1674.106061084 | C | left | traffic red RAL 3020 | 6 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 1,8 | 8 | 14 | | | 0.00 € | | | K1674.106051284 | C | left | traffic red RAL 3020 | 5 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 1,3 | 5 | 15 | | | 0.00 € | | | K1674.106061284 | C | left | traffic red RAL 3020 | 6 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 1,8 | 5 | 15 | | | 0.00 € | | | K1674.106081284 | C | left | traffic red RAL 3020 | 8 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 2,3 | 5 | 15 | | | 0.00 € | | | K1674.106061684 | C | left | traffic red RAL 3020 | 6 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 1,8 | 15 | 35 | | | 0.00 € | | | K1674.106081684 | C | left | traffic red RAL 3020 | 8 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 2,3 | 15 | 35 | | | 0.00 € | | | K1674.106101684 | C | left | traffic red RAL 3020 | 10 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 2,8 | 15 | 35 | | | 0.00 € | | | K1674.1060820184 | C | left | traffic red RAL 3020 | 8 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 2,3 | 20 | 60 | | | 0.00 € | | | K1674.1061020184 | C | left | traffic red RAL 3020 | 10 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 2,8 | 20 | 60 | | | 0.00 € | | | K1674.1061220184 | C | left | traffic red RAL 3020 | 12 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 3 | 20 | 60 | | | 0.00 € | | | K1674.106041086 | C | left | signal green RAL 6032 | 4 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 1 | 8 | 14 | | | 0.00 € | | | K1674.106051086 | C | left | signal green RAL 6032 | 5 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 1,3 | 8 | 14 | | | 0.00 € | | | K1674.106061086 | C | left | signal green RAL 6032 | 6 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 1,8 | 8 | 14 | | | 0.00 € | | | K1674.106051286 | C | left | signal green RAL 6032 | 5 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 1,3 | 5 | 15 | | | 0.00 € | | | K1674.106061286 | C | left | signal green RAL 6032 | 6 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 1,8 | 5 | 15 | | | 0.00 € | | | K1674.106081286 | C | left | signal green RAL 6032 | 8 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 2,3 | 5 | 15 | | | 0.00 € | | | K1674.106061686 | C | left | signal green RAL 6032 | 6 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 1,8 | 15 | 35 | | | 0.00 € | | | K1674.106081686 | C | left | signal green RAL 6032 | 8 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 2,3 | 15 | 35 | | | 0.00 € | | | K1674.106101686 | C | left | signal green RAL 6032 | 10 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 2,8 | 15 | 35 | | | 0.00 € | | | K1674.1060820186 | C | left | signal green RAL 6032 | 8 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 2,3 | 20 | 60 | | | 0.00 € | | | K1674.1061020186 | C | left | signal green RAL 6032 | 10 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 2,8 | 20 | 60 | | | 0.00 € | | | K1674.1061220186 | C | left | signal green RAL 6032 | 12 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 3 | 20 | 60 | | | 0.00 € | | | K1674.106041087 | C | left | traffic blue RAL 5017 | 4 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 1 | 8 | 14 | | | 0.00 € | | | K1674.106051087 | C | left | traffic blue RAL 5017 | 5 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 1,3 | 8 | 14 | | | 0.00 € | | | K1674.106061087 | C | left | traffic blue RAL 5017 | 6 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 1,8 | 8 | 14 | | | 0.00 € | | | K1674.106051287 | C | left | traffic blue RAL 5017 | 5 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 1,3 | 5 | 15 | | | 0.00 € | | | K1674.106061287 | C | left | traffic blue RAL 5017 | 6 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 1,8 | 5 | 15 | | | 0.00 € | | | K1674.106081287 | C | left | traffic blue RAL 5017 | 8 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 2,3 | 5 | 15 | | | 0.00 € | | | K1674.106061687 | C | left | traffic blue RAL 5017 | 6 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 1,8 | 15 | 35 | | | 0.00 € | | | K1674.106081687 | C | left | traffic blue RAL 5017 | 8 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 2,3 | 15 | 35 | | | 0.00 € | | | K1674.106101687 | C | left | traffic blue RAL 5017 | 10 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 2,8 | 15 | 35 | | | 0.00 € | | | K1674.1060820187 | C | left | traffic blue RAL 5017 | 8 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 2,3 | 20 | 60 | | | 0.00 € | | | K1674.1061020187 | C | left | traffic blue RAL 5017 | 10 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 2,8 | 20 | 60 | | | 0.00 € | | | K1674.1061220187 | C | left | traffic blue RAL 5017 | 12 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 3 | 20 | 60 | | | 0.00 € | | | K1674.106041088 | C | left | light grey RAL 7035 | 4 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 1 | 8 | 14 | | | 0.00 € | | | K1674.106051088 | C | left | light grey RAL 7035 | 5 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 1,3 | 8 | 14 | | | 0.00 € | | | K1674.106061088 | C | left | light grey RAL 7035 | 6 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 1,8 | 8 | 14 | | | 0.00 € | | | K1674.106051288 | C | left | light grey RAL 7035 | 5 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 1,3 | 5 | 15 | | | 0.00 € | | | K1674.106061288 | C | left | light grey RAL 7035 | 6 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 1,8 | 5 | 15 | | | 0.00 € | | | K1674.106081288 | C | left | light grey RAL 7035 | 8 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 2,3 | 5 | 15 | | | 0.00 € | | | K1674.106061688 | C | left | light grey RAL 7035 | 6 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 1,8 | 15 | 35 | | | 0.00 € | | | K1674.106081688 | C | left | light grey RAL 7035 | 8 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 2,3 | 15 | 35 | | | 0.00 € | | | K1674.106101688 | C | left | light grey RAL 7035 | 10 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 2,8 | 15 | 35 | | | 0.00 € | | | K1674.1060820188 | C | left | light grey RAL 7035 | 8 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 2,3 | 20 | 60 | | | 0.00 € | | | K1674.1061020188 | C | left | light grey RAL 7035 | 10 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 2,8 | 20 | 60 | | | 0.00 € | | | K1674.1061220188 | C | left | light grey RAL 7035 | 12 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 3 | 20 | 60 | | | 0.00 € | | | K1674.2060410 | C | right | black grey RAL 7021 | 4 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 1 | 8 | 14 | | | 0.00 € | | | K1674.2060510 | C | right | black grey RAL 7021 | 5 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 1,3 | 8 | 14 | | | 0.00 € | | | K1674.2060610 | C | right | black grey RAL 7021 | 6 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 1,8 | 8 | 14 | | | 0.00 € | | | K1674.2060512 | C | right | black grey RAL 7021 | 5 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 1,3 | 5 | 15 | | | 0.00 € | | | K1674.2060612 | C | right | black grey RAL 7021 | 6 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 1,8 | 5 | 15 | | | 0.00 € | | | K1674.2060812 | C | right | black grey RAL 7021 | 8 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 2,3 | 5 | 15 | | | 0.00 € | | | K1674.2060616 | C | right | black grey RAL 7021 | 6 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 1,8 | 15 | 35 | | | 0.00 € | | | K1674.2060816 | C | right | black grey RAL 7021 | 8 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 2,3 | 15 | 35 | | | 0.00 € | | | K1674.2061016 | C | right | black grey RAL 7021 | 10 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 2,8 | 15 | 35 | | | 0.00 € | | | K1674.20608201 | C | right | black grey RAL 7021 | 8 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 2,3 | 20 | 60 | | | 0.00 € | | | K1674.20610201 | C | right | black grey RAL 7021 | 10 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 2,8 | 20 | 60 | | | 0.00 € | | | K1674.20612201 | C | right | black grey RAL 7021 | 12 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 3 | 20 | 60 | | | 0.00 € | | | K1674.20604102 | C | right | orange RAL 2004 | 4 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 1 | 8 | 14 | | | 0.00 € | | | K1674.20605102 | C | right | orange RAL 2004 | 5 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 1,3 | 8 | 14 | | | 0.00 € | | | K1674.20606102 | C | right | orange RAL 2004 | 6 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 1,8 | 8 | 14 | | | 0.00 € | | | K1674.20605122 | C | right | orange RAL 2004 | 5 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 1,3 | 5 | 15 | | | 0.00 € | | | K1674.20606122 | C | right | orange RAL 2004 | 6 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 1,8 | 5 | 15 | | | 0.00 € | | | K1674.20608122 | C | right | orange RAL 2004 | 8 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 2,3 | 5 | 15 | | | 0.00 € | | | K1674.20606162 | C | right | orange RAL 2004 | 6 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 1,8 | 15 | 35 | | | 0.00 € | | | K1674.20608162 | C | right | orange RAL 2004 | 8 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 2,3 | 15 | 35 | | | 0.00 € | | | K1674.20610162 | C | right | orange RAL 2004 | 10 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 2,8 | 15 | 35 | | | 0.00 € | | | K1674.206082012 | C | right | orange RAL 2004 | 8 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 2,3 | 20 | 60 | | | 0.00 € | | | K1674.206102012 | C | right | orange RAL 2004 | 10 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 2,8 | 20 | 60 | | | 0.00 € | | | K1674.206122012 | C | right | orange RAL 2004 | 12 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 3 | 20 | 60 | | | 0.00 € | | | K1674.206041016 | C | right | colza yellow RAL 1021 | 4 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 1 | 8 | 14 | | | 0.00 € | | | K1674.206051016 | C | right | colza yellow RAL 1021 | 5 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 1,3 | 8 | 14 | | | 0.00 € | | | K1674.206061016 | C | right | colza yellow RAL 1021 | 6 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 1,8 | 8 | 14 | | | 0.00 € | | | K1674.206051216 | C | right | colza yellow RAL 1021 | 5 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 1,3 | 5 | 15 | | | 0.00 € | | | K1674.206061216 | C | right | colza yellow RAL 1021 | 6 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 1,8 | 5 | 15 | | | 0.00 € | | | K1674.206081216 | C | right | colza yellow RAL 1021 | 8 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 2,3 | 5 | 15 | | | 0.00 € | | | K1674.206061616 | C | right | colza yellow RAL 1021 | 6 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 1,8 | 15 | 35 | | | 0.00 € | | | K1674.206081616 | C | right | colza yellow RAL 1021 | 8 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 2,3 | 15 | 35 | | | 0.00 € | | | K1674.206101616 | C | right | colza yellow RAL 1021 | 10 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 2,8 | 15 | 35 | | | 0.00 € | | | K1674.2060820116 | C | right | colza yellow RAL 1021 | 8 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 2,3 | 20 | 60 | | | 0.00 € | | | K1674.2061020116 | C | right | colza yellow RAL 1021 | 10 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 2,8 | 20 | 60 | | | 0.00 € | | | K1674.2061220116 | C | right | colza yellow RAL 1021 | 12 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 3 | 20 | 60 | | | 0.00 € | | | K1674.206041084 | C | right | traffic red RAL 3020 | 4 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 1 | 8 | 14 | | | 0.00 € | | | K1674.206051084 | C | right | traffic red RAL 3020 | 5 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 1,3 | 8 | 14 | | | 0.00 € | | | K1674.206061084 | C | right | traffic red RAL 3020 | 6 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 1,8 | 8 | 14 | | | 0.00 € | | | K1674.206051284 | C | right | traffic red RAL 3020 | 5 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 1,3 | 5 | 15 | | | 0.00 € | | | K1674.206061284 | C | right | traffic red RAL 3020 | 6 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 1,8 | 5 | 15 | | | 0.00 € | | | K1674.206081284 | C | right | traffic red RAL 3020 | 8 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 2,3 | 5 | 15 | | | 0.00 € | | | K1674.206061684 | C | right | traffic red RAL 3020 | 6 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 1,8 | 15 | 35 | | | 0.00 € | | | K1674.206081684 | C | right | traffic red RAL 3020 | 8 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 2,3 | 15 | 35 | | | 0.00 € | | | K1674.206101684 | C | right | traffic red RAL 3020 | 10 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 2,8 | 15 | 35 | | | 0.00 € | | | K1674.2060820184 | C | right | traffic red RAL 3020 | 8 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 2,3 | 20 | 60 | | | 0.00 € | | | K1674.2061020184 | C | right | traffic red RAL 3020 | 10 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 2,8 | 20 | 60 | | | 0.00 € | | | K1674.2061220184 | C | right | traffic red RAL 3020 | 12 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 3 | 20 | 60 | | | 0.00 € | | | K1674.206041086 | C | right | signal green RAL 6032 | 4 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 1 | 8 | 14 | | | 0.00 € | | | K1674.206051086 | C | right | signal green RAL 6032 | 5 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 1,3 | 8 | 14 | | | 0.00 € | | | K1674.206061086 | C | right | signal green RAL 6032 | 6 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 1,8 | 8 | 14 | | | 0.00 € | | | K1674.206051286 | C | right | signal green RAL 6032 | 5 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 1,3 | 5 | 15 | | | 0.00 € | | | K1674.206061286 | C | right | signal green RAL 6032 | 6 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 1,8 | 5 | 15 | | | 0.00 € | | | K1674.206081286 | C | right | signal green RAL 6032 | 8 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 2,3 | 5 | 15 | | | 0.00 € | | | K1674.206061686 | C | right | signal green RAL 6032 | 6 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 1,8 | 15 | 35 | | | 0.00 € | | | K1674.206081686 | C | right | signal green RAL 6032 | 8 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 2,3 | 15 | 35 | | | 0.00 € | | | K1674.206101686 | C | right | signal green RAL 6032 | 10 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 2,8 | 15 | 35 | | | 0.00 € | | | K1674.2060820186 | C | right | signal green RAL 6032 | 8 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 2,3 | 20 | 60 | | | 0.00 € | | | K1674.2061020186 | C | right | signal green RAL 6032 | 10 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 2,8 | 20 | 60 | | | 0.00 € | | | K1674.2061220186 | C | right | signal green RAL 6032 | 12 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 3 | 20 | 60 | | | 0.00 € | | | K1674.206041087 | C | right | traffic blue RAL 5017 | 4 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 1 | 8 | 14 | | | 0.00 € | | | K1674.206051087 | C | right | traffic blue RAL 5017 | 5 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 1,3 | 8 | 14 | | | 0.00 € | | | K1674.206061087 | C | right | traffic blue RAL 5017 | 6 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 1,8 | 8 | 14 | | | 0.00 € | | | K1674.206051287 | C | right | traffic blue RAL 5017 | 5 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 1,3 | 5 | 15 | | | 0.00 € | | | K1674.206061287 | C | right | traffic blue RAL 5017 | 6 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 1,8 | 5 | 15 | | | 0.00 € | | | K1674.206081287 | C | right | traffic blue RAL 5017 | 8 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 2,3 | 5 | 15 | | | 0.00 € | | | K1674.206061687 | C | right | traffic blue RAL 5017 | 6 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 1,8 | 15 | 35 | | | 0.00 € | | | K1674.206081687 | C | right | traffic blue RAL 5017 | 8 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 2,3 | 15 | 35 | | | 0.00 € | | | K1674.206101687 | C | right | traffic blue RAL 5017 | 10 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 2,8 | 15 | 35 | | | 0.00 € | | | K1674.2060820187 | C | right | traffic blue RAL 5017 | 8 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 2,3 | 20 | 60 | | | 0.00 € | | | K1674.2061020187 | C | right | traffic blue RAL 5017 | 10 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 2,8 | 20 | 60 | | | 0.00 € | | | K1674.2061220187 | C | right | traffic blue RAL 5017 | 12 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 3 | 20 | 60 | | | 0.00 € | | | K1674.206041088 | C | right | light grey RAL 7035 | 4 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 1 | 8 | 14 | | | 0.00 € | | | K1674.206051088 | C | right | light grey RAL 7035 | 5 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 1,3 | 8 | 14 | | | 0.00 € | | | K1674.206061088 | C | right | light grey RAL 7035 | 6 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 1,8 | 8 | 14 | | | 0.00 € | | | K1674.206051288 | C | right | light grey RAL 7035 | 5 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 1,3 | 5 | 15 | | | 0.00 € | | | K1674.206061288 | C | right | light grey RAL 7035 | 6 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 1,8 | 5 | 15 | | | 0.00 € | | | K1674.206081288 | C | right | light grey RAL 7035 | 8 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 2,3 | 5 | 15 | | | 0.00 € | | | K1674.206061688 | C | right | light grey RAL 7035 | 6 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 1,8 | 15 | 35 | | | 0.00 € | | | K1674.206081688 | C | right | light grey RAL 7035 | 8 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 2,3 | 15 | 35 | | | 0.00 € | | | K1674.206101688 | C | right | light grey RAL 7035 | 10 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 2,8 | 15 | 35 | | | 0.00 € | | | K1674.2060820188 | C | right | light grey RAL 7035 | 8 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 2,3 | 20 | 60 | | | 0.00 € | | | K1674.2061020188 | C | right | light grey RAL 7035 | 10 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 2,8 | 20 | 60 | | | 0.00 € | | | K1674.2061220188 | C | right | light grey RAL 7035 | 12 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 3 | 20 | 60 | | | 0.00 € | |
|

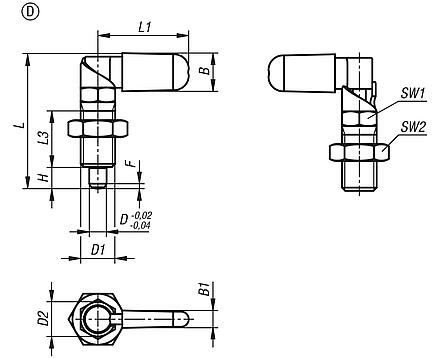

Cam-action indexing plungers with stop, Form D, with grip cap and nut |
More information |
| Order No. | Form | Version 2 | Component
colour | D | D1 | D2 | L | L1 | L3 | B | B1 | H | SW1 | SW2 | Fx30° | Spring force
initial pressure
F1 approx. N | Spring force
final pressure
F2 approx. N | CAD | Acc. | Price | Order |
|---|
| K1674.1070410 | D | left | black grey RAL 7021 | 4 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 17 | 1 | 8 | 14 | | | 0.00 € | | | K1674.1070510 | D | left | black grey RAL 7021 | 5 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 17 | 1,3 | 8 | 14 | | | 0.00 € | | | K1674.1070610 | D | left | black grey RAL 7021 | 6 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 17 | 1,8 | 8 | 14 | | | 0.00 € | | | K1674.1070512 | D | left | black grey RAL 7021 | 5 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 19 | 1,3 | 5 | 15 | | | 0.00 € | | | K1674.1070612 | D | left | black grey RAL 7021 | 6 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 19 | 1,8 | 5 | 15 | | | 0.00 € | | | K1674.1070812 | D | left | black grey RAL 7021 | 8 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 19 | 2,3 | 5 | 15 | | | 0.00 € | | | K1674.1070616 | D | left | black grey RAL 7021 | 6 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 24 | 1,8 | 15 | 35 | | | 0.00 € | | | K1674.1070816 | D | left | black grey RAL 7021 | 8 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 24 | 2,3 | 15 | 35 | | | 0.00 € | | | K1674.1071016 | D | left | black grey RAL 7021 | 10 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 24 | 2,8 | 15 | 35 | | | 0.00 € | | | K1674.10708201 | D | left | black grey RAL 7021 | 8 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 30 | 2,3 | 20 | 60 | | | 0.00 € | | | K1674.10710201 | D | left | black grey RAL 7021 | 10 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 30 | 2,8 | 20 | 60 | | | 0.00 € | | | K1674.10712201 | D | left | black grey RAL 7021 | 12 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 30 | 3 | 20 | 60 | | | 0.00 € | | | K1674.10704102 | D | left | orange RAL 2004 | 4 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 17 | 1 | 8 | 14 | | | 0.00 € | | | K1674.10705102 | D | left | orange RAL 2004 | 5 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 17 | 1,3 | 8 | 14 | | | 0.00 € | | | K1674.10706102 | D | left | orange RAL 2004 | 6 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 17 | 1,8 | 8 | 14 | | | 0.00 € | | | K1674.10705122 | D | left | orange RAL 2004 | 5 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 19 | 1,3 | 5 | 15 | | | 0.00 € | | | K1674.10706122 | D | left | orange RAL 2004 | 6 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 19 | 1,8 | 5 | 15 | | | 0.00 € | | | K1674.10708122 | D | left | orange RAL 2004 | 8 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 19 | 2,3 | 5 | 15 | | | 0.00 € | | | K1674.10706162 | D | left | orange RAL 2004 | 6 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 24 | 1,8 | 15 | 35 | | | 0.00 € | | | K1674.10708162 | D | left | orange RAL 2004 | 8 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 24 | 2,3 | 15 | 35 | | | 0.00 € | | | K1674.10710162 | D | left | orange RAL 2004 | 10 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 24 | 2,8 | 15 | 35 | | | 0.00 € | | | K1674.107082012 | D | left | orange RAL 2004 | 8 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 30 | 2,3 | 20 | 60 | | | 0.00 € | | | K1674.107102012 | D | left | orange RAL 2004 | 10 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 30 | 2,8 | 20 | 60 | | | 0.00 € | | | K1674.107122012 | D | left | orange RAL 2004 | 12 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 30 | 3 | 20 | 60 | | | 0.00 € | | | K1674.107041016 | D | left | colza yellow RAL 1021 | 4 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 17 | 1 | 8 | 14 | | | 0.00 € | | | K1674.107051016 | D | left | colza yellow RAL 1021 | 5 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 17 | 1,3 | 8 | 14 | | | 0.00 € | | | K1674.107061016 | D | left | colza yellow RAL 1021 | 6 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 17 | 1,8 | 8 | 14 | | | 0.00 € | | | K1674.107051216 | D | left | colza yellow RAL 1021 | 5 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 19 | 1,3 | 5 | 15 | | | 0.00 € | | | K1674.107061216 | D | left | colza yellow RAL 1021 | 6 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 19 | 1,8 | 5 | 15 | | | 0.00 € | | | K1674.107081216 | D | left | colza yellow RAL 1021 | 8 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 19 | 2,3 | 5 | 15 | | | 0.00 € | | | K1674.107061616 | D | left | colza yellow RAL 1021 | 6 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 24 | 1,8 | 15 | 35 | | | 0.00 € | | | K1674.107081616 | D | left | colza yellow RAL 1021 | 8 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 24 | 2,3 | 15 | 35 | | | 0.00 € | | | K1674.107101616 | D | left | colza yellow RAL 1021 | 10 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 24 | 2,8 | 15 | 35 | | | 0.00 € | | | K1674.1070820116 | D | left | colza yellow RAL 1021 | 8 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 30 | 2,3 | 20 | 60 | | | 0.00 € | | | K1674.1071020116 | D | left | colza yellow RAL 1021 | 10 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 30 | 2,8 | 20 | 60 | | | 0.00 € | | | K1674.1071220116 | D | left | colza yellow RAL 1021 | 12 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 30 | 3 | 20 | 60 | | | 0.00 € | | | K1674.107041084 | D | left | traffic red RAL 3020 | 4 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 17 | 1 | 8 | 14 | | | 0.00 € | | | K1674.107051084 | D | left | traffic red RAL 3020 | 5 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 17 | 1,3 | 8 | 14 | | | 0.00 € | | | K1674.107061084 | D | left | traffic red RAL 3020 | 6 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 17 | 1,8 | 8 | 14 | | | 0.00 € | | | K1674.107051284 | D | left | traffic red RAL 3020 | 5 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 19 | 1,3 | 5 | 15 | | | 0.00 € | | | K1674.107061284 | D | left | traffic red RAL 3020 | 6 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 19 | 1,8 | 5 | 15 | | | 0.00 € | | | K1674.107081284 | D | left | traffic red RAL 3020 | 8 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 19 | 2,3 | 5 | 15 | | | 0.00 € | | | K1674.107061684 | D | left | traffic red RAL 3020 | 6 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 24 | 1,8 | 15 | 35 | | | 0.00 € | | | K1674.107081684 | D | left | traffic red RAL 3020 | 8 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 24 | 2,3 | 15 | 35 | | | 0.00 € | | | K1674.107101684 | D | left | traffic red RAL 3020 | 10 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 24 | 2,8 | 15 | 35 | | | 0.00 € | | | K1674.1070820184 | D | left | traffic red RAL 3020 | 8 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 30 | 2,3 | 20 | 60 | | | 0.00 € | | | K1674.1071020184 | D | left | traffic red RAL 3020 | 10 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 30 | 2,8 | 20 | 60 | | | 0.00 € | | | K1674.1071220184 | D | left | traffic red RAL 3020 | 12 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 30 | 3 | 20 | 60 | | | 0.00 € | | | K1674.107041086 | D | left | signal green RAL 6032 | 4 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 17 | 1 | 8 | 14 | | | 0.00 € | | | K1674.107051086 | D | left | signal green RAL 6032 | 5 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 17 | 1,3 | 8 | 14 | | | 0.00 € | | | K1674.107061086 | D | left | signal green RAL 6032 | 6 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 17 | 1,8 | 8 | 14 | | | 0.00 € | | | K1674.107051286 | D | left | signal green RAL 6032 | 5 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 19 | 1,3 | 5 | 15 | | | 0.00 € | | | K1674.107061286 | D | left | signal green RAL 6032 | 6 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 19 | 1,8 | 5 | 15 | | | 0.00 € | | | K1674.107081286 | D | left | signal green RAL 6032 | 8 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 19 | 2,3 | 5 | 15 | | | 0.00 € | | | K1674.107061686 | D | left | signal green RAL 6032 | 6 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 24 | 1,8 | 15 | 35 | | | 0.00 € | | | K1674.107081686 | D | left | signal green RAL 6032 | 8 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 24 | 2,3 | 15 | 35 | | | 0.00 € | | | K1674.107101686 | D | left | signal green RAL 6032 | 10 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 24 | 2,8 | 15 | 35 | | | 0.00 € | | | K1674.1070820186 | D | left | signal green RAL 6032 | 8 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 30 | 2,3 | 20 | 60 | | | 0.00 € | | | K1674.1071020186 | D | left | signal green RAL 6032 | 10 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 30 | 2,8 | 20 | 60 | | | 0.00 € | | | K1674.1071220186 | D | left | signal green RAL 6032 | 12 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 30 | 3 | 20 | 60 | | | 0.00 € | | | K1674.107041087 | D | left | traffic blue RAL 5017 | 4 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 17 | 1 | 8 | 14 | | | 0.00 € | | | K1674.107051087 | D | left | traffic blue RAL 5017 | 5 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 17 | 1,3 | 8 | 14 | | | 0.00 € | | | K1674.107061087 | D | left | traffic blue RAL 5017 | 6 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 17 | 1,8 | 8 | 14 | | | 0.00 € | | | K1674.107051287 | D | left | traffic blue RAL 5017 | 5 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 19 | 1,3 | 5 | 15 | | | 0.00 € | | | K1674.107061287 | D | left | traffic blue RAL 5017 | 6 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 19 | 1,8 | 5 | 15 | | | 0.00 € | | | K1674.107081287 | D | left | traffic blue RAL 5017 | 8 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 19 | 2,3 | 5 | 15 | | | 0.00 € | | | K1674.107061687 | D | left | traffic blue RAL 5017 | 6 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 24 | 1,8 | 15 | 35 | | | 0.00 € | | | K1674.107081687 | D | left | traffic blue RAL 5017 | 8 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 24 | 2,3 | 15 | 35 | | | 0.00 € | | | K1674.107101687 | D | left | traffic blue RAL 5017 | 10 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 24 | 2,8 | 15 | 35 | | | 0.00 € | | | K1674.1070820187 | D | left | traffic blue RAL 5017 | 8 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 30 | 2,3 | 20 | 60 | | | 0.00 € | | | K1674.1071020187 | D | left | traffic blue RAL 5017 | 10 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 30 | 2,8 | 20 | 60 | | | 0.00 € | | | K1674.1071220187 | D | left | traffic blue RAL 5017 | 12 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 30 | 3 | 20 | 60 | | | 0.00 € | | | K1674.107041088 | D | left | light grey RAL 7035 | 4 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 17 | 1 | 8 | 14 | | | 0.00 € | | | K1674.107051088 | D | left | light grey RAL 7035 | 5 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 17 | 1,3 | 8 | 14 | | | 0.00 € | | | K1674.107061088 | D | left | light grey RAL 7035 | 6 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 17 | 1,8 | 8 | 14 | | | 0.00 € | | | K1674.107051288 | D | left | light grey RAL 7035 | 5 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 19 | 1,3 | 5 | 15 | | | 0.00 € | | | K1674.107061288 | D | left | light grey RAL 7035 | 6 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 19 | 1,8 | 5 | 15 | | | 0.00 € | | | K1674.107081288 | D | left | light grey RAL 7035 | 8 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 19 | 2,3 | 5 | 15 | | | 0.00 € | | | K1674.107061688 | D | left | light grey RAL 7035 | 6 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 24 | 1,8 | 15 | 35 | | | 0.00 € | | | K1674.107081688 | D | left | light grey RAL 7035 | 8 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 24 | 2,3 | 15 | 35 | | | 0.00 € | | | K1674.107101688 | D | left | light grey RAL 7035 | 10 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 24 | 2,8 | 15 | 35 | | | 0.00 € | | | K1674.1070820188 | D | left | light grey RAL 7035 | 8 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 30 | 2,3 | 20 | 60 | | | 0.00 € | | | K1674.1071020188 | D | left | light grey RAL 7035 | 10 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 30 | 2,8 | 20 | 60 | | | 0.00 € | | | K1674.1071220188 | D | left | light grey RAL 7035 | 12 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 30 | 3 | 20 | 60 | | | 0.00 € | | | K1674.2070410 | D | right | black grey RAL 7021 | 4 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 17 | 1 | 8 | 14 | | | 0.00 € | | | K1674.2070510 | D | right | black grey RAL 7021 | 5 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 17 | 1,3 | 8 | 14 | | | 0.00 € | | | K1674.2070610 | D | right | black grey RAL 7021 | 6 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 17 | 1,8 | 8 | 14 | | | 0.00 € | | | K1674.2070512 | D | right | black grey RAL 7021 | 5 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 19 | 1,3 | 5 | 15 | | | 0.00 € | | | K1674.2070612 | D | right | black grey RAL 7021 | 6 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 19 | 1,8 | 5 | 15 | | | 0.00 € | | | K1674.2070812 | D | right | black grey RAL 7021 | 8 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 19 | 2,3 | 5 | 15 | | | 0.00 € | | | K1674.2070616 | D | right | black grey RAL 7021 | 6 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 24 | 1,8 | 15 | 35 | | | 0.00 € | | | K1674.2070816 | D | right | black grey RAL 7021 | 8 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 24 | 2,3 | 15 | 35 | | | 0.00 € | | | K1674.2071016 | D | right | black grey RAL 7021 | 10 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 24 | 2,8 | 15 | 35 | | | 0.00 € | | | K1674.20708201 | D | right | black grey RAL 7021 | 8 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 30 | 2,3 | 20 | 60 | | | 0.00 € | | | K1674.20710201 | D | right | black grey RAL 7021 | 10 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 30 | 2,8 | 20 | 60 | | | 0.00 € | | | K1674.20712201 | D | right | black grey RAL 7021 | 12 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 30 | 3 | 20 | 60 | | | 0.00 € | | | K1674.20704102 | D | right | orange RAL 2004 | 4 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 17 | 1 | 8 | 14 | | | 0.00 € | | | K1674.20705102 | D | right | orange RAL 2004 | 5 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 17 | 1,3 | 8 | 14 | | | 0.00 € | | | K1674.20706102 | D | right | orange RAL 2004 | 6 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 17 | 1,8 | 8 | 14 | | | 0.00 € | | | K1674.20705122 | D | right | orange RAL 2004 | 5 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 19 | 1,3 | 5 | 15 | | | 0.00 € | | | K1674.20706122 | D | right | orange RAL 2004 | 6 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 19 | 1,8 | 5 | 15 | | | 0.00 € | | | K1674.20708122 | D | right | orange RAL 2004 | 8 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 19 | 2,3 | 5 | 15 | | | 0.00 € | | | K1674.20706162 | D | right | orange RAL 2004 | 6 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 24 | 1,8 | 15 | 35 | | | 0.00 € | | | K1674.20708162 | D | right | orange RAL 2004 | 8 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 24 | 2,3 | 15 | 35 | | | 0.00 € | | | K1674.20710162 | D | right | orange RAL 2004 | 10 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 24 | 2,8 | 15 | 35 | | | 0.00 € | | | K1674.207082012 | D | right | orange RAL 2004 | 8 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 30 | 2,3 | 20 | 60 | | | 0.00 € | | | K1674.207102012 | D | right | orange RAL 2004 | 10 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 30 | 2,8 | 20 | 60 | | | 0.00 € | | | K1674.207122012 | D | right | orange RAL 2004 | 12 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 30 | 3 | 20 | 60 | | | 0.00 € | | | K1674.207041016 | D | right | colza yellow RAL 1021 | 4 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 17 | 1 | 8 | 14 | | | 0.00 € | | | K1674.207051016 | D | right | colza yellow RAL 1021 | 5 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 17 | 1,3 | 8 | 14 | | | 0.00 € | | | K1674.207061016 | D | right | colza yellow RAL 1021 | 6 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 17 | 1,8 | 8 | 14 | | | 0.00 € | | | K1674.207051216 | D | right | colza yellow RAL 1021 | 5 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 19 | 1,3 | 5 | 15 | | | 0.00 € | | | K1674.207061216 | D | right | colza yellow RAL 1021 | 6 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 19 | 1,8 | 5 | 15 | | | 0.00 € | | | K1674.207081216 | D | right | colza yellow RAL 1021 | 8 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 19 | 2,3 | 5 | 15 | | | 0.00 € | | | K1674.207061616 | D | right | colza yellow RAL 1021 | 6 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 24 | 1,8 | 15 | 35 | | | 0.00 € | | | K1674.207081616 | D | right | colza yellow RAL 1021 | 8 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 24 | 2,3 | 15 | 35 | | | 0.00 € | | | K1674.207101616 | D | right | colza yellow RAL 1021 | 10 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 24 | 2,8 | 15 | 35 | | | 0.00 € | | | K1674.2070820116 | D | right | colza yellow RAL 1021 | 8 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 30 | 2,3 | 20 | 60 | | | 0.00 € | | | K1674.2071020116 | D | right | colza yellow RAL 1021 | 10 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 30 | 2,8 | 20 | 60 | | | 0.00 € | | | K1674.2071220116 | D | right | colza yellow RAL 1021 | 12 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 30 | 3 | 20 | 60 | | | 0.00 € | | | K1674.207041084 | D | right | traffic red RAL 3020 | 4 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 17 | 1 | 8 | 14 | | | 0.00 € | | | K1674.207051084 | D | right | traffic red RAL 3020 | 5 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 17 | 1,3 | 8 | 14 | | | 0.00 € | | | K1674.207061084 | D | right | traffic red RAL 3020 | 6 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 17 | 1,8 | 8 | 14 | | | 0.00 € | | | K1674.207051284 | D | right | traffic red RAL 3020 | 5 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 19 | 1,3 | 5 | 15 | | | 0.00 € | | | K1674.207061284 | D | right | traffic red RAL 3020 | 6 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 19 | 1,8 | 5 | 15 | | | 0.00 € | | | K1674.207081284 | D | right | traffic red RAL 3020 | 8 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 19 | 2,3 | 5 | 15 | | | 0.00 € | | | K1674.207061684 | D | right | traffic red RAL 3020 | 6 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 24 | 1,8 | 15 | 35 | | | 0.00 € | | | K1674.207081684 | D | right | traffic red RAL 3020 | 8 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 24 | 2,3 | 15 | 35 | | | 0.00 € | | | K1674.207101684 | D | right | traffic red RAL 3020 | 10 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 24 | 2,8 | 15 | 35 | | | 0.00 € | | | K1674.2070820184 | D | right | traffic red RAL 3020 | 8 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 30 | 2,3 | 20 | 60 | | | 0.00 € | | | K1674.2071020184 | D | right | traffic red RAL 3020 | 10 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 30 | 2,8 | 20 | 60 | | | 0.00 € | | | K1674.2071220184 | D | right | traffic red RAL 3020 | 12 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 30 | 3 | 20 | 60 | | | 0.00 € | | | K1674.207041086 | D | right | signal green RAL 6032 | 4 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 17 | 1 | 8 | 14 | | | 0.00 € | | | K1674.207051086 | D | right | signal green RAL 6032 | 5 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 17 | 1,3 | 8 | 14 | | | 0.00 € | | | K1674.207061086 | D | right | signal green RAL 6032 | 6 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 17 | 1,8 | 8 | 14 | | | 0.00 € | | | K1674.207051286 | D | right | signal green RAL 6032 | 5 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 19 | 1,3 | 5 | 15 | | | 0.00 € | | | K1674.207061286 | D | right | signal green RAL 6032 | 6 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 19 | 1,8 | 5 | 15 | | | 0.00 € | | | K1674.207081286 | D | right | signal green RAL 6032 | 8 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 19 | 2,3 | 5 | 15 | | | 0.00 € | | | K1674.207061686 | D | right | signal green RAL 6032 | 6 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 24 | 1,8 | 15 | 35 | | | 0.00 € | | | K1674.207081686 | D | right | signal green RAL 6032 | 8 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 24 | 2,3 | 15 | 35 | | | 0.00 € | | | K1674.207101686 | D | right | signal green RAL 6032 | 10 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 24 | 2,8 | 15 | 35 | | | 0.00 € | | | K1674.2070820186 | D | right | signal green RAL 6032 | 8 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 30 | 2,3 | 20 | 60 | | | 0.00 € | | | K1674.2071020186 | D | right | signal green RAL 6032 | 10 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 30 | 2,8 | 20 | 60 | | | 0.00 € | | | K1674.2071220186 | D | right | signal green RAL 6032 | 12 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 30 | 3 | 20 | 60 | | | 0.00 € | | | K1674.207041087 | D | right | traffic blue RAL 5017 | 4 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 17 | 1 | 8 | 14 | | | 0.00 € | | | K1674.207051087 | D | right | traffic blue RAL 5017 | 5 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 17 | 1,3 | 8 | 14 | | | 0.00 € | | | K1674.207061087 | D | right | traffic blue RAL 5017 | 6 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 17 | 1,8 | 8 | 14 | | | 0.00 € | | | K1674.207051287 | D | right | traffic blue RAL 5017 | 5 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 19 | 1,3 | 5 | 15 | | | 0.00 € | | | K1674.207061287 | D | right | traffic blue RAL 5017 | 6 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 19 | 1,8 | 5 | 15 | | | 0.00 € | | | K1674.207081287 | D | right | traffic blue RAL 5017 | 8 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 19 | 2,3 | 5 | 15 | | | 0.00 € | | | K1674.207061687 | D | right | traffic blue RAL 5017 | 6 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 24 | 1,8 | 15 | 35 | | | 0.00 € | | | K1674.207081687 | D | right | traffic blue RAL 5017 | 8 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 24 | 2,3 | 15 | 35 | | | 0.00 € | | | K1674.207101687 | D | right | traffic blue RAL 5017 | 10 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 24 | 2,8 | 15 | 35 | | | 0.00 € | | | K1674.2070820187 | D | right | traffic blue RAL 5017 | 8 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 30 | 2,3 | 20 | 60 | | | 0.00 € | | | K1674.2071020187 | D | right | traffic blue RAL 5017 | 10 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 30 | 2,8 | 20 | 60 | | | 0.00 € | | | K1674.2071220187 | D | right | traffic blue RAL 5017 | 12 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 30 | 3 | 20 | 60 | | | 0.00 € | | | K1674.207041088 | D | right | light grey RAL 7035 | 4 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 17 | 1 | 8 | 14 | | | 0.00 € | | | K1674.207051088 | D | right | light grey RAL 7035 | 5 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 17 | 1,3 | 8 | 14 | | | 0.00 € | | | K1674.207061088 | D | right | light grey RAL 7035 | 6 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 17 | 1,8 | 8 | 14 | | | 0.00 € | | | K1674.207051288 | D | right | light grey RAL 7035 | 5 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 19 | 1,3 | 5 | 15 | | | 0.00 € | | | K1674.207061288 | D | right | light grey RAL 7035 | 6 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 19 | 1,8 | 5 | 15 | | | 0.00 € | | | K1674.207081288 | D | right | light grey RAL 7035 | 8 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 19 | 2,3 | 5 | 15 | | | 0.00 € | | | K1674.207061688 | D | right | light grey RAL 7035 | 6 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 24 | 1,8 | 15 | 35 | | | 0.00 € | | | K1674.207081688 | D | right | light grey RAL 7035 | 8 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 24 | 2,3 | 15 | 35 | | | 0.00 € | | | K1674.207101688 | D | right | light grey RAL 7035 | 10 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 24 | 2,8 | 15 | 35 | | | 0.00 € | | | K1674.2070820188 | D | right | light grey RAL 7035 | 8 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 30 | 2,3 | 20 | 60 | | | 0.00 € | | | K1674.2071020188 | D | right | light grey RAL 7035 | 10 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 30 | 2,8 | 20 | 60 | | | 0.00 € | | | K1674.2071220188 | D | right | light grey RAL 7035 | 12 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 30 | 3 | 20 | 60 | | | 0.00 € | |
|
