DescriptionMaterial:Housing and pin stainless steel 1.4305.
Twist knob stainless steel 1.4301.
Version:Bright.Note:M2 or M3 stainless steel fastening screws are included.
Mounting option 1 for plate thickness 6 mm.
Mounting option 2 for plate thickness >6 to 14 mm.
A gap of more than 0.1 mm appears between the plates if the retaining force is exceeded.
Type of operation:Check that the twist knob is in the "OFF" position and that the pin is retracted.
Place the ball lock pin over the receiving bush or insert it. Press the twist knob down and turn it to the "ON" position.Accessory:Stainless steel locating bush with status sensor K1843.

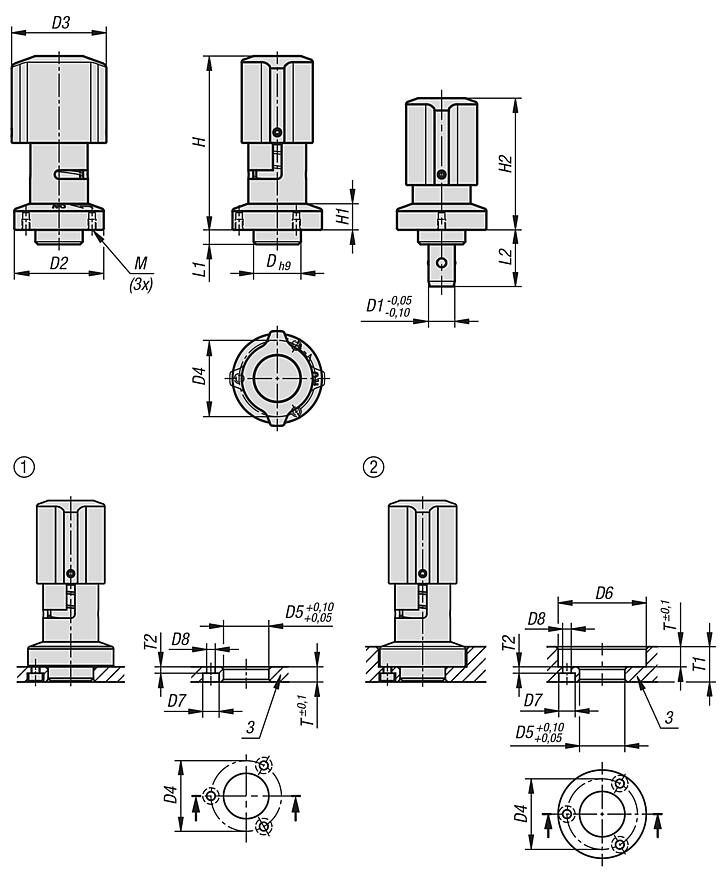

Locating bush for ball lock pin K1065.Drawing reference:1) Mounting option 1
2) Mounting option 2
3) Plate
