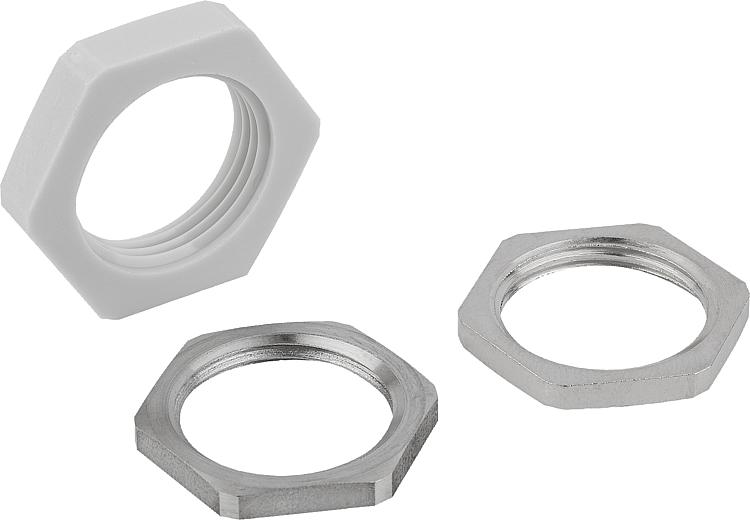

K2250Hexagon nuts for cable glands |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Polyamide (PA6).
Brass.
Stainless steel 1.4301. Version:Plastic light grey RAL 7035.
Brass nickel-plated.
Stainless steel bright.Note:DIN EN 60423 hex nuts with metric thread. For securing cable glands and accessories.Temperature range:-40 °C to +100 °C (plastic).
-60 °C to +200 °C (metal).Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | Main
material | D
| H | SW1 | Max. tightening torque
on SW1
Nm | CAD | Acc. | Price | Order |
|---|
| K2250.012150 | polyamide | M12X1,5 | 5 | 17 | 1,5 |  | | 0.00 € | | | K2250.016150 | polyamide | M16x1,5 | 5 | 22 | 2,5 | | | 0.00 € | | | K2250.020150 | polyamide | M20X1,5 | 6 | 27 | 3,5 | | | 0.00 € | | | K2250.025150 | polyamide | M25x1,5 | 6 | 32 | 5 | | | 0.00 € | | | K2250.032150 | polyamide | M32x1,5 | 7 | 41 | 5 | | | 0.00 € | | | K2250.040150 | polyamide | M40X1,5 | 7 | 50 | 7,5 | | | 0.00 € | | | K2250.11215 | brass | M12X1,5 | 2,8 | 15 | 3,5 | | | 0.00 € | | | K2250.11615 | brass | M16x1,5 | 2,8 | 19 | 3,5 | | | 0.00 € | | | K2250.12015 | brass | M20X1,5 | 3 | 24 | 3,5 | | | 0.00 € | | | K2250.12515 | brass | M25x1,5 | 3,5 | 30 | 6,7 | | | 0.00 € | | | K2250.13215 | brass | M32x1,5 | 4 | 36 | 12 | | | 0.00 € | | | K2250.14015 | brass | M40X1,5 | 5 | 46 | 13,5 | | | 0.00 € | | | K2250.21215 | stainless steel | M12X1,5 | 2,8 | 14 | 3,5 | | | 0.00 € | | | K2250.21615 | stainless steel | M16x1,5 | 2,8 | 19 | 3,5 | | | 0.00 € | | | K2250.22015 | stainless steel | M20X1,5 | 3 | 24 | 3,5 | | | 0.00 € | | | K2250.22515 | stainless steel | M25x1,5 | 3,5 | 30 | 6,7 | | | 0.00 € | | | K2250.23215 | stainless steel | M32x1,5 | 4 | 36 | 12 | | | 0.00 € | | | K2250.24015 | stainless steel | M40X1,5 | 5 | 46 | 13,5 | | | 0.00 € | |
