      - Steel plate swivel and fixed castors with polyamide wheels, heavy duty version

Item description/product images

Show/filter all items

DescriptionMaterial:Housing thick steel plate.
Wheels PA 6.Version:Housing press formed.
Swivel castor housing with strong fork and base plate, very robust centre pin bolted and secured. The swivel head is additionally reinforced with specially formed and hardened bearing shells.
Plain bearings in the wheels.Note:Wheel axle bolted. The wheels are particularly shock and impact proof and have high abrasion resistance.

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K1771 Swivel and fixed castors heavy-duty version

434 kB

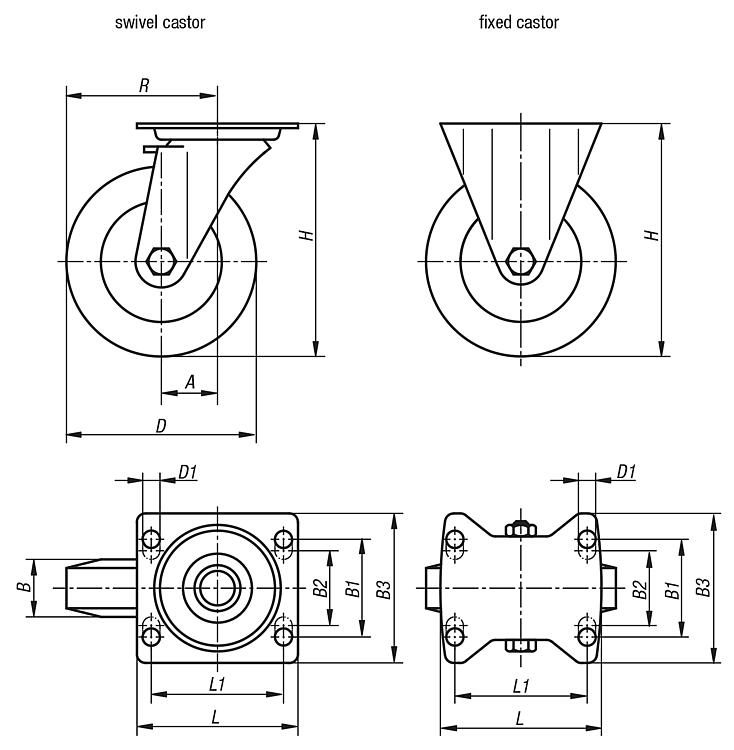

Drawings (total overview)

Steel plate fixed castors with polyamide wheels, heavy duty version

More information

Drawings

Steel plate fixed castors with polyamide wheels, heavy duty version

Item selection/filter

Order No.	Item	Version 1	Wheel bearing	B	B1	B2	B3	D	D1	H	L	L1	Permissible load kg
K1771.100371	Fixed castor	without locking system	plain bearing	37	60	-	85	100	9	140	100	80	280
K1771.125401	Fixed castor	without locking system	plain bearing	40	60	-	85	125	9	165	100	80	300
K1771.150501	Fixed castor	without locking system	plain bearing	50	80	75	110	150	11	197	140	105	400
K1771.200501	Fixed castor	without locking system	plain bearing	50	80	75	110	200	11	245	140	105	600

Steel plate swivel castors with polyamide wheels, heavy duty version

More information

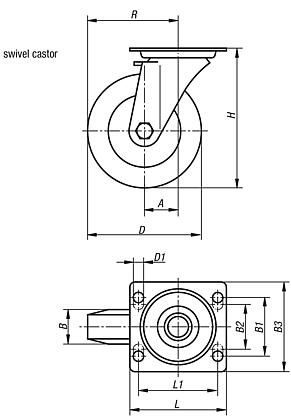

Drawings

Steel plate swivel castors with polyamide wheels, heavy duty version

Item selection/filter

Order No.	Item	Version 1	Wheel bearing	A	B	B1	B2	B3	D	D1	H	L	L1	R	Permissible load kg
K1771.10037	Swivel castor	without locking system	plain bearing	45	37	60	-	85	100	9	140	100	80	95	280
K1771.12540	Swivel castor	without locking system	plain bearing	45	40	60	-	85	125	9	165	100	80	107,5	300
K1771.15050	Swivel castor	without locking system	plain bearing	65	50	80	75	110	150	11	197	140	105	140	400
K1771.20050	Swivel castor	without locking system	plain bearing	70	50	80	75	110	200	11	245	140	105	170	600

Steel plate swivel castors with stop-top, polyamide wheels, heavy duty version

More information

Drawings

Steel plate swivel castors with stop-top, polyamide wheels, heavy duty version

Item selection/filter

Order No.	Item	Version 1	Wheel bearing	A	B	B1	B2	B3	D	D1	H	L	L1	R	Permissible load kg
K1771.100372	Swivel castor	with stop-top locking system	plain bearing	45	37	60	-	85	100	9	140	100	80	95	280
K1771.125402	Swivel castor	with stop-top locking system	plain bearing	45	40	60	-	85	125	9	165	100	80	107,5	300
K1771.150502	Swivel castor	with stop-top locking system	plain bearing	65	50	80	75	110	150	11	197	140	105	140	400
K1771.200502	Swivel castor	with stop-top locking system	plain bearing	70	50	80	75	110	200	11	245	140	105	170	600
