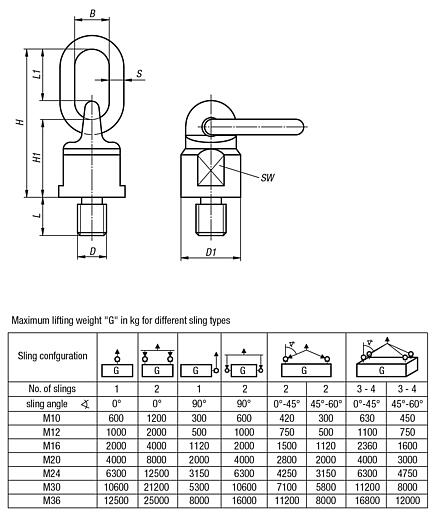

K0770Ring bolts swivel, 360° rotatable, grade 8 |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Steel.Version:Quality class 8, ball bearing;
red plastic-coatedNote:Compact and light design, full loading on all sides. 4x safety factor against breakage in all loading axis. Rotatable 360°. Link swivel range max. 180°. The ball bearing allows the ring to rotate even under load.
Lifting or securing loads, swivel rings have many uses.
For the loading capacity to be valid it must be ensured that the ring is in line with the load. The swivel face must lie flat on the support beam and the screw must always be screwed in fully.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
