K1521_EDisc handwheels, aluminium with revolving cylindrical grip, Form... |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Handwheel aluminium.
Cylinder grip and hub cover black thermoplastic.
Cylinder grip pin black oxidised steel.
ISO 4027 grub screw, steel grade 45 H, black.Version:Black or silver powder-coated.Note:Wheel rim radial and axial run-out ≤ 0.4 mm.Assembly:The hub cover and the revolving cylinder grip are supplied unassembled. To assemble, screw the grip into the tapped hole.
The handwheels can be secured to a shaft using a transverse pin or by parallel key connection together with a DIN 6912 cap screw and a handwheel washer K0173.
By the versions with transverse bore, fixation is carried out using an ISO 4027 grub screw.Accessory:K0173 Handwheel washers.
K1160 Socket head screws with low head DIN 6912.Supplied withAluminium handwheel.
Hub cover.
Revolving cylinder grip.

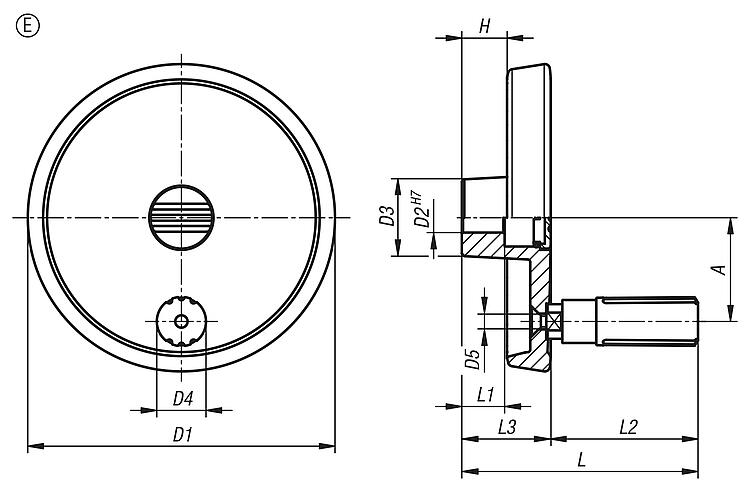

ISO 4027 grub screw (type with transverse bore).Drawing reference:1) Position of the transverse bore to the keyway is offset by 90°. DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | Main
colour | Form | Form definition | A | D1
| D2 | D3 | D4 | L1 | L3 | H | L | L2 | D5 | CAD | Acc. | Price | Order |
|---|
| K1521.080101 | black | E | with reamed hole | 27 | 80 | 10 | 26 | 13,9 | 16 | 29 | 16,6 | 68 | 39 | M4 |  | | 0.00 € | | | K1521.080121 | black | E | with reamed hole | 27 | 80 | 12 | 26 | 13,9 | 16 | 29 | 16,6 | 68 | 39 | M4 | | | 0.00 € | | | K1521.100101 | black | E | with reamed hole | 33 | 100 | 10 | 28 | 16 | 17 | 33 | 17,5 | 81 | 48 | M5 | | | 0.00 € | | | K1521.100121 | black | E | with reamed hole | 33 | 100 | 12 | 28 | 16 | 17 | 33 | 17,5 | 81 | 48 | M5 | | | 0.00 € | | | K1521.125121 | black | E | with reamed hole | 42 | 125 | 12 | 31 | 19,9 | 18 | 36 | 18,3 | 96 | 60 | M6 | | | 0.00 € | | | K1521.125141 | black | E | with reamed hole | 42 | 125 | 14 | 31 | 19,9 | 18 | 36 | 18,3 | 96 | 60 | M6 | | | 0.00 € | | | K1521.080102 | silver | E | with reamed hole | 27 | 80 | 10 | 26 | 13,9 | 16 | 29 | 16,6 | 68 | 39 | M4 | | | 0.00 € | | | K1521.080122 | silver | E | with reamed hole | 27 | 80 | 12 | 26 | 13,9 | 16 | 29 | 16,6 | 68 | 39 | M4 | | | 0.00 € | | | K1521.100102 | silver | E | with reamed hole | 33 | 100 | 10 | 28 | 16 | 17 | 33 | 17,5 | 81 | 48 | M5 | | | 0.00 € | | | K1521.100122 | silver | E | with reamed hole | 33 | 100 | 12 | 28 | 16 | 17 | 33 | 17,5 | 81 | 48 | M5 | | | 0.00 € | | | K1521.125122 | silver | E | with reamed hole | 42 | 125 | 12 | 31 | 19,9 | 18 | 36 | 18,3 | 96 | 60 | M6 | | | 0.00 € | | | K1521.125142 | silver | E | with reamed hole | 42 | 125 | 14 | 31 | 19,9 | 18 | 36 | 18,3 | 96 | 60 | M6 | | | 0.00 € | |
