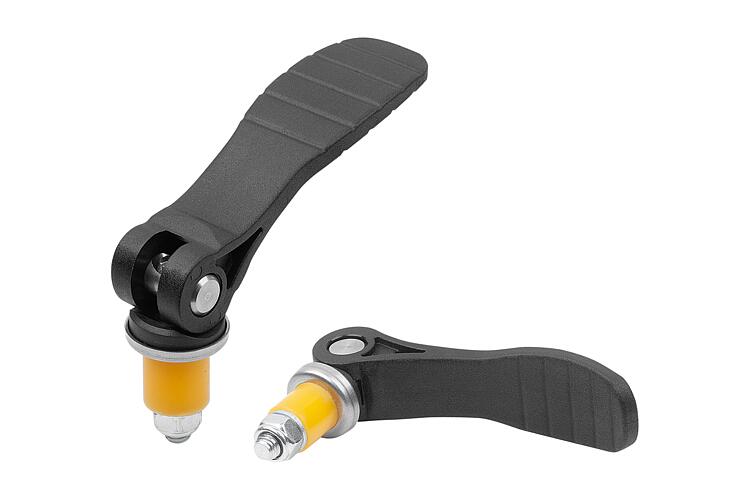

K0118Cam levers, plastic with elastomer lock, plastic thrust washer... |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Handle and thrust washer fibreglass reinforced plastic PA 66.
Hinge pin 1.4305 stainless steel.
Stud and washer steel grade 5.8.
Expanding bush PUR elastomer. Version:Handles and thrust washer black.
Hinge pins bright.

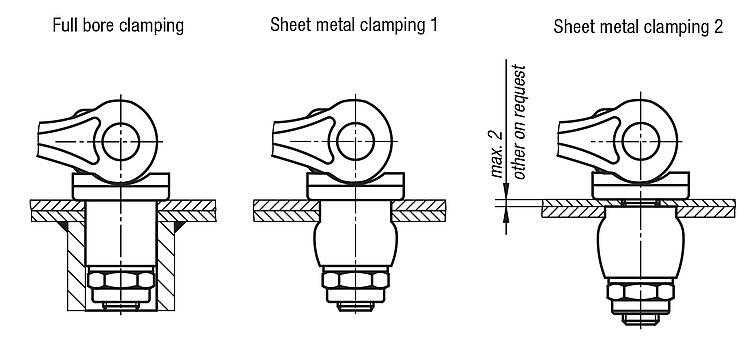

Screw, washer, locknut and thrust washer trivalent blue-passivated.Note:Actuating the handle causes the elastomer bush to expand and form to the surrounding surface.
The amount of expansion of the elastomer bush and hence the clamping force can be adjusted by tightening or loosening the locknut.
The thread lock in the nut also ensures that the preset clamping force remains unchanged when the clamp is released.Application:The specified holding forces are not suitable for constant loads.
We would be happy to supply samples to test on your application.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | D | D1 | B | B1 | H | H1 | H2 | H3 | A | A1 | SW | Clamping force ca. N
clamp bore
(no permanent load) | Clamping force ca. N
plate clamping
(no permanent load) | CAD | Acc. | Price | Order |
|---|
| K0118.121112X12 | 12 | 18,1 | 22 | 16 | 14 | 23,2 | 12,85 | 12 | 71,5 | 79,6 | 10 | 100 | 50 |  | | 0.00 € | | | K0118.121114X12 | 14 | 18,1 | 22 | 16 | 14 | 23,2 | 12,85 | 12 | 71,5 | 79,6 | 10 | 150 | 60 | | | 0.00 € | | | K0118.221116X20 | 16 | 27,1 | 33 | 24 | 16,2 | 27,8 | 14,7 | 20 | 99,9 | 110 | 13 | 350 | 60 | | | 0.00 € | | | K0118.221118X20 | 18 | 27,1 | 33 | 24 | 16,2 | 27,8 | 14,7 | 20 | 99,9 | 110 | 13 | 350 | 100 | | | 0.00 € | | | K0118.221120X20 | 20 | 27,1 | 33 | 24 | 16,2 | 27,8 | 14,7 | 20 | 99,9 | 110 | 16 | 350 | 100 | | | 0.00 € | |
