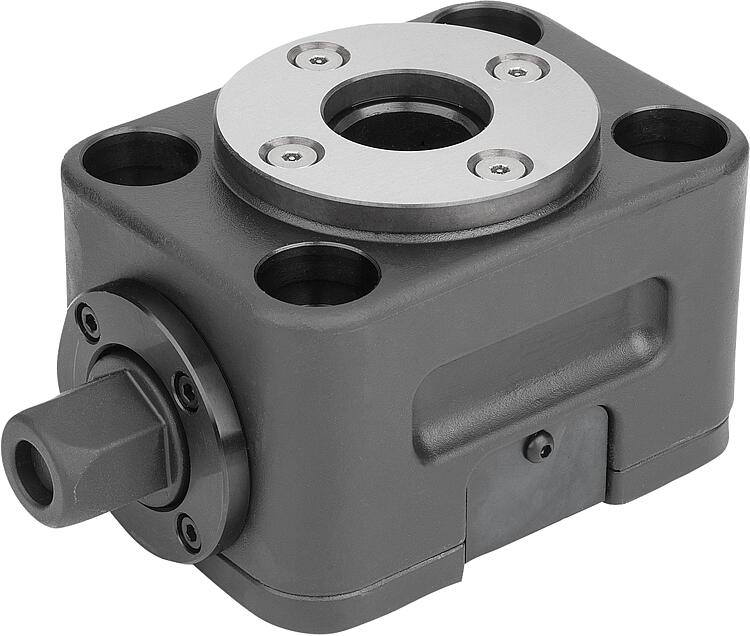

DescriptionMaterial:Carbon steel.Version:Body black oxidised. Contact face tempered and ground.Note:The repeat accuracy is ± 0.3 mm.
To remove swarf and dust, remove the two cover caps (2) and blow them out with compressed air from above.
With automated operation, e.g. using impact drivers with adjustable torque, no more than 50% of the specified maximum tightening torque or clamping force may be used for loosening and tightening.Type of operation:Actuated using an impact driver with adjustable torque or manually using a clamping key. With automated operation, e.g. using impact drivers with adjustable torque, no more than 50% of the specified maximum tightening torque or clamping force may be used for loosening and tightening.Advantages:Automation-compatible High clamping forces Rapid clampingAccessory:K2210 Clamping screw for automation capable pull clamps K2212 Extension unit.Supplied withIncluding positioning bush.Drawing reference:

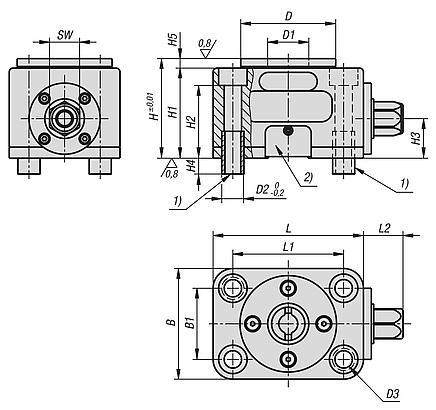

1) Positioning bushes 2) cover cap
Special features:
