UNILOCK 5-axis add-on clamping module size 80 mm

go back

Products
- Clamping technology
  - Zero Point Clamping Technology
    - 5-axis module clamping system 80
      - UNILOCK 5-axis add-on clamping module size 80 mm

Item description/product images

DescriptionMaterial:Body QT steel.
Clamping pin mild steel.Version:Body and clamping pin oxidised.

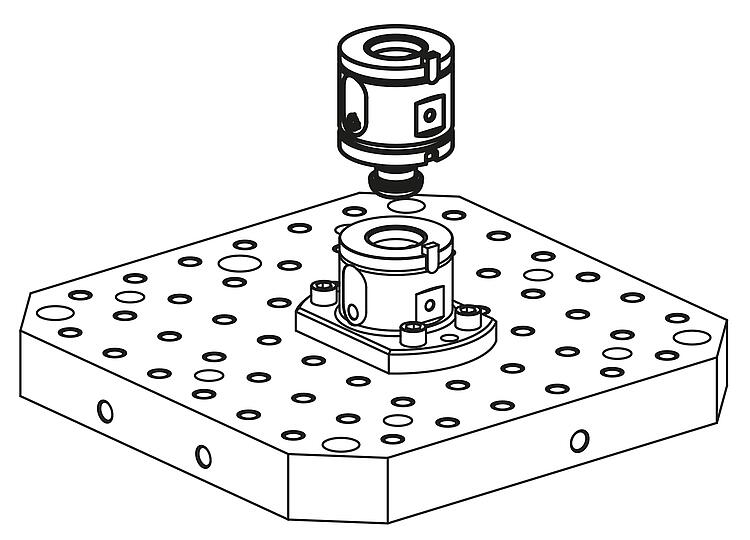

Contact faces hardened and ground.Note:The UNILOCK 5-axis add-on modules are used for raising basic modules and mounting base. Depending on the clamping situation, optimum assembly height can be achieved using a combination of the basic module and add-on module.On request:With rotation lockSpecial features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K0963 UNILOCK 5-axis add-on clamping module size 80 mm

244 kB

Technical information for 5-axis module clamping system 80

7,3 MB

Drawings

Item selection/filter

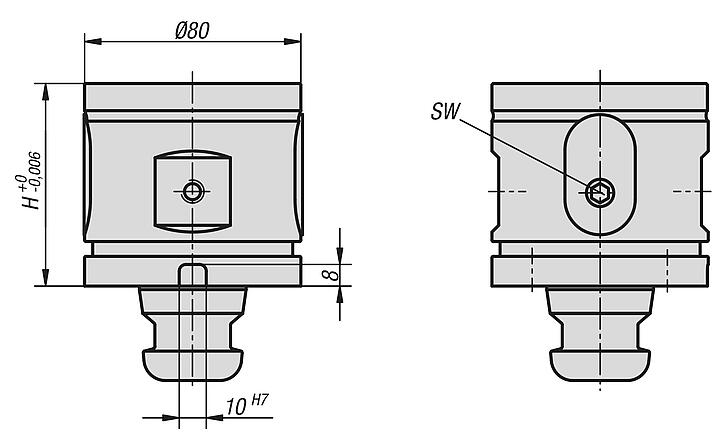

Order No.	Form definition	H	SW	Tightening torque max. Nm	Retraction force kN	weight kg
K0963.120750	without rotation lock	75	6	15	15	2,64
K0963.121000	without rotation lock	100	6	15	15	3,78
K0963.121250	without rotation lock	125	6	15	15	4,625
