Spacing washers

go back

Products
- Clamping technology
  - Modular Clamping Technology
    - Fastener elements, accessories
      - Spacing washers

Item description/product images

DescriptionMaterial:Carbon steel.Version:Tempered, black oxidised.

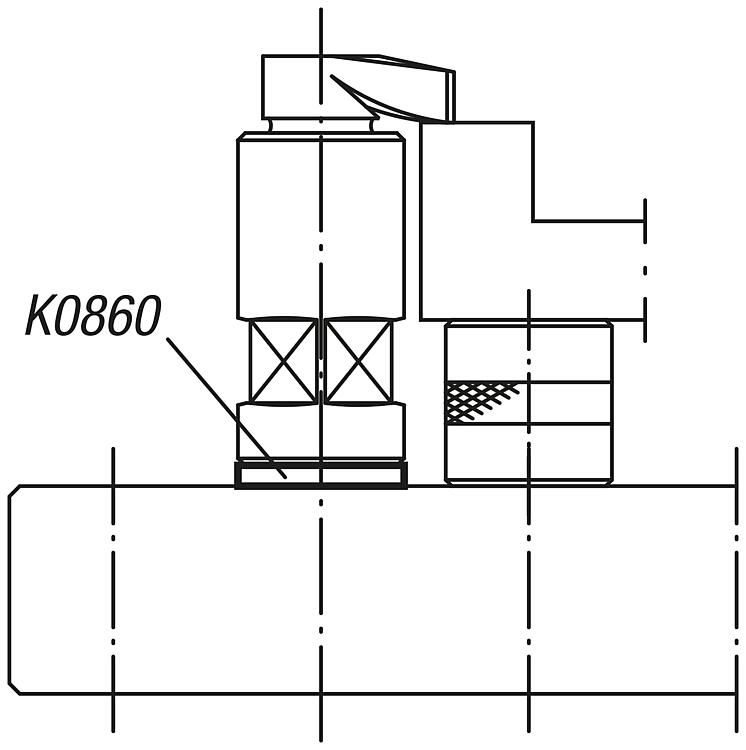

Contact faces ground.Note:The spacing washer is used to alter the clamping range of hook clamps and hook holders. When a spacing washer is inserted between the base and the hook holder or riser cylinder it prevents damage to the support face.

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K0860 Spacing washers

175 kB

Drawings

Item selection/filter

Order No.	D1	D2	H
K0860.08003	9	24	3
K0860.08005	9	24	5
K0860.08008	9	24	8
K0860.12001	12,5	40	1
K0860.12003	12,5	40	3
K0860.12005	12,5	40	5
K0860.16001	16,5	50	1
K0860.16003	16,5	50	3
K0860.16005	16,5	50	5
K0860.16105	16,5	60	5
