Seating ledges

go back

Products
- Clamping technology
  - Vice Clamping Technology
    - 3-axis clamping system 5-axis clamping system
      - Seating ledges

Item description/product images

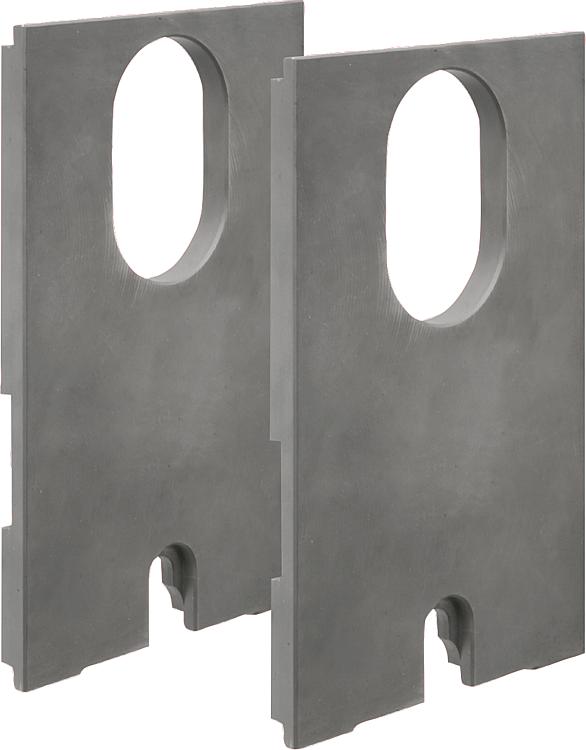

DescriptionMaterial:Steel.Version:Hardened and bright.Note:If the riser plates K0941 are used to raise the height, the seating ledges must be changed to suit.

*Including 12 jaw pins K0946.05600.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K0942 Seating ledges

149 kB

Drawings

Item selection/filter

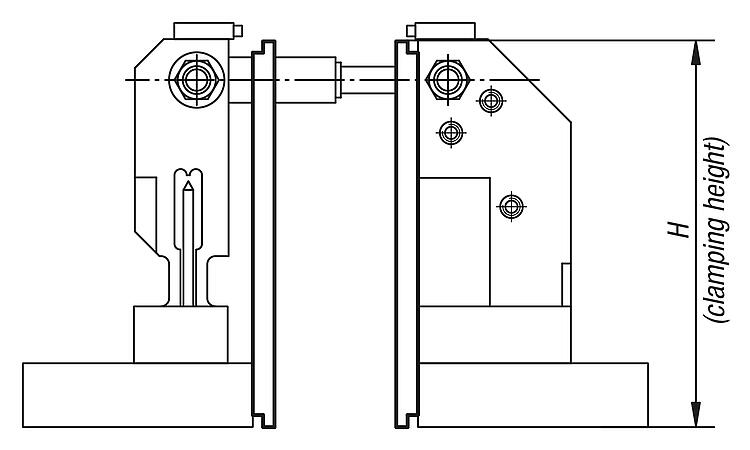

Order No.	H	Suitable for
K0942.100	100	3-axis vice basic set
K0942.105*	105	3-axis vice basic set
K0942.125	125	3-axis vice with 25 mm riser plate
K0942.150	150	3-axis vice with 50 mm riser plate
K0942.175	175	5-axis vice basic set
K0942.180*	180	5-axis vice basic set
K0942.200	200	5-axis vice with 25 mm riser plate
K0942.225	225	5-axis vice with 50 mm riser plate
K0942.250	250	5-axis vice with 75 mm riser plate (25 + 50)
