K0472Tube clamps cross stainless steel |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Investment cast 1.4308 stainless steel.
ISO 4762 cap screw and ISO 4032 hex nut, stainless steel.
From ø30 mm ISO 4017 hex head bolt, stainless steel. Note:The tube clamps with diameters 30 and 40 mm have a silicone sleeve that protects the thread of the hex head screw from contamination and damage.On request:Clamping levers for tightening.Accessory:- Round and square tubes K0493Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

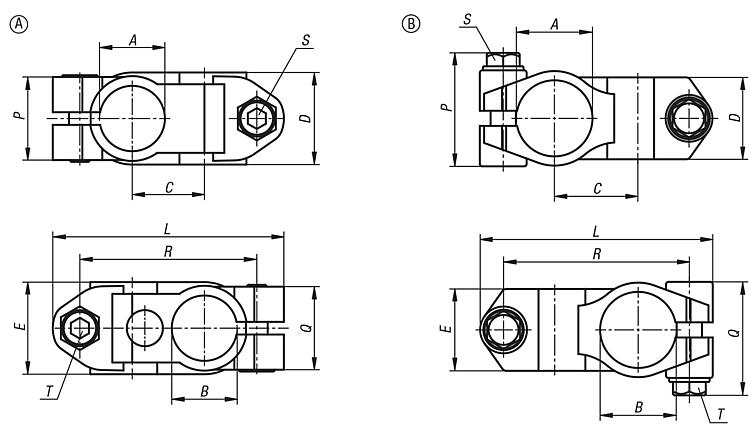

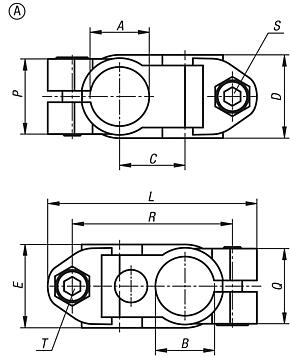

Drawings (total overview) |
| Order No. | Form | A | B | C | D
| E | L | P | Q | R | S | T | CAD | Acc. | Price | Order |
|---|
| K0472.11212 | A | 12,1 | 12,1 | 20 | 25,5 | 25,5 | 64 | 23 | 23 | 49 | M6x18 | M6x18 |  | | 0.00 € | | | K0472.11414 | A | 14,1 | 14,1 | 20 | 25,5 | 25,5 | 64 | 23 | 23 | 49 | M6x18 | M6x18 | | | 0.00 € | | | K0472.11616 | A | 16,1 | 16,1 | 20 | 25,5 | 25,5 | 64 | 23 | 23 | 49 | M6x18 | M6x18 | | | 0.00 € | | | K0472.11818 | A | 18,1 | 18,1 | 20 | 25,5 | 25,5 | 64 | 23 | 23 | 49 | M6x18 | M6x18 | | | 0.00 € | | | K0472.12020 | A | 20,1 | 20,1 | 21 | 25,5 | 25,5 | 64 | 23 | 23 | 49 | M6x18 | M6x18 | | | 0.00 € | |
|
| Order No. | Form | A | B | C | D
| E | L | P | Q | R | S | T | CAD | Acc. | Price | Order |
|---|
| K0472.13030 | B | 30,1 | 30,1 | 33 | 32,4 | 32,4 | 92 | 45.5 | 45.5 | 73,5 | M8x30 | M8x30 | | | 0.00 € | | | K0472.14040 | B | 40,17 | 40,17 | 42 | 40,4 | 40,4 | 118 | 52 | 52 | 95,5 | M10x35 | M10x35 | | | 0.00 € | |
|
