Locating pins with flattened ball-end Form C

go back

Products
- Operating parts | standard elements
  - Support elements, locating elements, stop elements
    - Locating pins, rest pads
      - Locating pins with flattened ball-end Form C

Item description/product images

DescriptionMaterial:

Tool steel or 1.4305 stainless steel.

Version:Steel hardened and ground.
Stainless steel ground and kolsterised.Note:Ball end locating pins are specially designed to ease the locating process. The tendency to jam, caused by the locating hole not being at right angles to the pin or by the pushing force not being parallel to the pin axis, is minimized by the ball-end form (see illustration 1)Drawing reference:

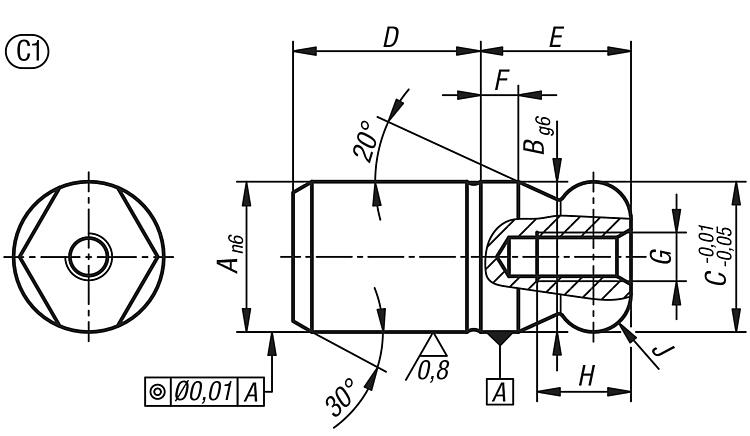

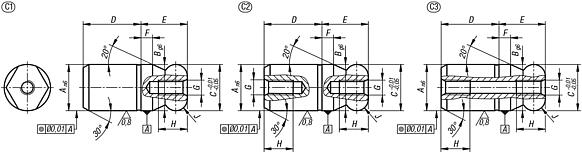

1) Internal thread one side in blind hole

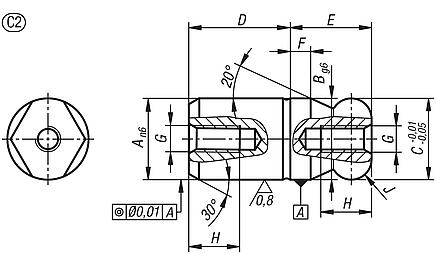

2) Internal thread both sides in blind holes
3) Internal thread both sides in through hole

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K0350 Locating pins with flattened ball-end Form C

236 kB

Drawings (total overview)

Locating pins with ball end Form C, internal thread one side in blind hole

More information

Drawings

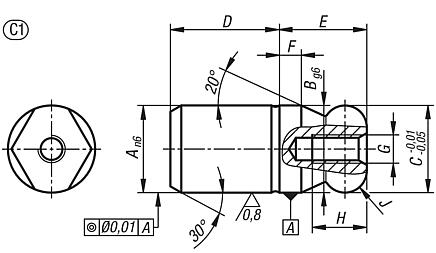

Locating pins with ball end Form C, internal thread one side in blind hole

Item selection/filter

Order No.	Material	Size	A	B	C	D	E	F	G	H	J	Threaded core hole	Price
K0350.052	tool steel	1	5	5	5	6	5	2	M2,5	4,5	R 1	Blind hole	on request
K0350.062	tool steel	1	6	6	6	8	6	2	M3	5	R 1	Blind hole	on request
K0350.082	tool steel	1	8	8	8	10	8	2	M3	6	R 2	Blind hole	on request
K0350.102	tool steel	1	10	10	10	13	10	2,5	M3	6	R 2,5	Blind hole	on request
K0350.122	tool steel	1	12	12	12	15	12	3	M4	8	R 3	Blind hole	on request
K0350.142	tool steel	1	14	14	14	17	14	3,5	M4	8	R 3,5	Blind hole	on request
K0350.162	tool steel	1	16	16	16	20	16	4	M5	10	R 4	Blind hole	on request
K0350.202	tool steel	1	20	20	20	25	20	5	M5	10	R 5	Blind hole	on request
K0350.252	tool steel	1	25	25	25	25	25	6	M5	10	R 6	Blind hole	on request
K0350.302	tool steel	1	30	30	30	30	30	8	M6	12	R 8	Blind hole	on request
K0350.402	tool steel	1	40	40	40	40	40	10	M6	12	R 10	Blind hole	on request
K0350.502	tool steel	1	50	50	50	50	50	12	M6	12	R 12	Blind hole	on request
K0350.5052	stainless steel	1	5	5	5	6	5	2	M2,5	4,5	R 1	Blind hole	on request
K0350.5062	stainless steel	1	6	6	6	8	6	2	M3	5	R 1	Blind hole	on request
K0350.5082	stainless steel	1	8	8	8	10	8	2	M3	6	R 2	Blind hole	on request
K0350.5102	stainless steel	1	10	10	10	13	10	2,5	M3	6	R 2,5	Blind hole	on request
K0350.5122	stainless steel	1	12	12	12	15	12	3	M4	8	R 3	Blind hole	on request
K0350.5142	stainless steel	1	14	14	14	17	14	3,5	M4	8	R 3,5	Blind hole	on request
K0350.5162	stainless steel	1	16	16	16	20	16	4	M5	10	R 4	Blind hole	on request
K0350.5202	stainless steel	1	20	20	20	25	20	5	M5	10	R 5	Blind hole	on request
