UNILOCK clamping pin system size 138 mm
 K1424

UNILOCK clamping pin system size 138 mm

 go back

Item description/product images
DescriptionMaterial:Steel.Version:Main body black oxide finish.
Contact faces hardened and ground.Note:The UNILOCK clamping pins are suitable for clamping and positioning workpieces and fixtures. The clamping pins are screwed onto the exchange element.On request:Other versions.Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
Datasheet K1424 UNILOCK clamping pin system size 138 mm 415 kB
Technical information for 5-axis module clamping system 138 491 kB

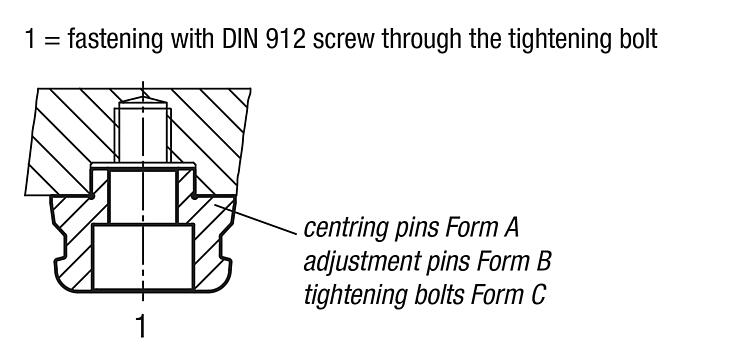

Drawings

UNILOCK clamping pin system size 138 mm

Item selection/filter
Order No.FormD

D1D2HTCADAcc.PriceOrder
K1424.168381025A3825379,524,5 on request
K1424.268381025B3825379,524,5 on request
K1424.368381025C3825379,524,5 on request
