Item description/product images |
|
|

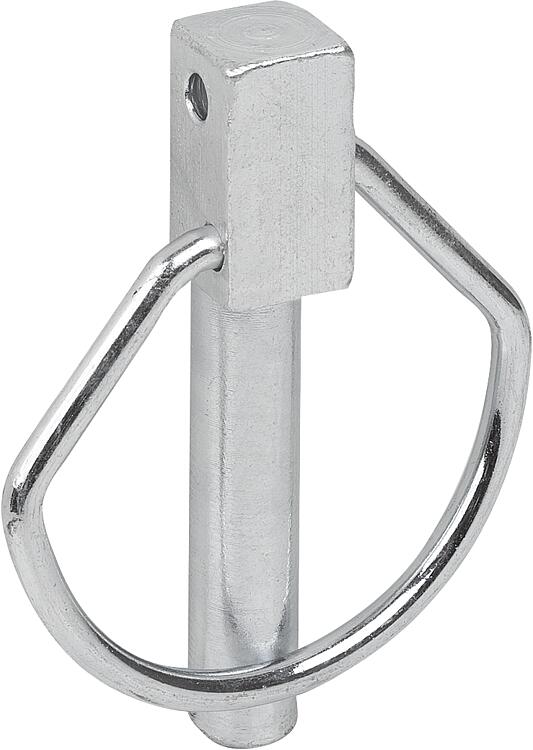

DescriptionMaterial:Steel.Version:Steel electro zinc-plated.Note:Linch pins are used to e.g. secure bolts, tubes and shafts. Linch pins can be manually installed and removed without extra tools in the shortest time.

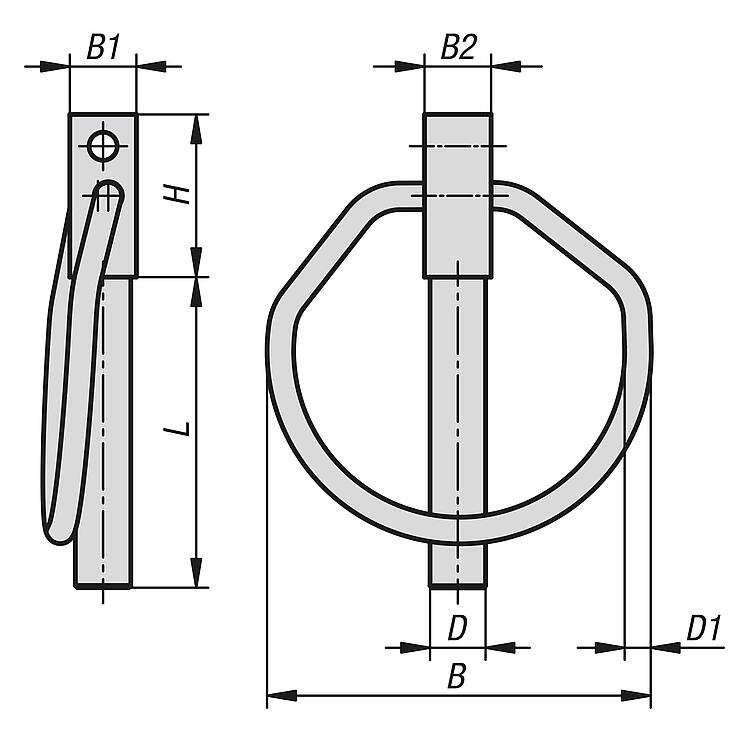

The appearance of the linch pins may differ from those shown in the drawing and illustration.
The nominal size 21x45 is preferred for connecting parts of three-point mounted appliances.
For dimension B max. it must be possible to flip the spring clip over the axle or shaft without hindrance.
DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | Nominal size | D | L | B
max. | B1
max. | B2
max. | D1
min. | H
max.
| CAD | Acc. | Price | Order |
|---|
| K2014.05X32 | 5x32 | 4,5 +0,3/-0,2 | 32 | 36 | 11,5 | 7 | 2,5 | 18 |  | | on request | | | K2014.06X42 | 6x42 | 5,5 +0,3/-0,2 | 42 | 52 | 14 | 8 | 3,6 | 22 | | | on request | | | K2014.08X42 | 8x42 | 7,5 +0,3/-0,2 | 42 | 52 | 15 | 9 | 3,6 | 22 | | | on request | | | K2014.10X45 | 10x45 | 9,5 +0,3/-0,2 | 45 | 52 | 15 | 12 | 3,6 | 22 | | | on request | | | K2014.12X45 | 12x45 | 11 ±0,5 | 45 | 52 | 15 | 14 | 3,6 | 22 | | | on request | | | K2014.12X55 | 12x55 | 11 ±0,5 | 55 | 60 | 15 | 14 | 4 | 22 | | | on request | |
